SMAT: Staged Multi-Agent Training for Co-Adaptive Exoskeleton Control

📝 Paper Summary

Human-Robot Interaction Exoskeleton Control Sim-to-Real Reinforcement Learning

SMAT uses a four-stage curriculum to train human and exoskeleton agents sequentially—stabilizing the human's gait before introducing robotic assistance—to solve the non-stationary co-adaptation problem.

Core Problem

Exoskeleton assistance is a non-stationary learning problem: as the device learns to assist, the human user simultaneously adapts their motor control, destabilizing the training environment for the robot.

Why it matters:

Simultaneous joint optimization without structure leads to instability, oscillatory torque outputs, and poorly timed assistance
Existing RL approaches do not explicitly model the sequential nature of human motor adaptation (learning to walk, then adapting to weight, then adapting to force)
Poor co-adaptation results in increased metabolic cost rather than the intended physical augmentation

Concrete Example: If a hip exoskeleton and a human model train simultaneously from scratch (Stage 4 only), the exoskeleton exploits the human's instability by learning to output near-zero torque to minimize energy penalties, resulting in an 83% reduction in assistive torque compared to the staged approach.

Key Novelty

Staged Multi-Agent Training (SMAT)

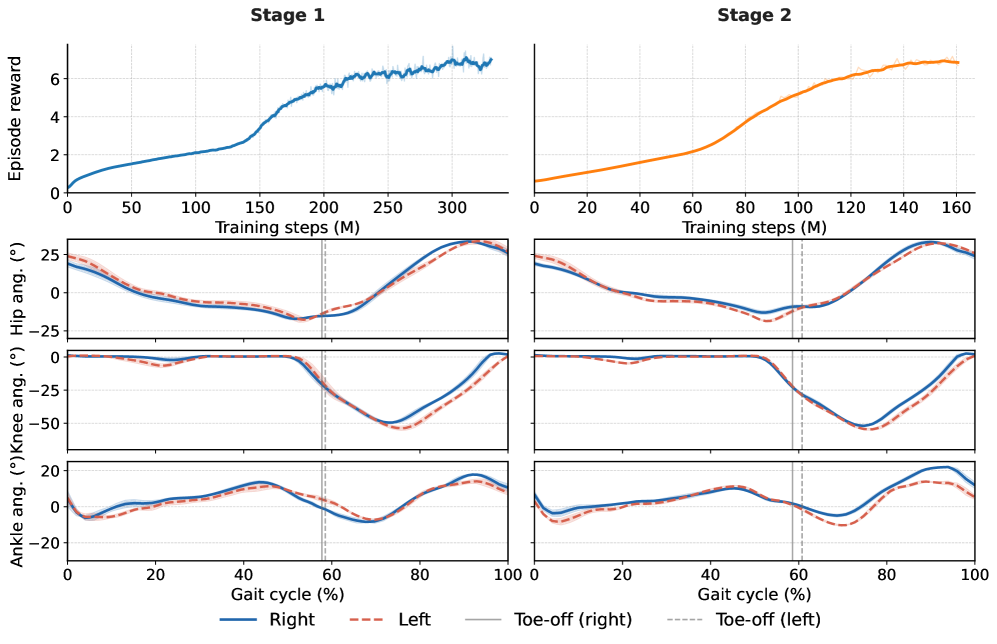

Decomposes the co-adaptation problem into four sequential stages: (1) Human learns to walk, (2) Human adapts to device mass, (3) Exoskeleton learns assistance on frozen human, (4) Joint co-adaptation.
Uses a 'frozen agent' strategy where one partner's policy is fixed while the other learns, preventing the 'moving target' problem inherent in simultaneous multi-agent learning.

Evaluation Highlights

10.1% average reduction in hip muscle activation across 26 simulated muscles compared to the unassisted condition
Achieved 23.8 W mean positive power at 9.3 Nm RMS torque in real-world treadmill experiments with 5 subjects
Zero-shot generalization across walking speeds (0.6, 1.2, 1.8 m/s) using only hip kinematic inputs, maintaining consistent peak assistive torque

Breakthrough Assessment

8/10

Strong methodological contribution applying curriculum MARL to biomechanics. The 4-stage breakdown offers a logical solution to the co-adaptation instability problem, backed by both sim and real-world human validation.

⚙️ Technical Details

Problem Definition

Setting: Multi-Agent Reinforcement Learning (MARL) in a physics-based musculoskeletal simulation (MyoAssist)

Inputs: Human: Musculoskeletal body state (joint angles, velocities, muscle states). Exoskeleton: History of hip angles, velocities, and previous torque actions.

Outputs: Human: 26 muscle activations. Exoskeleton: Normalized hip torque commands.

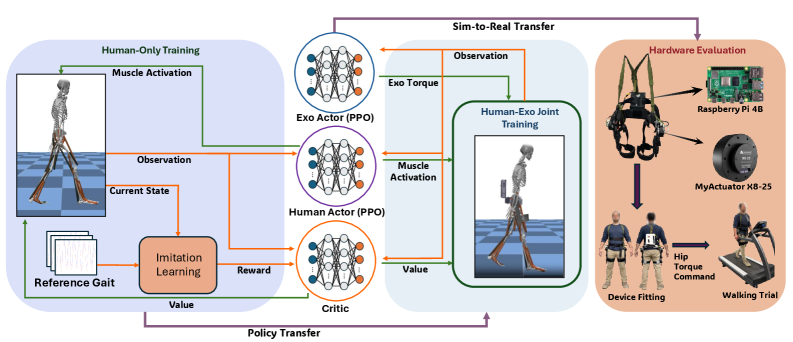

Pipeline Flow

Human Actor (Musculoskeletal Model)
Exoskeleton Actor (Controller)
Physics Environment (MyoAssist)

System Modules

Human Actor (Agents)

Controls 26 muscles to generate gait

Model or implementation: MLP [256, 128]

Exoskeleton Actor (Agents)

Generates assistive hip torques

Model or implementation: MLP [128, 64]

Shared Critic

Estimates value function for PPO updates

Model or implementation: MLP [256, 128]

Novel Architectural Elements

Stage-dependent input augmentation: Human actor input expands in Stage 4 to include exoskeleton torque feedback, initialized with random weights while preserving pre-trained gait weights

Modeling

Base Model: Custom MLP policies (Human: [256, 128], Exo: [128, 64])

Training Method: Staged Multi-Agent Reinforcement Learning using PPO

Objective Functions:

Purpose: Mimic reference gait (Stages 1-2).

Formally: R_track = exp(-w * ||v - v*||^2) (simplified)
Purpose: Encourage assistive timing (Stage 3).

Formally: Reward positive power (torque * velocity > 0) and high torque usage
Purpose: Optimize metabolic cost and smoothness (Stage 4).

Formally: R_exo = alpha * (torque * velocity) - beta * ||torque||^2 - penalty for rapid changes

Key Hyperparameters:

clip_epsilon: 0.2
learning_rate: 3e-5 (Actor), 1e-4 (Critic)
gamma: 0.99
+ 3 more
gae_lambda: 0.95
batch_size: 2048
control_timestep: 0.02s

Compute: Intel Xeon W-2145 (8-core), ~28h for 100M steps

Comparison to Prior Work

vs. Simultaneous MARL: SMAT freezes one agent while the other learns in Stages 1-3 to prevent non-stationarity
vs. Classical Control: SMAT is data-driven and adaptive, not relying on fixed impedance or oscillator rules
vs. Human-in-the-loop Optimization: SMAT pre-trains in simulation to avoid safe-ty constraints and long training times required for real-time human optimization [not cited in paper]

Limitations

Hardware validation limited to 5 healthy subjects walking on a treadmill
Assumes specific musculoskeletal model fidelity; sim-to-real gap may persist
Requires sequential training which may be computationally longer than single-stage methods (though converges faster to useful policies)
Limited to sagittal plane hip assistance

Reproducibility

Code: https://github.com/...

Code availability stated as 'publicly available upon acceptance' (not currently linked). Simulation environment is open source (MyoAssist). Hardware is custom-built but specifications (MyActuator X8-25) are provided.

📊 Experiments & Results

Evaluation Setup

Simulation (MyoAssist) and Real-world Treadmill Walking

Benchmarks:

Musculoskeletal Simulation (Gait generation and assistance)
Hardware Treadmill (Physical walking with exoskeleton) [New]

Metrics:

Hip muscle activation (simulation)
Assistive Mechanical Power (W)
Root Mean Square (RMS) Torque (Nm)
Training convergence/stability
Statistical methodology: Means and standard deviations reported; specific significance tests not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
Simulation results show significant reduction in muscle activation compared to unassisted walking.
Musculoskeletal Simulation	Avg Hip Muscle Activation Reduction	1.00	0.899	-0.101
Musculoskeletal Simulation	Rectus Femoris Activation Reduction	1.00	0.865	-0.135
Hardware validation confirms the controller delivers substantial positive mechanical power.
Hardware Treadmill	Mean Positive Power (15Nm limit)	0.0	23.8	+23.8
Hardware Treadmill	Mean Positive Power (10Nm limit)	0.0	13.6	+13.6

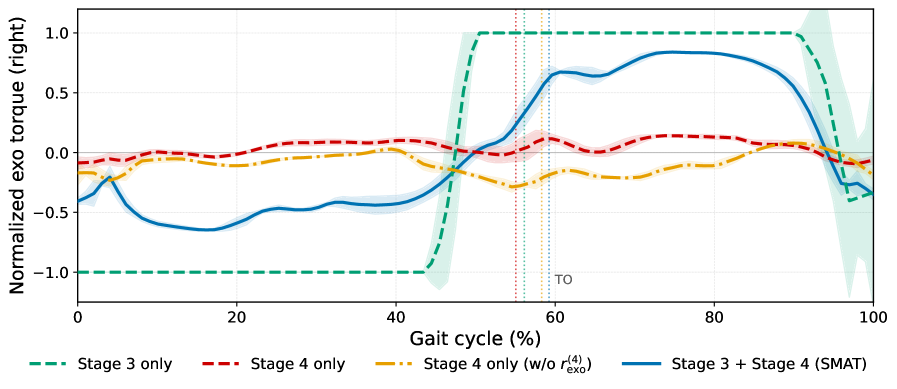

Ablation studies demonstrate that both Stage 3 (pre-training) and Stage 4 (co-adaptation) are critical.
Musculoskeletal Simulation	Peak Normalized Torque	0.84	0.14	-0.70

Main Takeaways

Staged training prevents the 'lazy agent' problem where the exoskeleton learns to do nothing to avoid penalties (Stage 4 only ablation)
Co-adaptation (Stage 4) is necessary to refine timing; Stage 3 alone produces saturated, unsafe impulsive torques
The learned policy generalizes well to different walking speeds (0.6 - 1.8 m/s) without explicit speed inputs, suggesting robust feature extraction from kinematic history
Muscle activation reductions are asymmetric: larger reductions in flexors (Rectus Femoris -13.5%) than extensors (Gluteus Maximus -6.6%), reflecting the assistance strategy

📚 Prerequisite Knowledge

Prerequisites

Reinforcement Learning (Actor-Critic, PPO)
Biomechanics (Gait cycle, muscle activation)
Control Theory (Torque control, co-adaptation)

Key Terms

MARL: Multi-Agent Reinforcement Learning—training multiple agents (here, human and robot) to interact in a shared environment

Co-adaptation: The process where two agents (human and exoskeleton) mutually adjust their behaviors in response to each other

Musculoskeletal simulation: A physics-based computational model simulating human bones, joints, and muscle dynamics

Non-stationary: A learning environment where the state distribution changes over time (e.g., because the other agent is changing its policy)

PPO: Proximal Policy Optimization—a reinforcement learning algorithm that updates policies with clipped constraints to ensure stability

RMS torque: Root Mean Square torque—a measure of the average magnitude of torque applied over a period

Sim-to-real: Transferring a policy learned in a computer simulation to physical hardware

Gait cycle: One complete sequence of walking functions, typically measured from heel strike to heel strike (0-100%)

Ablation: Removing a component of the system (e.g., a training stage) to test its specific contribution to the result
