Long-Short Term Agents for Pure-Vision Bronchoscopy Robotic Autonomy

📝 Paper Summary

Robotic Surgery Autonomy Imitation Learning for Control Multi-Agent Hierarchical Control

A vision-only hierarchical control system for robotic bronchoscopy that combines a fast reactive agent for continuous motion with a slow strategic agent (using LLMs) for complex decision points, achieving expert-level navigation without external tracking sensors.

Core Problem

Robotic bronchoscopy navigation typically relies on complex external hardware (electromagnetic tracking) prone to registration errors and interference, or fails over long horizons due to the lack of distinctive visual landmarks in the bronchial tree.

Why it matters:

External tracking hardware increases cost, complexity, and setup time in clinical workflows
Registration divergence between preoperative CT and intraoperative anatomy (due to breathing) causes navigation failure in current systems
Existing vision-only methods struggle with long-horizon tasks in deformable, repetitive environments like the lungs, limiting autonomy to short segments

Concrete Example: In a deep airway bifurcation filled with mucus, a standard visual servoing agent gets confused by the visual artifact and repetitive texture, failing to choose the correct branch. The proposed system uses a 'Strategic Agent' to recognize the ambiguity and query a large multimodal model for high-level semantic guidance, correcting the path.

Key Novelty

Hierarchical Long-Short Term Multi-Agent Framework

Decomposes navigation into two agents: a high-frequency 'Short-term Reactive Agent' that handles immediate visual alignment and motion, and a sparse 'Long-term Strategic Agent' that intervenes at bifurcations or ambiguities.
Integrates a 'World Model Critic' that resolves conflicts between agents by simulating future video frames for candidate actions and selecting the one that best matches the virtual target view.
Eliminates the need for electromagnetic sensors by relying entirely on a sequence of virtual views rendered from preoperative CT scans as the navigation reference.

Evaluation Highlights

Achieved 100% success rate (7/7 targets) in live porcine models, matching the terminal reach of senior bronchoscopists.
Maintained >80% navigation success rate up to the 8th bronchial generation in ex vivo porcine lungs, significantly outperforming standard visual navigation baselines.
Reduced control actions by ~20% compared to expert manual teleoperation in phantom trials (275.8 vs 346.8), indicating smoother, more efficient trajectories.

Breakthrough Assessment

8/10

Demonstrates convincing sim-to-real transfer in a highly complex medical domain (live animal bronchoscopy) without external sensors. The hierarchical agent design effectively bridges the gap between low-level control and high-level reasoning.

⚙️ Technical Details

Problem Definition

Setting: Vision-based robotic navigation in a tubular, deformable environment (bronchial tree) using a predefined virtual path.

Inputs: Live endoscopic video stream I_t and a sequence of virtual target views {V_1, ..., V_N} derived from preoperative CT.

Outputs: Continuous kinematic control commands (translation, bending) a_t to align I_t with current target V_k.

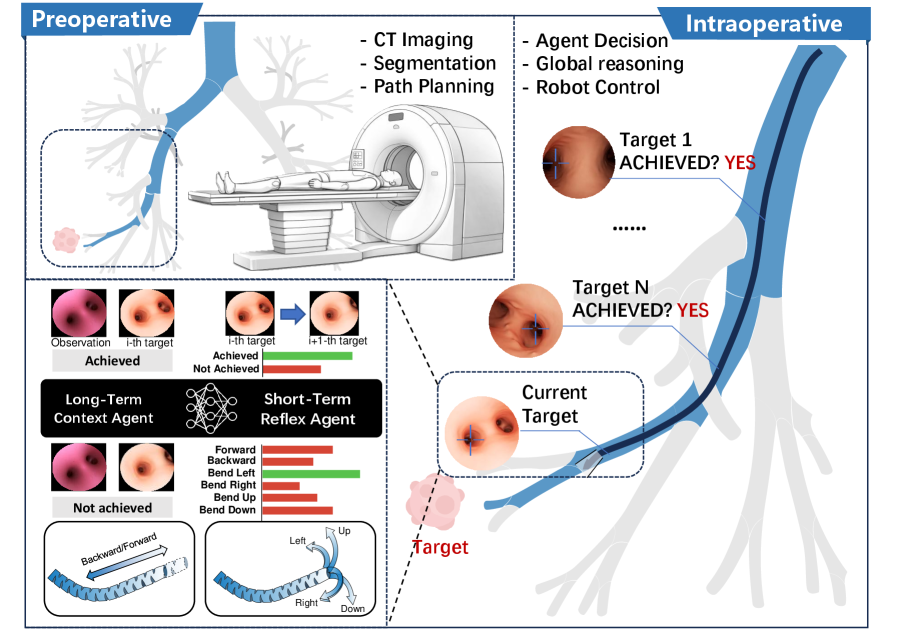

Pipeline Flow

Preoperative Planning (CT segmentation & Path Generation)
Short-term Reactive Agent (Continuous Control)
Long-term Strategic Agent (Sparse Intervention)
Conflict Resolution (World Model Critic)

System Modules

Short-term Reactive Agent

Generate high-frequency motion commands to align live video with the current virtual sub-target.

Model or implementation: EfficientNet-B0 backbone + Decoder-only Transformer

Long-term Strategic Agent

Provide high-level guidance at ambiguous points (e.g., bifurcations) or when triggered by anomalies.

Model or implementation: Hybrid: Pre-operative geometric guidance + Large Multimodal Model (LLM)

World Model Critic

Resolve conflicts when Reactive and Strategic agents disagree.

Model or implementation: Predictive video generation model

Novel Architectural Elements

Hierarchical consensus mechanism where a 'World Model' acts as a critic to arbitrate between a fast reactive policy and a slow semantic/geometric planner based on predicted visual outcomes.

Modeling

Base Model: EfficientNet-B0 (Visual Encoder), Transformer (Policy Decoder)

Training Method: Imitation Learning (Behavioral Cloning)

Objective Functions:

Purpose: Minimize difference between predicted action and expert action.

Formally: Cross-entropy loss on expert demonstrations.

Key Hyperparameters:

inference_latency: 6 ms
safety_execution_window: 3 seconds per step (imposed)

Compute: Inference takes 6 ms per step (excluding safety delays).

Comparison to Prior Work

vs. GNM/ViNT: Uses a hierarchical structure with a strategic agent (LLM + geometric) to handle long-horizon ambiguity, whereas baselines are purely reactive and fail deep in the lungs.
vs. Standard Clinical Systems (EM tracking): Pure vision approach requiring no external sensors or registration markers, avoiding hardware interference and registration divergence.

Limitations

Dependency on accurate preoperative CT segmentation; significant anatomical changes (e.g., large tumors, collapsed lung) might invalidate the virtual plan.
Vision-based navigation fails if the camera is completely obscured by blood or mucus for extended periods.
Execution speed is artificially capped (3s/step) for safety; real-time continuous motion requires further safety verification.
Strategic agent relies on LLM calls which can introduce latency.

Reproducibility

No code or model weights provided. The paper relies on proprietary/custom medical datasets (CT scans, phantom data, porcine models) not publicly released.

📊 Experiments & Results

Evaluation Setup

Navigation through bronchial airways in three environments: rigid phantom, ex vivo porcine lungs, and live in vivo porcine model.

Benchmarks:

High-fidelity Airway Phantom (Navigation to 17 segmental targets) [New]
Ex vivo Porcine Lungs (Navigation in unstructured biological tissue) [New]
In vivo Porcine Model (Live navigation under respiration) [New]

Metrics:

Success Rate (%)
Bronchial Generation Reached
Number of Actions
Total Time (s)
Visual Alignment (SSIM)
Spatial Accuracy (Euclidean distance via CBCT)
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ

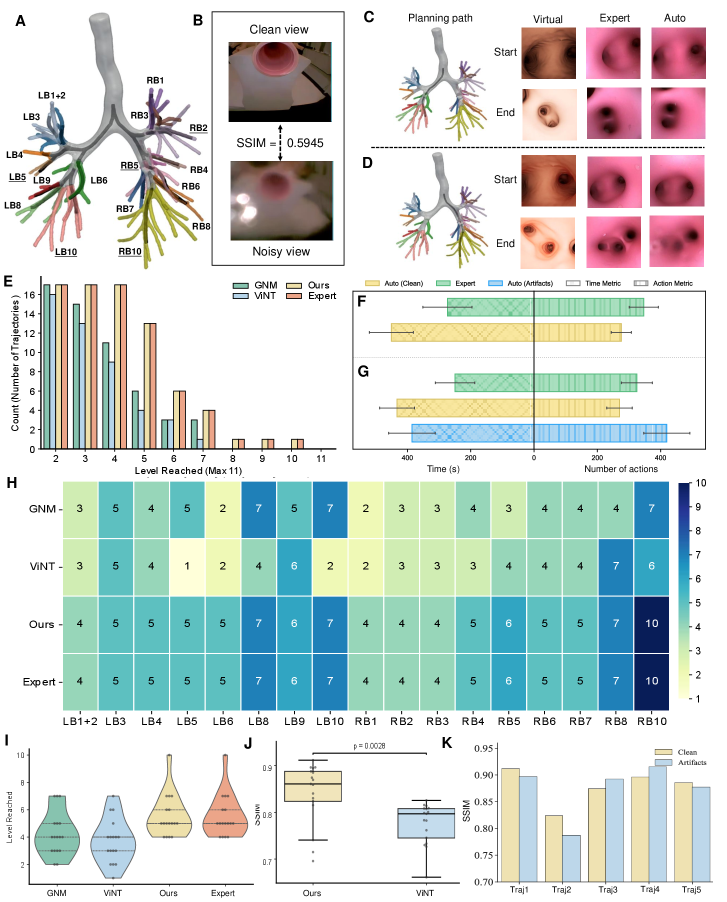

Phantom experiments comparing the proposed method against expert teleoperation and visual navigation baselines (GNM, ViNT).
High-fidelity Airway Phantom	Mean Bronchial Generation Reached	3.65	5.53	+1.88
High-fidelity Airway Phantom	Number of Actions	346.8	275.8	-71.0
High-fidelity Airway Phantom	Visual Alignment (SSIM)	0.776	0.841	+0.065

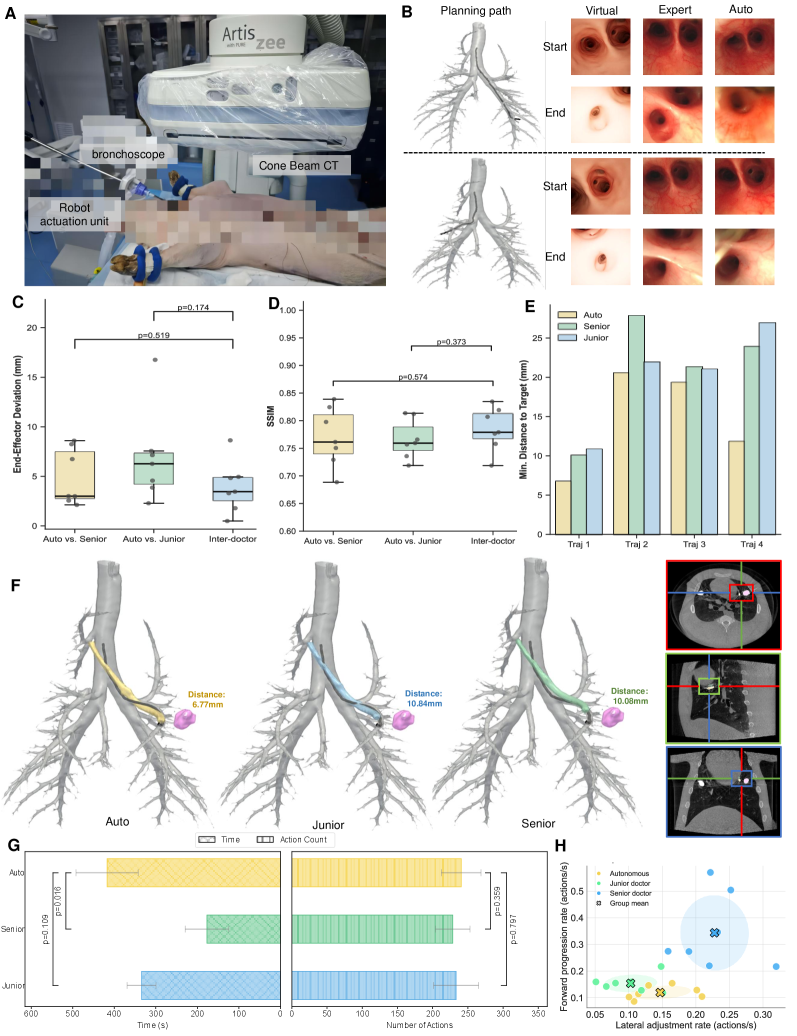

Live animal validation (in vivo) comparing autonomy against senior and junior bronchoscopists.
In vivo Porcine Model	Success Rate	100	100	0
In vivo Porcine Model	Spatial Error (mm) vs Expert Target	3.92	4.90	+0.98
In vivo Porcine Model	Total Navigation Time (s)	176.7	417.1	+240.4

Main Takeaways

Vision-only autonomy is feasible for deep bronchial navigation, matching expert success rates in live subjects.
The hierarchical 'Long-Short' agent design is critical: the reactive agent handles routine motion efficiently, while the strategic agent prevents failure at bifurcations where baselines (ViNT) fail.
Robustness to visual artifacts (mucus, fluid) is achieved through the strategic agent's ability to recover using high-level reasoning, though it increases procedure time.
Autonomous navigation exhibits less 'hesitation' (redundant actions) than human teleoperation, resulting in more direct kinematic paths.

📚 Prerequisite Knowledge

Prerequisites

Basic understanding of robotic kinematics and visual servoing
Familiarity with imitation learning and behavioral cloning
Knowledge of bronchoscopy procedures and anatomical challenges (bifurcations, respiratory motion)

Key Terms

Bronchoscopy: A medical procedure to look inside the lungs' airways using a flexible tube with a camera

Electromagnetic tracking (EM): A common localization method using magnetic fields to track instrument position, often used as a ground truth or auxiliary system in surgery

Sim-to-real: Transferring a robot policy trained in simulation (or controlled environments) to the real world

Visual Servoing: Controlling a robot's motion using feedback from a vision sensor to align with a target image

LPIPS: Learned Perceptual Image Patch Similarity—a metric used to measure how similar two images appear to a human, often better than pixel-wise differences

SSIM: Structural Similarity Index Measure—a metric for measuring image quality/similarity based on luminance, contrast, and structure

CBCT: Cone Beam CT—a type of X-ray imaging used intraoperatively to verify the robot's position inside the body

World Model: A predictive model that simulates how the environment (next video frame) will change in response to a robot's action

EfficientNet-B0: A specific convolutional neural network architecture optimized for efficiency and accuracy, used here as the visual backbone

Transformer: A neural network architecture based on attention mechanisms, used here to process sequences of visual features
