Point3R: Streaming 3D Reconstruction with Explicit Spatial Pointer Memory

📝 Paper Summary

Dense 3D Reconstruction Streaming/Online Perception Spatial Memory Mechanisms

Point3R enables efficient streaming 3D reconstruction by maintaining an explicit memory of 3D spatial pointers that dynamically aggregates features from incoming frames without global optimization.

Core Problem

Existing methods for multi-view dense reconstruction either require computationally expensive global optimization (reprocessing all frames) or use limited-capacity implicit memories that lose information from earlier frames.

Why it matters:

Real-world embodied agents require streaming perception to respond to surroundings in real-time, which global optimization methods cannot support.
Implicit memory approaches (like fixed-length tokens) suffer from forgetting and redundancy as the sequence length increases, degrading reconstruction quality over time.
Current pair-wise methods (like DUSt3R) are inefficient for multi-view settings because they require a separate post-hoc global alignment step.

Concrete Example: When a robot explores a large building, implicit memory methods like CUT3R eventually fill their fixed token buffer, forcing them to discard early room data. Point3R assigns a 3D pointer to every explored location, so the memory grows naturally with the scene size, preventing forgetting of the starting location.

Key Novelty

Explicit Spatial Pointer Memory

Instead of storing abstract features, the memory consists of '3D pointers'—explicit 3D coordinates coupled with spatial features—that map directly to physical locations in the scene.
New observations are fused into this memory based on spatial proximity; if a new point is near an existing pointer, their features are aggregated; if not, a new pointer is created.
A 3D hierarchical position embedding (extending RoPE to 3D) injects relative spatial information into the attention mechanism, guiding how current image tokens interact with stored memory pointers.

Architecture

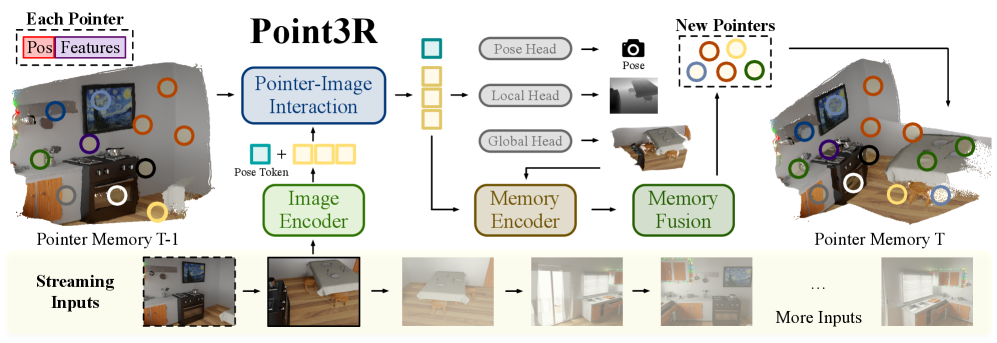

The overall pipeline of Point3R, illustrating how image tokens interact with the spatial pointer memory and how the memory is updated.

Evaluation Highlights

Achieves state-of-the-art performance on ScanNet reconstruction, effectively handling long sequences where fixed-memory baselines fail.
Training requires only 8 A800 GPUs for 15 days, which is noted as a low cost compared to similar large-scale reconstruction models.
Generalizes across 14 diverse datasets (indoor/outdoor, static/dynamic) without scene-specific optimization.

Breakthrough Assessment

8/10

Significantly improves the efficiency and scalability of neural 3D reconstruction by replacing global attention with a spatially-aware streaming memory, solving the 'forgetting' problem in long sequences.

⚙️ Technical Details

Problem Definition

Setting: Streaming dense 3D reconstruction from an ordered sequence of images

Inputs: A sequence of images I ∈ R^{N × H × W × 3}

Outputs: Per-frame pointmaps X ∈ R^{N × H × W × 3} in a unified global coordinate system and camera poses

Pipeline Flow

Image Encoder (ViT) → Feature Extraction
Initialization (Frame 0) OR Interaction (Frame t > 0)
Interaction Decoders (Cross-attention between Image Tokens and Memory Pointers)
Prediction Heads (Pointmaps & Poses)
Memory Update (Encoder & Fusion)

System Modules

Image Encoder

Extracts features from the current input image

Model or implementation: ViT-Large

Interaction Decoders

Enables interaction between current image features and the spatial pointer memory using cross-attention

Model or implementation: ViT-Base (2 intertwined decoders)

Prediction Heads

Predicts dense geometry and camera pose

Model or implementation: DPT (Dense Prediction Transformer) heads + MLP for pose

Memory Encoder & Fusion

Converts current predictions into new 3D pointers and fuses them into the existing memory

Model or implementation: Lightweight ViT (6 blocks) + MLP

Novel Architectural Elements

Explicit Spatial Pointer Memory: Stores (3D position, feature) tuples rather than just abstract tokens.
3D Hierarchical Position Embedding: Extends RoPE to 3D space with multiple frequency bases to handle varying scales in the interaction decoder.
Dynamic Memory Fusion Mechanism: Updates memory by averaging features of spatially close points instead of simple concatenation or FIFO buffering.

Modeling

Base Model: ViT-Large (Image Encoder), ViT-Base (Decoders)

Training Method: Supervised training on large-scale dataset collection

Objective Functions:

Purpose: Minimize error in predicted camera pose.

Formally: L2 norm loss on translation and quaternion rotation.
Purpose: Minimize error in predicted pointmaps weighted by confidence.

Formally: L_conf(X, X_GT, C) (Confidence-aware regression loss)

Training Data:

Combination of 14 datasets including ARKitScenes, ScanNet, CO3Dv2, MegaDepth, etc.
Training involves sampling 5 frames per sequence (Stage 1) then 8 frames (Stage 3)

Key Hyperparameters:

optimizer: AdamW
learning_rate: 5e-5 (max, cosine schedule)
memory_feature_dim: 768
+ 1 more
batch_size: Not reported in the paper

Compute: 8 A800 NVIDIA GPUs for 15 days

Comparison to Prior Work

vs. DUSt3R: Point3R is a streaming framework that doesn't require a separate global alignment optimization step.
vs. Spann3R: Uses explicit 3D spatial pointers instead of implicit feature history, reducing redundancy.
vs. CUT3R: Memory grows with the scene (spatial) rather than being fixed-length (temporal), preventing information loss in long sequences.
+ 1 more
vs. SplaTAM [not cited in paper]: Point3R is a generalizable feed-forward network, whereas SplaTAM requires test-time optimization (SLAM) for 3D Gaussian Splatting.

Limitations

Dependency on the accuracy of the first frame's coordinate system as the global reference.
Potential memory growth in extremely large-scale scenes, although fusion mechanism mitigates this.
Assumes some spatial overlap or proximity between consecutive frames for the position embedding prior (though interaction helps mitigate this).

Reproducibility

Code: https://github.com/YkiWu/Point3R

Code is publicly available at https://github.com/YkiWu/Point3R. Pre-trained weights for sub-modules come from DUSt3R. Detailed implementation of the 3D position embedding is in supplementary material.

📊 Experiments & Results

Evaluation Setup

Dense 3D reconstruction, depth estimation, and pose estimation across various datasets.

Benchmarks:

ScanNet (Indoor 3D Reconstruction)
ScanNet++ (Indoor 3D Reconstruction)
7-Scenes (Camera Pose Estimation)
Bontar (Dynamic Scene Reconstruction)

Metrics:

ATE (Absolute Trajectory Error)
AbsRel (Absolute Relative Error for depth)
F-score (Geometry quality)
Accuracy (Acc)
Statistical methodology: Not explicitly reported in the paper

Experiment Figures

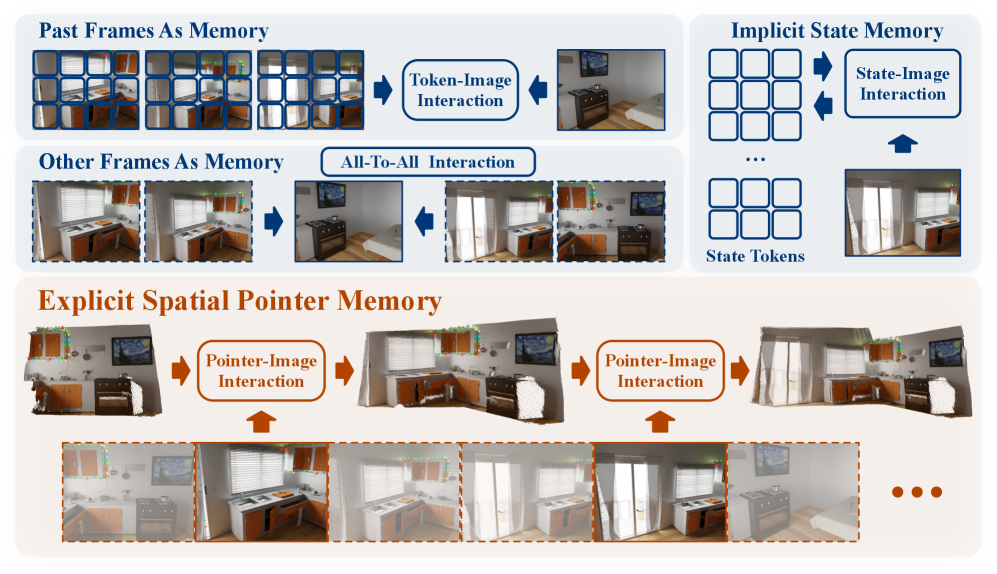

Conceptual comparison of memory mechanisms: (a) Implicit Memory (Spann3R), (b) Fixed-length Token Memory (CUT3R), and (c) Explicit Spatial Pointer Memory (Point3R).

Main Takeaways

Point3R outperforms implicit memory methods (Spann3R, CUT3R) on long-sequence reconstruction by maintaining spatial context.
The explicit spatial memory allows the model to handle dynamic scenes effectively by updating spatial features at specific locations.
The method achieves competitive results with pair-wise methods (DUSt3R) while being significantly more efficient due to the streaming nature (avoiding N^2 matching or global optimization).

📚 Prerequisite Knowledge

Prerequisites

Transformer architectures (Vision Transformers)
3D Geometry (coordinate systems, triangulation, intrinsics)
Neural 3D Reconstruction pipelines

Key Terms

Pointmap: A dense representation where every pixel in an image is mapped to a 3D coordinate (X, Y, Z) in space.

RoPE: Rotary Position Embedding—a technique to encode relative positions in Transformers by rotating query and key vectors.

DUSt3R: A baseline method that reconstructs 3D scenes by directly regressing pointmaps from image pairs without explicit camera parameters.

DPT: Dense Prediction Transformer—a vision transformer architecture designed for dense prediction tasks like depth estimation.

ViT: Vision Transformer—a model architecture that processes images as sequences of patches (tokens) using self-attention.

SfM: Structure-from-Motion—a photogrammetry range imaging technique for estimating three-dimensional structures from two-dimensional image sequences.

SLAM: Simultaneous Localization and Mapping—the computational problem of constructing or updating a map of an unknown environment while simultaneously keeping track of an agent's location within it.
