3D Reconstruction with Spatial Memory

📝 Paper Summary

Dense 3D Reconstruction Incremental/Online Reconstruction Memory-augmented Neural Networks

Spann3R converts a pairwise 3D reconstruction model into a real-time incremental system by using a spatial memory to preserve global geometry across frames without optimization.

Core Problem

State-of-the-art dense reconstruction methods like DUSt3R operate on image pairs and require slow, offline global optimization to align predictions, preventing real-time or incremental use.

Why it matters:

Traditional pipelines (SfM/SLAM) are brittle and complex, requiring separate steps for matching, triangulation, and bundle adjustment.
Current deep learning alternatives (DUSt3R) are robust but computationally heavy and non-sequential, limiting applications in robotics or AR that need on-the-fly geometry.

Concrete Example: When DUSt3R reconstructs a video, it treats every image pair independently in local coordinates, then runs a global optimization (bundle adjustment) to align them. This takes minutes. Spann3R tracks geometry in memory, predicting the next frame correctly aligned immediately.

Key Novelty

Spann3R (Spatial Memory for 3D Reconstruction)

Maintains an external 'Spatial Memory' that stores geometric features from previous frames, acting as a global coordinate reference.
Uses a transformer-based query mechanism to retrieve relevant past 3D information for the current frame, aligning it 'on-the-fly' like a spanner tightening bolts.
Separates memory into 'Working Memory' (recent frames, dense) and 'Long-term Memory' (consolidated/sparsified), mimicking human memory models to stay efficient.

Architecture

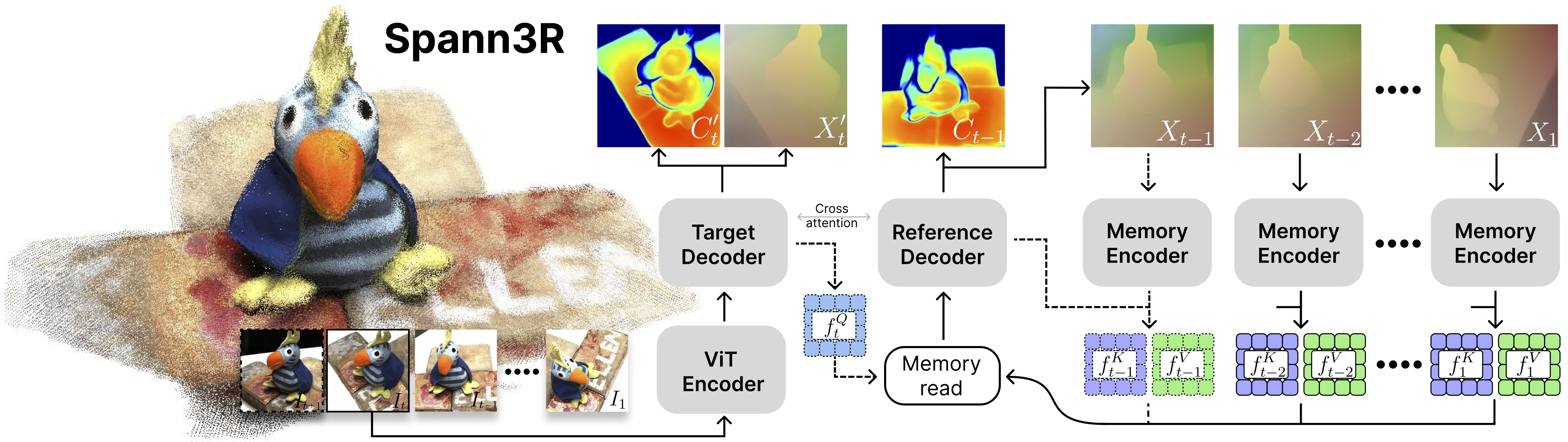

The Spann3R inference pipeline showing how images are processed into pointmaps using spatial memory.

Evaluation Highlights

Achieves real-time online incremental reconstruction at over 50 frames per second (fps) without test-time optimization.
Demonstrates competitive reconstruction quality on unseen datasets (7Scenes, NRGBD, DTU) compared to offline optimization-based methods like FrozenRecon and DUSt3R.
Successfully processes both ordered video sequences and unordered image collections (via graph-based ordering).

Breakthrough Assessment

8/10

Significant architectural leap: successfully converts a pairwise, offline foundational model (DUSt3R) into a real-time, sequential system via memory mechanisms, maintaining robustness while gaining speed.

⚙️ Technical Details

Problem Definition

Setting: Incremental dense 3D reconstruction from a sequence of images

Inputs: Sequence of images {I_t}, previous query state

Outputs: Pointmap X_t for each image expressed in the global coordinate system of the first frame

Pipeline Flow

Image Encoder (ViT)
Memory Retrieval (Cross-Attention)
Decoder (Pointmap Regression)
Memory Update (Write/Sparsify)

System Modules

Image Encoder

Extract visual features from the current frame

Model or implementation: ViT-Large (pre-trained from DUSt3R)

Memory Query (Memory Mechanism)

Retrieve relevant geometric context from spatial memory using the previous frame's query features

Model or implementation: Cross-Attention with MLP heads

Dual Decoders

Predict the pointmap and generate query features for the next step

Model or implementation: Two intertwined ViT-base decoders (Reference and Target)

Memory Manager (Memory Mechanism)

Update working and long-term memory with new predictions

Model or implementation: Similarity-based gating and Sparsification

Novel Architectural Elements

Global-coordinate regression via Spatial Memory transformer (replacing offline optimization)
Dual-decoder repurposing: one for reconstruction, one for memory query generation
Hybrid Working/Long-term memory management adapted for 3D geometry

Modeling

Base Model: DUSt3R (ViT-Large encoder, ViT-Base decoders)

Training Method: Supervised training on video sequences with curriculum learning

Objective Functions:

Purpose: Regress accurate 3D point positions weighted by predicted confidence.

Formally: L_conf (Confidence-aware regression loss)
Purpose: Encourage correct scale of the predicted scene.

Formally: L_scale (Scale loss ensuring average distance matches ground truth)

Training Data:

Subset of datasets: Habitat, ScanNet, ScanNet++, ARKitScenes, BlendedMVS, Co3D-v2
Sequences of 5 frames sampled per video

Key Hyperparameters:

learning_rate: 5e-5
optimizer: AdamW
batch_size: 16 (effective)
+ 5 more
epochs: 120
image_resolution: 224x224
memory_attention_dropout: 0.15
working_memory_similarity_threshold: 0.95
attention_clipping_threshold: 5e-4

Compute: Training: ~10 days on 8 NVIDIA V100 GPUs (32GB). Inference: Real-time (>50 FPS) on single NVIDIA 4090.

Comparison to Prior Work

vs. DUSt3R: Spann3R is online/incremental (50fps) vs. offline (minutes), replacing optimization with memory attention.
vs. FrozenRecon: Spann3R is end-to-end and works on unconstrained scenes, not just indoor.
vs. SLAM methods: Spann3R does not require explicit camera calibration or tracking priors; it regresses geometry directly.

Limitations

Accumulates drift over long sequences due to lack of global bundle adjustment loop.
Training resolution limited to 224x224 due to compute constraints, affecting fine detail (thin structures).
Sensitive to strong specular reflections which can cause inaccurate predictions and tracking failure.

Reproducibility

Code: https://hengyiwang.github.io/projects/spanner

Project page provided (https://hengyiwang.github.io/projects/spanner). Training requires significant GPU resources (8x V100 for 10 days). Inference fits on consumer card (RTX 4090). Relies on DUSt3R pre-trained weights.

📊 Experiments & Results

Evaluation Setup

Dense 3D reconstruction on unseen datasets (zero-shot generalization)

Benchmarks:

7Scenes (Indoor scene reconstruction)
NRGBD (Object/Scene reconstruction)
DTU (Object-centric reconstruction)

Metrics:

Accuracy (Acc)
Completion (Comp)
Normal Consistency (NC)
Frames Per Second (FPS)
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
Video Sequences	FPS	Not reported in the paper	50	Not reported in the paper

Experiment Figures

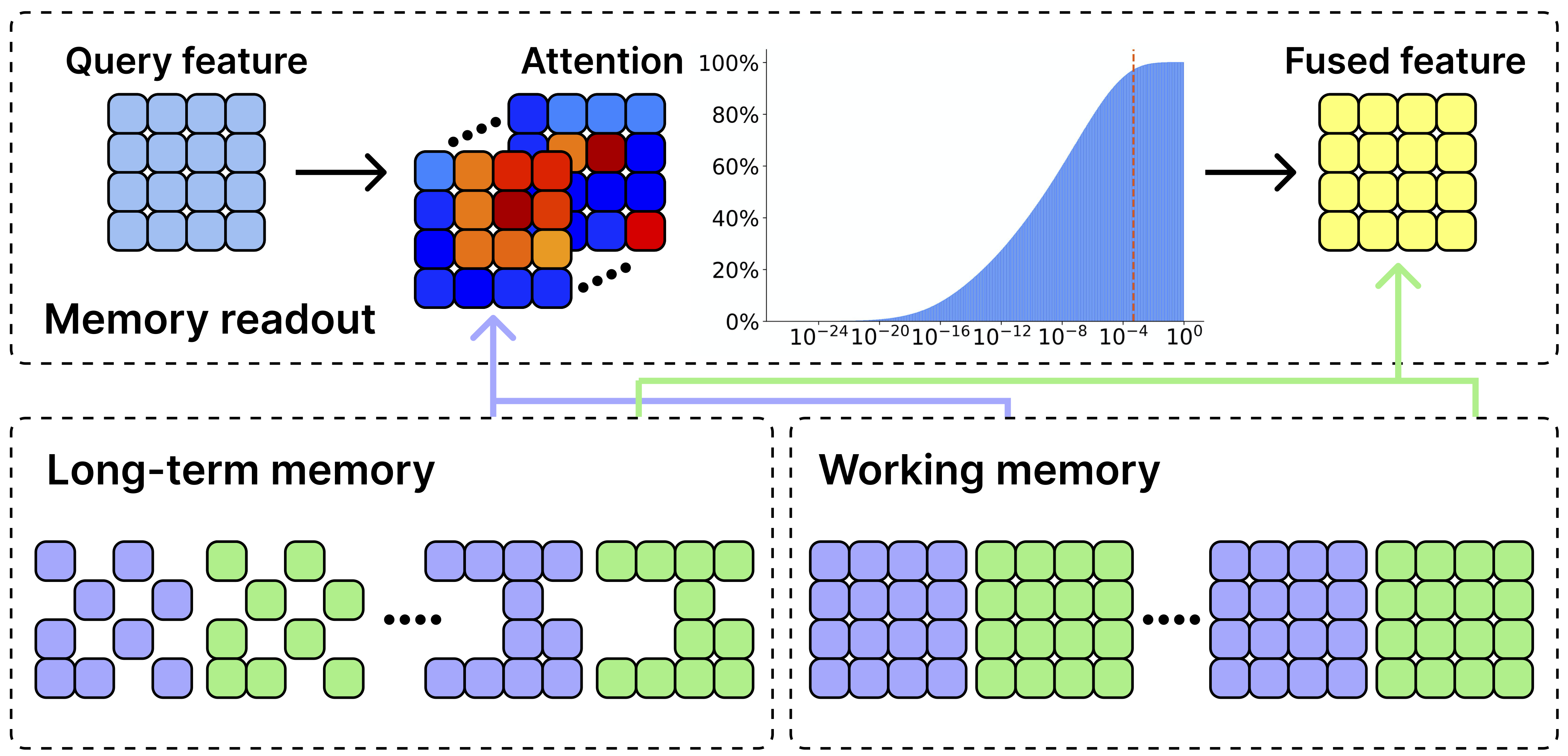

The Spatial Memory architecture and attention distribution.

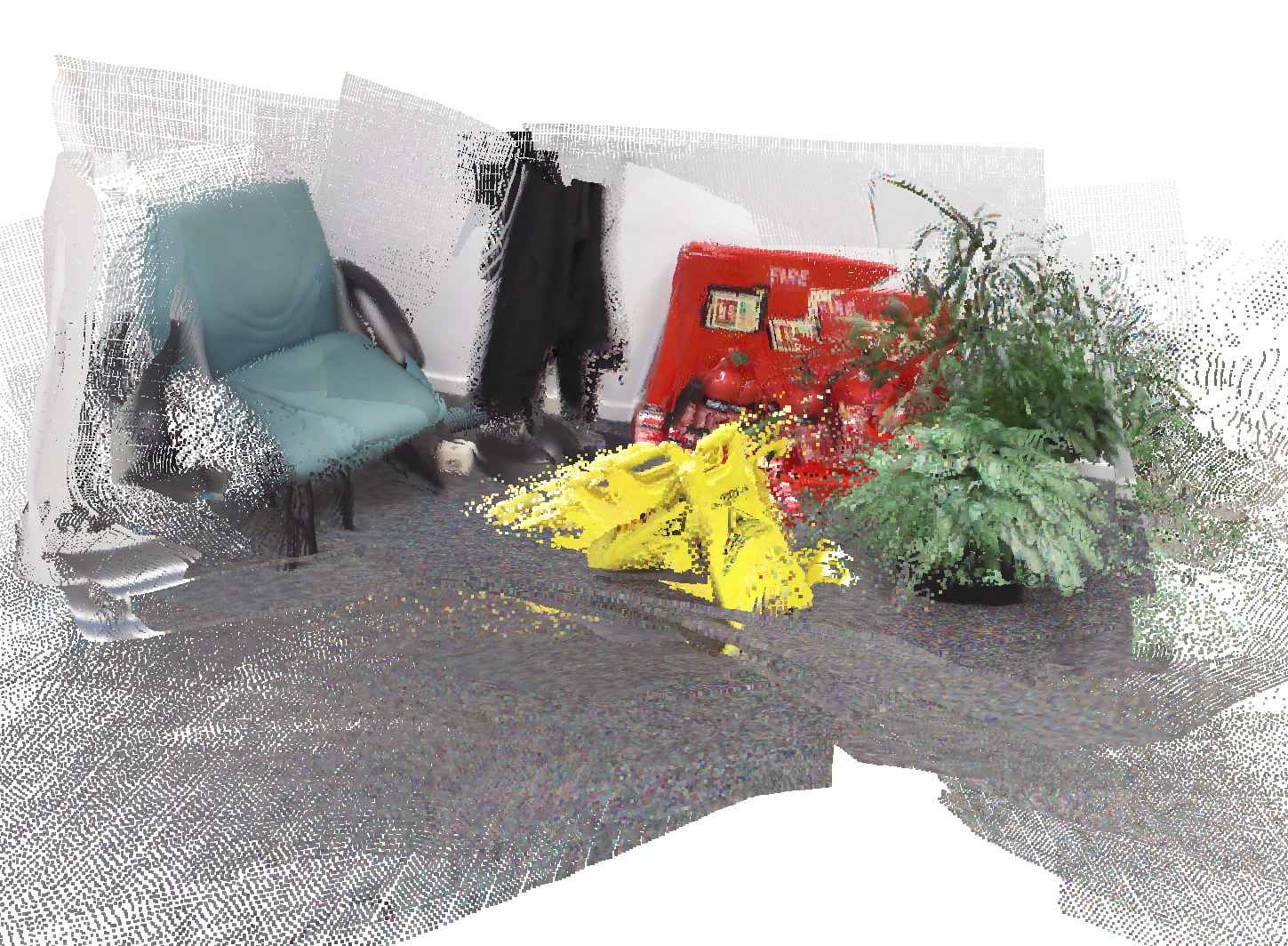

Qualitative comparison on 7Scenes dataset against DUSt3R.

Main Takeaways

Spann3R achieves real-time inference (>50 FPS), orders of magnitude faster than the DUSt3R baseline which requires minutes of offline optimization.
Qualitatively competitive with offline baselines (DUSt3R, FrozenRecon) on standard benchmarks, though suffering slightly on thin structures due to lower training resolution (224x224).
Generalizes well to unseen datasets (7Scenes, DTU) without fine-tuning, validating the spatial memory approach.
The memory management strategy successfully handles long sequences by consolidating features, keeping memory usage bounded.

📚 Prerequisite Knowledge

Prerequisites

Transformer architectures (ViT, Cross-Attention)
3D Geometry basics (Pointmaps, Coordinate Systems)
Structure-from-Motion (SfM) concepts

Key Terms

Pointmap: A dense 2D map where each pixel contains the 3D coordinates (x, y, z) of the corresponding point in the scene

DUSt3R: Dense Unconstrained Stereo 3D Reconstruction—a prior method that regresses pointmaps from image pairs without camera calibration

Spatial Memory: An external memory bank storing key-value pairs of geometric and visual features from previous frames to guide future predictions

Structure-from-Motion (SfM): A photogrammetry range imaging technique for estimating three-dimensional structures from two-dimensional image sequences

Bundle Adjustment (BA): An optimization step in 3D reconstruction that refines 3D coordinates and camera parameters by minimizing reprojection error

ViT: Vision Transformer—a model architecture that processes images as sequences of patches using self-attention mechanisms

SLAM: Simultaneous Localization and Mapping—constructing a map of an unknown environment while keeping track of an agent's location within it

MLP: Multilayer Perceptron—a class of feedforward artificial neural network

X-Mem: A video object segmentation method that introduced memory consolidation (working vs. long-term memory), which Spann3R adapts
