ToolNet: Connecting Large Language Models with Massive Tools via Tool Graph

📝 Paper Summary

Multi-call tool use with flexible plan Self-evolving Agentic reasoning

ToolNet organizes thousands of tools into a weighted directed graph, allowing LLMs to navigate sparse tool transitions rather than processing the entire tool library every step.

Core Problem

Existing methods like ReAct format all available tools as a flat list in the context, which fails to scale to thousands of tools due to token limits and confuses LLMs.

Why it matters:

LLMs hallucinate and fail to select correct tools when presented with massive, flat tool libraries
Token consumption scales linearly with tool count, making current in-context learning approaches cost-prohibitive for large-scale real-world APIs
Static tool lists cannot adapt to tool failures or updates without manual intervention

Concrete Example: In ToolBench, a task might require a specific sequence of API calls. A standard method inputs 3000+ tool descriptions at every step. ToolNet, realizing that the 'Weather' tool is rarely followed by 'Spotify', only presents the few statistically likely successors, drastically cutting context size.

Key Novelty

Tool Graph Navigation for Tool Selection

Represent tools as nodes in a directed graph where weighted edges represent the probability of transitioning from one tool to another
Instead of searching the full library, the LLM only chooses from the current tool's 'successor' nodes, significantly reducing the search space
Dynamically update edge weights based on success/failure feedback, allowing the system to learn preferred paths and prune broken tools over time

Architecture

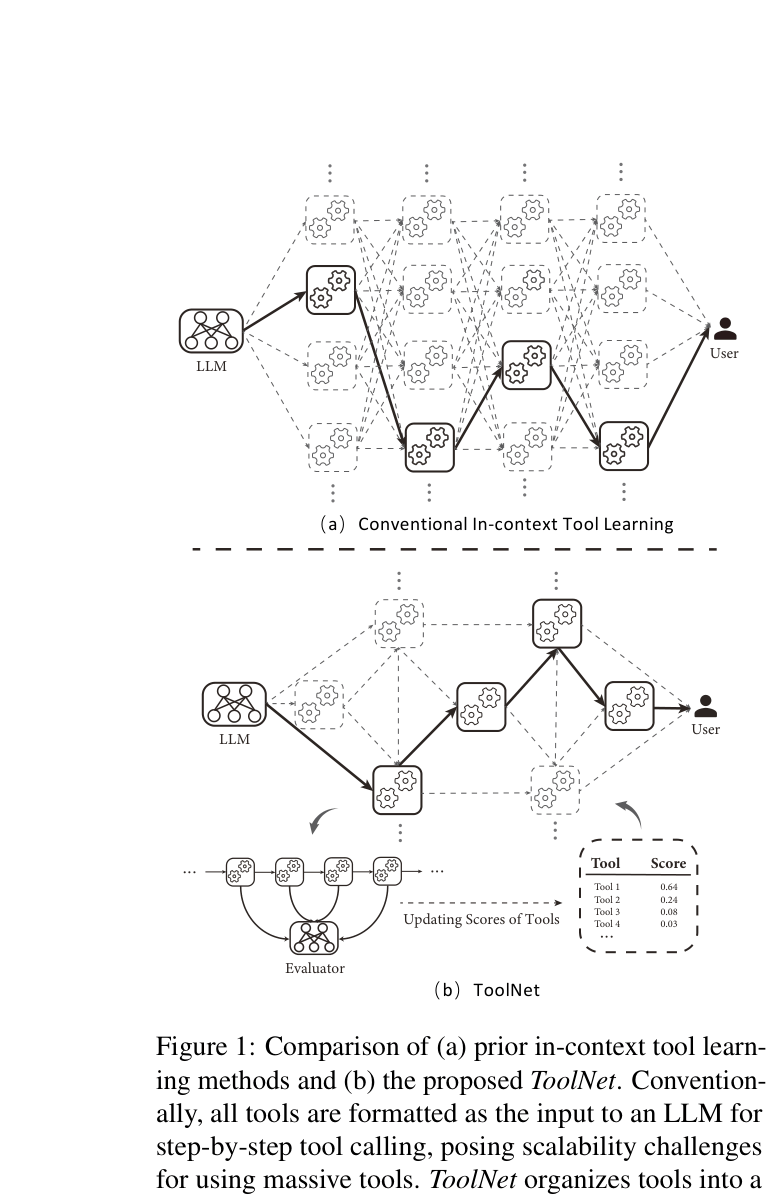

Comparison between conventional In-context Tool Learning and ToolNet. Shows how ToolNet uses a graph structure.

Evaluation Highlights

Achieves comparable or better performance than Reflexion on APIBank and ToolBench while using 61.5% and 50.3% fewer tokens respectively
+15 points in Exact Match over ReAct on TabMWP (from 0.26 to 0.41 difference depending on variant)
Demonstrates resilience to tool failure: when a primary tool breaks, the system dynamically down-weights it and switches to a backup tool within ~20 iterations

Breakthrough Assessment

7/10

Simple but highly effective mechanism for scaling tool use. The graph-based approach solves the context window bottleneck for massive tools elegantly, though reliance on pre-existing trajectories for graph construction is a constraint.

⚙️ Technical Details

Problem Definition

Setting: Multi-turn agentic interaction where an LLM selects actions a_s from a massive set of tools T to solve a task

Inputs: Current observation o_s, history C_s, and a dynamically subsetted list of tools T_s

Outputs: Next action a_s (tool selection and arguments)

Pipeline Flow

Initial Tool Retrieval (via semantic search)
Iterative Graph Navigation (LLM selects next tool from successors)
Tool Execution & Observation
Dynamic Graph Update (Evaluator scores trajectory)

System Modules

Tool Graph

Stores valid transitions between tools to constrain the search space

Model or implementation: Directed Graph Data Structure

Navigator (LLM)

Selects the next tool from the provided subset T_s based on context

Model or implementation: gpt-3.5-turbo

Evaluator (LLM)

Scores the utility of tools used in a trajectory to update graph weights

Model or implementation: gpt-3.5-turbo

Novel Architectural Elements

Stateful Tool Graph memory that evolves edge weights based on cumulative agent experience
Navigation-based inference where the context window is populated only by graph neighbors rather than retrieval over the full set

Modeling

Base Model: gpt-3.5-turbo

Training Method: In-context learning with dynamic graph updates (no gradient updates to LLM)

Objective Functions:

Purpose: Update transition weights based on evaluator feedback.

Formally: w^{(n)}_{i,j} = β w^{(0)}_{i,j} + (1-β) Δ w^{(n)}_{i,j}
Purpose: Normalize evaluator scores to positive weight gradients.

Formally: f(x) = α x + 1 if x ≥ 0, else e^{α x}

Key Hyperparameters:

alpha: 0.2 (ToolBench), 0.456 (SciQA/TabMWP/MATH)
beta: 0.7 (ToolBench), 0.0 (SciQA/TabMWP/MATH)
max_iterations: 8

Compute: Not reported in the paper

Comparison to Prior Work

vs. ReAct: ReAct inputs all tools (or top-k via semantic retrieval) at every step; ToolNet inputs only graph successors.
vs. Reflexion: Reflexion improves via verbal feedback in context; ToolNet improves via structural updates to the tool graph weights.
vs. ToolLLM (ToolBench) [not cited in paper]: ToolLLM relies on massive fine-tuning and depth-first search tree (DFSDT); ToolNet is a plug-and-play graph navigator without fine-tuning.

Limitations

Requires tool-use trajectories to construct the initial graph; cold start problem if no trajectories exist.
Relies on the Markov assumption (next tool depends only on previous tool), which may not hold for complex long-horizon dependencies.
Evaluated only on gpt-3.5-turbo; benefits with stronger (GPT-4) or weaker models are unverified.

Reproducibility

Code availability is not provided. The method relies on gpt-3.5-turbo. Graph construction formulas are explicit. Initial tool retrieval uses a fine-tuned BERT model as per ToolBench setup.

📊 Experiments & Results

Evaluation Setup

Multi-turn question answering and API usage tasks

Benchmarks:

SciQA (Scientific Question Answering)
TabMWP (Table Math Word Problems)
MATH (Mathematical Problem Solving (Level-5))
APIBank (Tool Usage Benchmark)
ToolBench (Large-scale Instruction Tuning Benchmark (3451 APIs))

Metrics:

Exact Match (EM)
Win Rate (vs ToolBench evaluator)
Token Consumption (Total tokens)
Number of Steps
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
Performance on task-specific datasets with noisy tools included to test robustness. ToolNet generally outperforms baselines while using drastically fewer tokens.
SciQA	EM	0.48	0.61	+0.13
SciQA	#Tokens	8270	5945	-2325
TabMWP	EM	0.57	0.67	+0.10
TabMWP	#Tokens	24710	4062	-20648
MATH	EM	0.29	0.25	-0.04
Performance on large-scale multi-task benchmarks (APIBank and ToolBench). ToolNet+Reflexion combines both methods.
APIBank	EM	0.77	0.83	+0.06
APIBank	#Tokens	4286	1649	-2637
ToolBench	Win Rate	0.71	0.75	+0.04
ToolBench	#Tokens	13217	6575	-6642

Experiment Figures

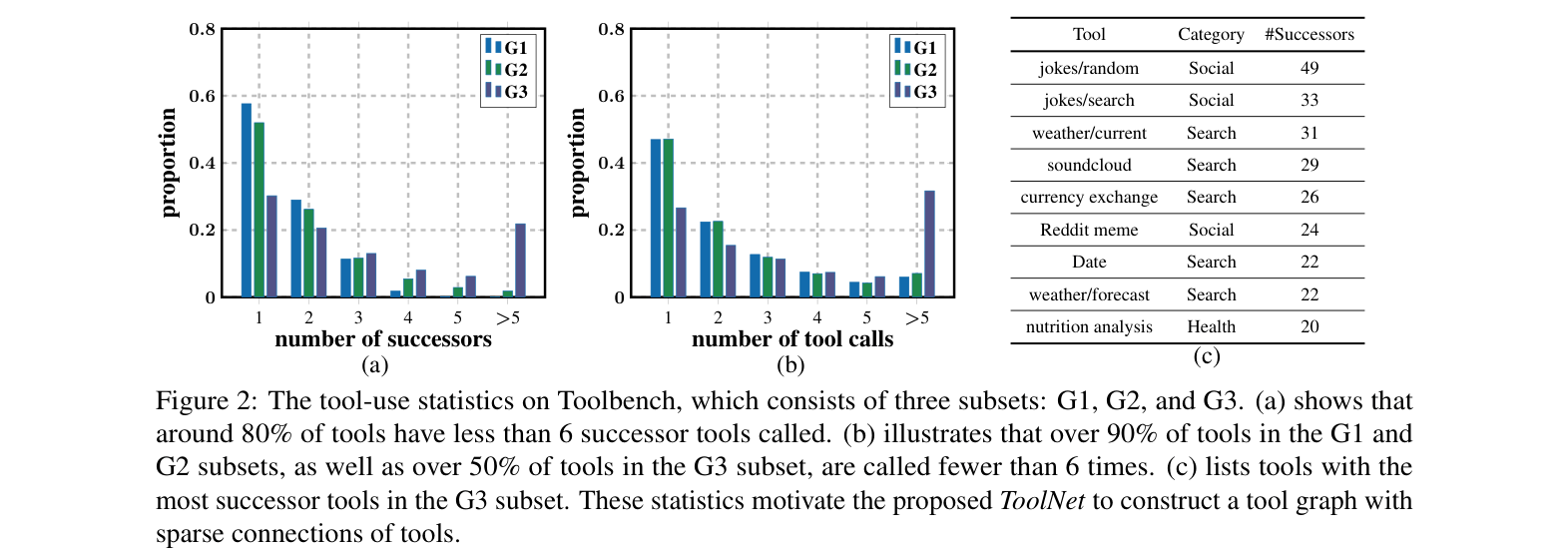

Tool-use statistics on ToolBench showing sparsity of tool transitions.

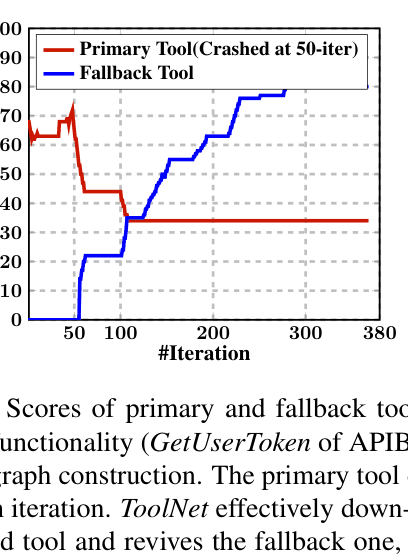

Scores of a primary tool and a fallback tool over iterations when the primary tool crashes at iteration 50.

Main Takeaways

ToolNet consistently reduces token consumption (up to 83.5% reduction) by limiting context to graph successors.
The graph structure acts as a memory of tool effectiveness; noisy/irrelevant tools are automatically down-weighted over iterations, improving robustness.
Combining ToolNet with Reflexion yields the best performance on complex benchmarks, suggesting the structural guidance of ToolNet complements the verbal self-reflection of Reflexion.
ToolNet is resilient to tool failure: dynamic updates allow it to 'forget' a broken tool and 'learn' a backup alternative within a few dozen iterations.

📚 Prerequisite Knowledge

Prerequisites

In-context learning for LLM agents (ReAct framework)
Basic graph theory (nodes, edges, directed graphs)
Reinforcement learning concepts (exploration vs exploitation, though implemented here via graph weights)

Key Terms

ReAct: Reason+Act—a prompting paradigm where LLMs generate reasoning traces before taking actions

Reflexion: An agent framework where LLMs verbally reflect on past failures to improve performance in subsequent trials

Tool Graph: A directed graph structure where nodes are tools and edges represent valid or likely transitions between them

Tool-use trajectory: The sequence of tools called by an agent to solve a specific problem (e.g., [Search -> Calculator -> Finish])

Exact Match (EM): A metric checking if the generated answer string exactly matches the ground truth

Markov assumption: The assumption that the next tool choice depends only on the current state (specifically the previous tool used), allowing the graph to limit choices to immediate successors

Semantic similarity search: Finding relevant items (tools) by comparing vector embeddings of the query and the item descriptions

Beam search: A search algorithm that explores a graph by expanding the most promising nodes in a limited set

Transition weight: A numerical score on an edge in the Tool Graph indicating the preference or probability of moving from one tool to another
