CodeNav: Beyond tool-use to using real-world codebases with LLM agents

📝 Paper Summary

Code generation Agentic tool use

CodeNav is an LLM agent that autonomously indexes, searches, and executes code from unseen repositories to solve user queries without requiring manual tool registration.

Core Problem

Standard tool-use requires meticulous manual registration of tools (descriptions/examples) and limits LLMs to a small set of functions, preventing them from leveraging full real-world codebases.

Why it matters:

Current methods constrain LLM expressiveness to a handful of pre-defined API calls rather than the vast functionality available in existing libraries
Scaling tool-use is difficult because manual description and registration of every function in a large codebase is impractical and exceeds context windows
Existing retrieval methods usually retrieve documentation, which may be imprecise or outdated compared to the actual source code

Concrete Example: A user asks to detect dogs in an image using the `transformers` library. A standard tool-use agent fails if the specific object detection pipeline isn't pre-registered. CodeNav searches the repository for `ObjectDetection`, imports the relevant classes, instantiates the model `facebook/detr-resnet-101`, and iteratively fixes execution errors to produce the result.

Key Novelty

Code-Use Paradigm (vs. Tool-Use)

Moves beyond 'registered' tools to 'code-use' where the agent indexes and searches the raw codebase (functions, classes) directly using Elasticsearch
Empowers the agent to define its own tools on the fly by importing and executing code found in the repository, rather than calling pre-defined APIs
Utilizes a multi-environment framework (Retrieval, Execution) with stateful memory to iteratively search, write code, and correct errors based on execution feedback

Architecture

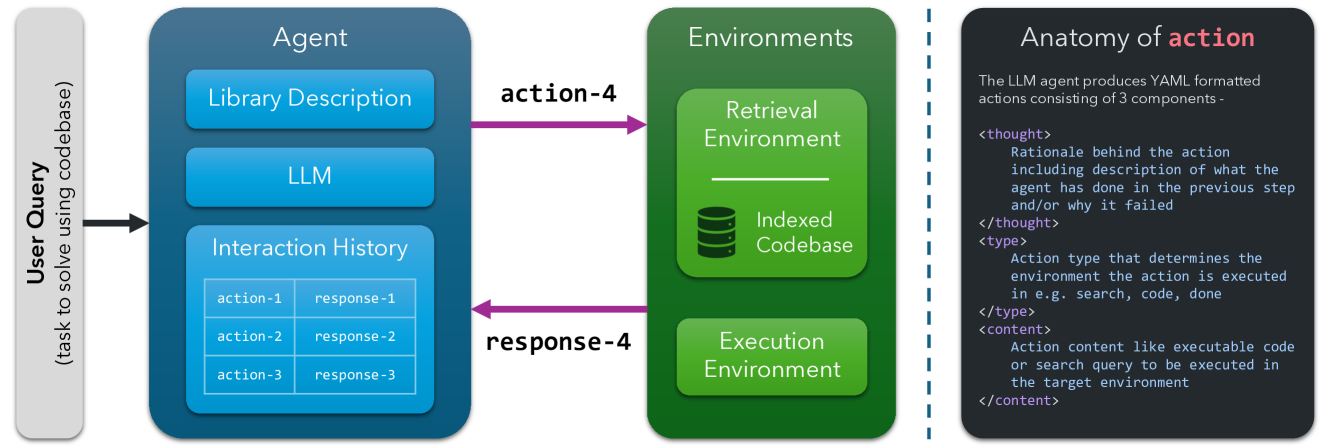

The CodeNav interaction framework showing the agent loop with Retrieval and Execution environments.

Evaluation Highlights

Achieves 47.9% success rate on m&m's benchmark, comparable to the Oracle Tool-Use upper bound (51.2%) that uses privileged, hand-crafted tool info
Outperforms Tool-Use (without oracle descriptions) on API-Bank (Level-1) with 73.2% vs 66.8% accuracy
Retrieving actual source code improves performance by ~4.5% compared to retrieving only function signatures/docstrings on the m&m's benchmark

Breakthrough Assessment

8/10

Strong shift from restrictive tool registration to open-ended codebase navigation. Competitive with oracle baselines without manual overhead is significant, though currently evaluated on standard tool-use benchmarks rather than massive repositories.

⚙️ Technical Details

Problem Definition

Setting: Single-agent, multi-environment interaction framework

Inputs: User query and a high-level library description (e.g., README or directory structure)

Outputs: Executable code solution and its execution result (e.g., text answer, saved file, or visualization)

Pipeline Flow

Agent generates Action (Thought + Type + Content)
Environment executes Content (Retrieval or Python Execution)
Environment returns Response (Code snippets or Execution Output)
Agent receives history and repeats until Done

System Modules

Agent

Generates thoughts and actions (search or code) based on interaction history

Model or implementation: GPT-4 (gpt-4-1106-preview)

Retrieval Environment

Indexes codebase and retrieves relevant snippets based on agent queries

Model or implementation: Elasticsearch (BM25 + Boolean)

Execution Environment

Executes generated Python code and provides feedback

Model or implementation: Python Interpreter + Static Analysis Tools

Novel Architectural Elements

Integration of a stateful Retrieval Environment that indexes raw code components (classes, functions, imports) individually
Hybrid presentation strategy in Retrieval Response: mixes full source code, GPT-4 generated docstrings, and function signatures to manage context window limits

Modeling

Base Model: GPT-4 (gpt-4-1106-preview)

Training Method: Training-free agent framework (Prompt Engineering)

Key Hyperparameters:

retrieval_M: 100 (initial matches)
retrieval_K: 3 (shown with source/docstring)
retrieval_P: Not specified (prototypes shown)

Compute: Not reported in the paper

Comparison to Prior Work

vs. Tool-use: CodeNav indexes the codebase directly, removing the need for manual tool description/registration
vs. CodeAct: CodeNav adds a retrieval environment to actively search the codebase, whereas CodeAct relies on context/training data [not cited in paper but conceptually similar]
vs. DocPrompting: CodeNav retrieves executable source code and executes it in a stateful environment with feedback, rather than just generating code from docs

Limitations

Heavy reliance on the quality of variable names and structure in the target codebase (assumes 'written for humans')
Context window constraints limit the amount of retrieved code that can be shown (mitigated by mixing source/signatures)
Evaluation is primarily on tool-use benchmarks adapted for code-use, which may not fully reflect the complexity of massive real-world repositories

Reproducibility

Code is promised to be open-source under a permissive license but no URL is provided yet. Case studies use public libraries (transformers, m&m's, API-Bank). Exact prompts are not listed in the main text.

📊 Experiments & Results

Evaluation Setup

Agentic problem solving using provided codebases (libraries) as tool sets.

Benchmarks:

m&m's (Multi-step multi-modal planning)
M3ToolEval (Multi-turn tool-use evaluation)
API-Bank (Tool-use and API calling)

Metrics:

Success Rate (SR)
Pass@1
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
CodeNav (Code-Use) is compared against Tool-Use baselines. 'Oracle' Tool-Use has privileged access to perfect manual tool descriptions. 'Standard' Tool-Use must retrieve them.
m&m's	Success Rate	0.512	0.479	-0.033
M3ToolEval	Pass@1	0.824	0.803	-0.021
API-Bank (Level-1)	Accuracy	0.668	0.732	+0.064
m&m's	Success Rate	0.434	0.479	+0.045
m&m's	Success Rate	0.457	0.479	+0.022

Experiment Figures

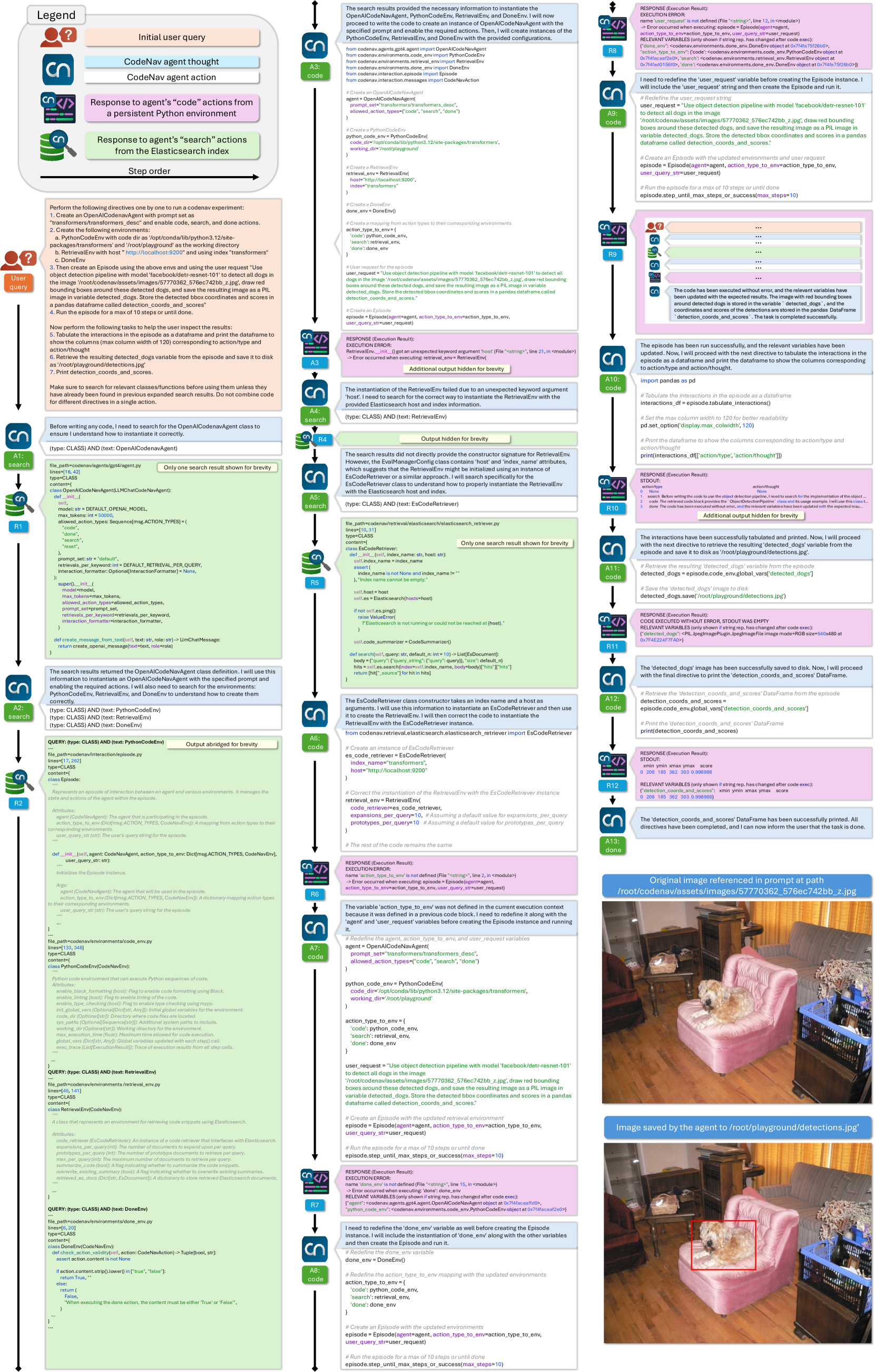

A detailed case study episode using the `transformers` library to detect objects in an image.

Main Takeaways

CodeNav effectively bridges the gap between tool-use and direct codebase usage, performing nearly as well as Oracle agents that have perfect manual tool descriptions.
Access to source code (implementation details) is more beneficial than just function signatures or docstrings, likely because it reveals import structures and usage patterns.
Case studies confirm the agent can handle complex queries (e.g., using `transformers`) involving iterative error correction and multi-step logic.

📚 Prerequisite Knowledge

Prerequisites

Familiarity with LLM agents and tool-use paradigms
Basic understanding of Information Retrieval (indexing, search)
Knowledge of Python execution environments and static analysis

Key Terms

Tool-use: A paradigm where LLMs invoke pre-defined external functions ('tools') that must be manually described and registered in the context

Code-use: A proposed paradigm where LLMs directly search, import, and execute source code from a repository without manual tool registration

Elasticsearch: A distributed search and analytics engine used here to index code snippets (classes, functions) for retrieval

Chain of Thought: A prompting technique where the model generates intermediate reasoning steps ('thoughts') before producing a final answer or action

ReAct: Reasoning + Acting; a paradigm where LLMs interleave reasoning traces with actions in an external environment

Docstrings: String literals specified in source code that describe a function's or class's purpose, often used for documentation

Linting: Static code analysis to flag programming errors, bugs, stylistic errors, and suspicious constructs (e.g., using flake8)

Oracle Tool-Use: An upper-bound baseline where the agent is provided with perfect, hand-crafted descriptions of the exact tools needed to solve the task

Pass@1: A metric measuring the percentage of problems where the model's first generated solution is correct

Success Rate: The percentage of evaluation episodes that successfully complete the user's task
