Magentic-UI: Towards Human-in-the-loop Agentic Systems

📝 Paper Summary

Human-in-the-loop (HITL) agents Web and OS agents Human-Agent Interaction (HAI)

Magentic-UI is an open-source interface that integrates humans into multi-agent workflows through specific interaction mechanisms like co-planning and co-tasking, aiming to boost reliability and safety in complex agentic tasks.

Core Problem

Autonomous agents currently fail to achieve human-level performance on complex tasks (e.g., browsing, coding) and introduce safety risks like misalignment and irreversible actions when operating without oversight.

Why it matters:

Current agents struggle with long-horizon tasks (minutes to hours), leading to wasted time and compounding errors if left unchecked.
Agents acting directly on the real world (web/OS) create new attack surfaces for adversarial manipulation and safety violations.
Completely autonomous systems often fail to capture user intent or specific constraints that are difficult to specify upfront.

Concrete Example: A user asks an agent to 'buy a charger for my Surface laptop.' An autonomous agent might plan to buy it on Amazon. However, the user knows it's only officially sold on Microsoft.com. Without co-planning, the agent wastes time searching the wrong site or buys an incompatible third-party item.

Key Novelty

Magentic-UI (Multiagentic-UserInterface)

Treats the human user as a distinct agent within a multi-agent team, managed by an Orchestrator that delegates tasks to the human when necessary.
Introduces six specific interaction patterns (co-planning, co-tasking, action guards, etc.) to operationalize human oversight without overwhelming the user.
Embeds a live browser within the agent interface, allowing seamless control hand-offs where the user can physically intervene in the agent's browsing session.

Architecture

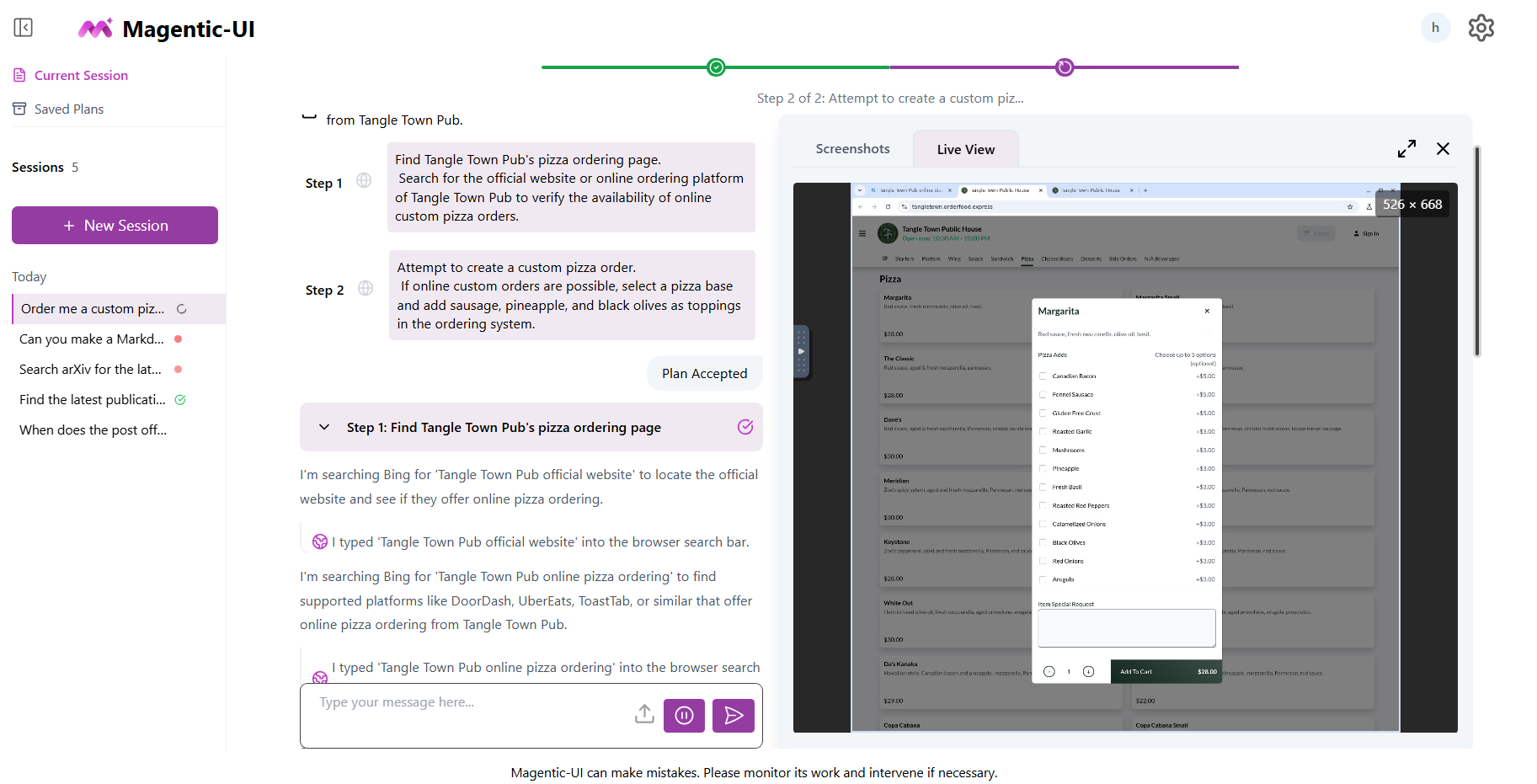

The Magentic-UI interface layout and its components.

Evaluation Highlights

Simulated user testing on GAIA benchmark shows Magentic-UI facilitates human intervention, though autonomous success rates remain baseline (e.g., 29.3% on Level 1 validation).
Qualitative studies demonstrate the utility of 'co-tasking' (interrupting execution) for handling captchas and correcting navigation errors.
Safety assessments confirm 'action guards' prevent high-stakes actions (e.g., irreversible purchases) until explicit human approval is granted.

Breakthrough Assessment

7/10

While the underlying agent performance isn't a breakthrough, the system architecture for Human-Agent Interaction (viewing the human as a tool/agent) and the open-source platform for studying these interactions are significant contributions.

⚙️ Technical Details

Problem Definition

Setting: Human-in-the-loop execution of open-ended web and file manipulation tasks.

Inputs: Natural language user request, optional files, and real-time user interventions (clicks, text corrections).

Outputs: Completed task artifacts (files, web actions) and a final text summary.

Pipeline Flow

Orchestrator receives user task → Clarifies ambiguity (optional) → Generates Plan
Co-Planning (User edits/accepts plan)
Orchestrator Loop: Delegate step to Agent or Human → Execute → Update Ledger
Co-Tasking (User interrupts/intervenes in Browser) → Resume
Final Answer → Verification

System Modules

Orchestrator Agent

Decomposes tasks, maintains the task ledger, and decides which agent (including the Human) to call next

Model or implementation: GPT-4o (implied via Magentic-One default)

WebSurfer Agent (Execution)

Navigates the web, clicks elements, and extracts content

Model or implementation: GPT-4o (implied)

FileSurfer Agent (Execution)

Reads local files and navigates directories

Model or implementation: GPT-4o (implied)

Coder Agent (Execution)

Writes and executes code (Python) to solve computational sub-tasks

Model or implementation: GPT-4o (implied)

Human Agent (User)

Acts as a specialized agent that can answer clarifying questions, solve CAPTCHAs, or approve high-stakes actions

Model or implementation: Biological Human

Novel Architectural Elements

Human-as-Agent Abstraction: The user is architecturally defined as an agent with a description field, allowing the Orchestrator to 'delegate' tasks to the human using standard multi-agent routing logic.
Embedded Interactive Browser: The browser acts as a shared state resource; the agent drives it via Playwright, but the user can physically click/type in the same view (co-tasking) to resolve blocks.
Plan Editor Component: A UI element that exposes the agent's internal instruction sequence as editable natural language steps for pre-execution alignment.

Modeling

Base Model: GPT-4o (Note: The paper describes the UI system; the underlying agents default to GPT-4o in the referenced Magentic-One architecture, though the UI is model-agnostic)

Comparison to Prior Work

vs. Cocoa: Cocoa has co-planning but lacks dynamic handoffs (co-tasking) during execution and is single-agent. Magentic-UI supports real-time interruption and multi-agent delegation.
vs. CowPilot: CowPilot allows pause/resume but lacks structured co-planning, action approvals, and the Orchestrator-mediated human delegation model of Magentic-UI.
vs. OpenHands [not cited in paper]: OpenHands provides a coding interface but Magentic-UI focuses on general-purpose web/file tasks with specific HCI primitives like 'Action Guards' and structured plan editing.
+ 1 more
vs. Globetrotter [not cited in paper]: Globetrotter focuses on global planning for web agents; Magentic-UI focuses on the UI/UX mechanisms for the human to intervene in that planning.

Limitations

Dependency on the underlying Orchestrator's ability to know *when* to call the human (the 'learning to defer' problem is not solved here, just heuristically prompted).
Latency in agent interactions can make real-time collaboration (co-tasking) feel sluggish.
The system currently relies on manual prompt tuning for the description fields that determine when the Orchestrator delegates to the user.

Reproducibility

Code: https://github.com/microsoft/magentic-ui

publicly available (https://github.com/microsoft/magentic-ui). The system is an open-source interface. The paper relies on the Magentic-One backend. Benchmarks used (GAIA, WebVoyager) are public.

📊 Experiments & Results

Evaluation Setup

Evaluation of autonomous capability, simulated user interaction, and qualitative user experience.

Benchmarks:

WebVoyager (Web browsing tasks)
GAIA (General AI Assistant tasks (Levels 1-3))
AssistantBench (Realistic user helper tasks)
WebGames (Game playing via web interface)

Metrics:

Success Rate (SR)
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
Autonomous performance baselines established to confirm the underlying system (Magentic-One) is competent enough to be a testbed for UI interaction.
GAIA (Validation)	Success Rate	Not reported in the paper	29.3	Not reported in the paper
WebVoyager	Success Rate	Not reported in the paper	46.2	Not reported in the paper
GAIA (Val Level 1)	Success Rate	29.3	Not reported in the paper	Not reported in the paper

Experiment Figures

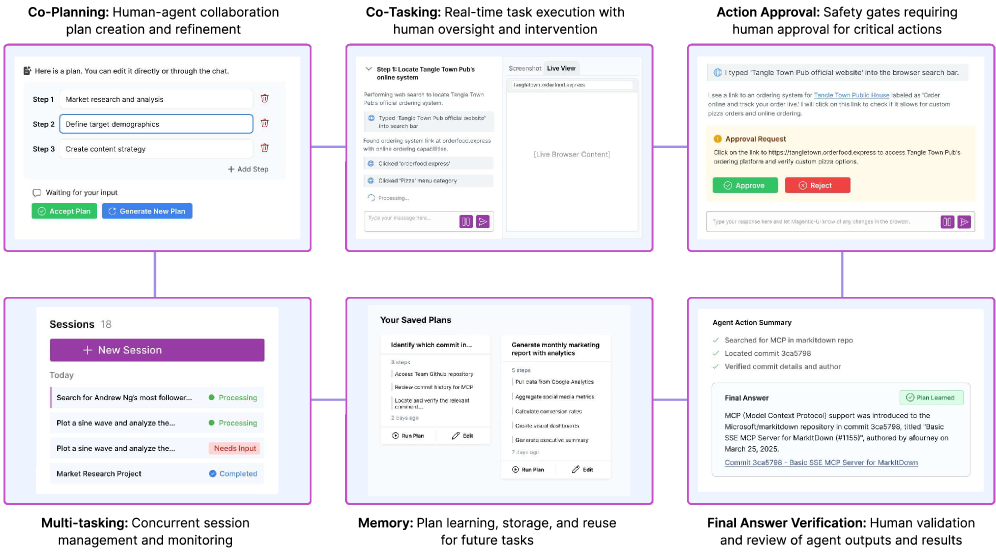

Conceptual diagram of the six interaction mechanisms.

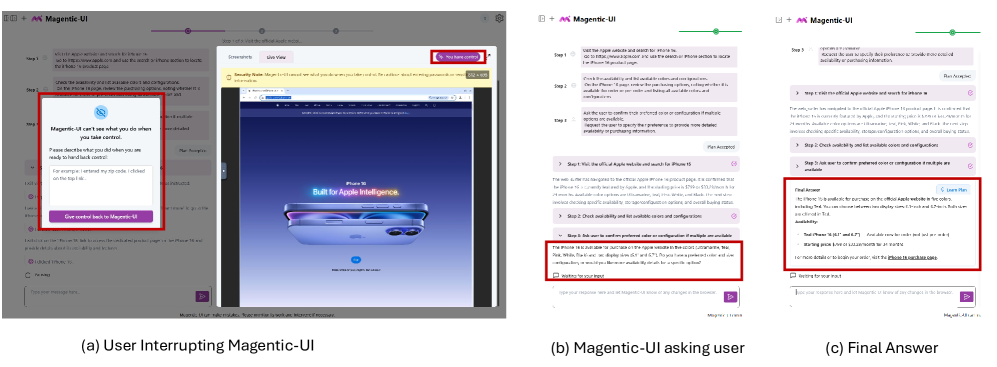

Screenshots of three co-tasking modalities: (a) User interrupting agent, (b) Agent interrupting user (asking for help), (c) User verifying final answer.

Main Takeaways

Magentic-UI successfully implements a 'Human-as-Agent' architecture, allowing the Orchestrator to treat the user as a tool for answering questions or approving actions.
The 'Co-tasking' mechanism allows users to solve blocks (like CAPTCHAs) that would otherwise cause task failure in 100% autonomous runs.
Action guards effectively stop high-stakes actions (e.g., adding items to cart/purchasing) until human verification is received, improving safety.
The system supports multi-tasking, allowing users to switch contexts while agents continue working in the background, addressing the latency of slow agent execution.

📚 Prerequisite Knowledge

Prerequisites

Understanding of Agentic Workflows (Orchestrator-Workers)
Basic knowledge of LLM tool use (function calling)
Familiarity with web automation (browser DOM interactions)

Key Terms

Magentic-One: A multi-agent system from Microsoft that Magentic-UI is built upon, featuring an Orchestrator and specialized agents (WebSurfer, FileSurfer, etc.)

Orchestrator: The central agent that plans tasks, delegates steps to sub-agents (including the human), and manages the overall workflow

MCP: Model Context Protocol—a standard for connecting AI assistants to systems and tools, used here to extend agent capabilities

Co-planning: An interaction phase where the agent presents a generated plan to the user for editing and approval before execution begins

Co-tasking: Collaborative execution where control of tools (like a web browser) is passed dynamically between the agent and the human user

Action Guard: A safety mechanism that pauses execution and requires explicit human approval before the agent performs high-stakes actions (e.g., financial transactions)

CAPTCHA: Completely Automated Public Turing test to tell Computers and Humans Apart—a challenge often blocking web agents that humans must solve manually

WebVoyager: A benchmark for evaluating web agents on real-world websites

GAIA: A benchmark assessing general AI assistants on tasks requiring reasoning, tool use, and multi-modality

System 1/System 2: Cognitive science terms; System 1 is fast/instinctive, System 2 is slow/deliberative. Here applied to agent planning speeds
