Youtu-GraphRAG: Vertically Unified Agents for Graph Retrieval-Augmented Complex Reasoning

📝 Paper Summary

Graph-based RAG pipeline Agentic RAG pipeline

Youtu-GraphRAG unifies graph construction and retrieval through a shared schema, using dual-perception community detection and agentic query decomposition to enhance complex reasoning while reducing token costs.

Core Problem

Existing GraphRAG methods optimize graph construction and retrieval in isolation, leading to misalignment where the constructed graph structure does not effectively support complex retrieval needs, especially under domain shifts.

Why it matters:

Prior methods rely on loose OpenIE extraction, introducing noise and irrelevant trivia that degrade graph usability
Current community detection algorithms focus on topology but neglect semantic coherence, resulting in suboptimal knowledge clustering
Evaluation often suffers from data contamination (knowledge leakage), preventing fair assessment of RAG systems on pre-trained LLMs

Concrete Example: In a query like 'Which pharmaceutical companies manufacture diabetes drugs?', a standard decomposition might hallucinate connections. Without a schema, extraction tools might create vague relations like 'associated_with' instead of 'manufactures', causing the retrieval agent to miss the specific manufacturer-drug link required for the answer.

Key Novelty

Vertically Unified Agentic GraphRAG via Graph Schema

Treats graph construction as schema-bounded constraint generation, where an agent automatically expands a seed schema to fit new domains, ensuring precise entity/relation types
Introduces 'Dually-Perceived Community Detection' that clusters nodes based on both structural links and semantic embedding similarity, creating a 4-level knowledge tree
Deploys an agentic retriever that interprets the *same* schema to decompose complex questions into parallel sub-queries (node, triple, or community level) with iterative reflection

Architecture

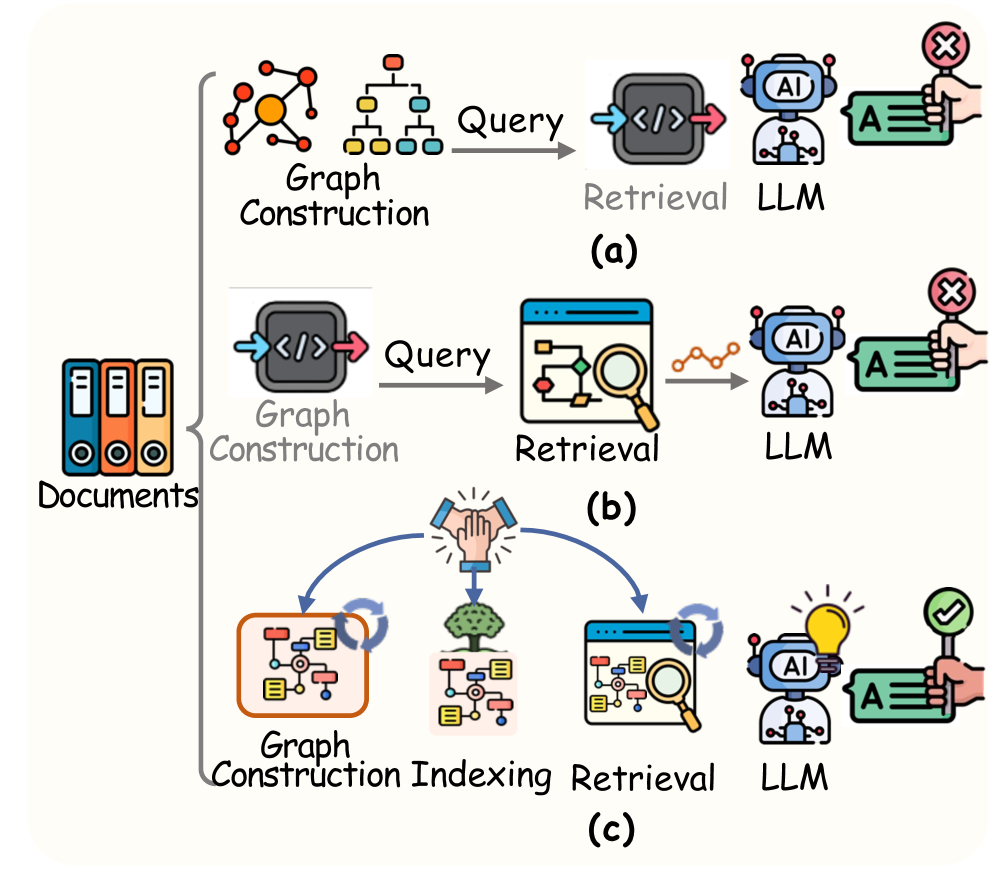

The complete Youtu-GraphRAG framework unifying construction and retrieval.

Evaluation Highlights

Moves the Pareto frontier with up to 90.71% saving of token costs compared to GraphRAG (Microsoft) baselines
Achieves up to 16.62% higher accuracy over state-of-the-art baselines on complex reasoning benchmarks
Demonstrates robustness on a newly proposed 'Anonymity Reversion' task designed to measure performance without parametric knowledge leakage

Breakthrough Assessment

8/10

Strong engineering contribution unifying construction and retrieval via schema. The dual-perception clustering and anonymity evaluation are significant methodological improvements, though the core concept refines rather than replaces GraphRAG.

⚙️ Technical Details

Problem Definition

Setting: Graph Retrieval-Augmented Generation (GraphRAG) for answering natural language questions using structured knowledge extracted from documents

Inputs: A set of documents D and a natural language query q

Outputs: A generated answer a_pred based on retrieved subgraphs

Pipeline Flow

Construction: Schema Definition -> Agentic Extraction -> Dually-Perceived Community Detection -> Knowledge Tree Construction
Inference: Query Decomposer -> Multi-Route Retrieval -> Iterative Reasoning -> Generation

System Modules

Schema-Bounded Extraction Agent (Construction)

Extract entities and relations strictly adhering to a defined schema, while proposing schema updates for new domains

Model or implementation: LLM (Frozen)

Community Detector (Construction)

Partition graph into hierarchical communities using dual-perception scoring

Model or implementation: K-means initialization + Custom Fusion Algorithm

Query Decomposer (Retrieval & Inference)

Break complex queries into atomic sub-queries mapped to schema elements

Model or implementation: LLM Agent

Agentic Retriever (Retrieval & Inference)

Execute parallel retrieval strategies and perform iterative reflection

Model or implementation: LLM Agent

Novel Architectural Elements

Vertically unified schema: The same dynamic schema bounds both the extraction agent (construction) and query decomposition agent (retrieval)
Dual-perception community detection: A clustering module integrating topology and semantics explicitly, replacing standard Louvain/Leiden
Four-route parallel retrieval: Explicit routing for Entity Matching, Triple Matching, Community Filtering, and DFS Traversal based on sub-query type

Modeling

Base Model: Not explicitly reported in the paper (general framework compatible with LLMs)

Training Method: Inference-only framework using frozen LLMs

Key Hyperparameters:

community_tree_depth: 4
beta_granularity: 10 (min entities per cluster)
eta_fragmentation: 200
+ 1 more
dfs_max_depth: 5

Compute: Not reported in the paper

Comparison to Prior Work

vs. GraphRAG: Youtu-GraphRAG uses dual-perception (structure+semantics) clustering instead of just Leiden, and constrains extraction via schema
vs. HippoRAG: Youtu-GraphRAG integrates construction and retrieval agents via a shared schema, whereas HippoRAG focuses on the retrieval algorithm
vs. KGP [not cited in paper]: KGP uses existing hyperlinks/KNN, whereas Youtu-GraphRAG builds a semantic schema-based graph
+ 1 more
vs. RAPTOR: Youtu-GraphRAG explicitly models entity-relation triples within the hierarchy, whereas RAPTOR clusters text chunks

Limitations

Dependency on the quality of the seed schema and the LLM's ability to propose valid expansions
Computational cost of dual-perception scoring during graph construction (though claimed to be efficient, O(N^2) complexity in worst case for fusion)
Effectiveness relies on the frozen LLM's capability to adhere to schema constraints

Reproducibility

Code: https://github.com/TencentCloudADP/Youtu-GraphRAG

Code is publicly available at https://github.com/TencentCloudADP/Youtu-GraphRAG and dataset at https://huggingface.co/datasets/Youtu-Graph/AnonyRAG. Specific LLM versions used for experiments are not detailed in the text provided.

📊 Experiments & Results

Evaluation Setup

Complex reasoning QA across multiple domains

Benchmarks:

Multi-hop Reasoning Tasks (Complex QA)
AnonyRAG (Anonymity Reversion Task (QA on anonymized entities)) [New]

Metrics:

Accuracy
Token Cost
Retrieval Recall
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
Youtu-GraphRAG demonstrates significant cost savings and accuracy improvements compared to state-of-the-art baselines.
Average across 6 benchmarks	Token Cost Reduction	Not reported in the paper	Not reported in the paper	Not reported in the paper
Average across 6 benchmarks	Accuracy	Not reported in the paper	Not reported in the paper	Not reported in the paper

Experiment Figures

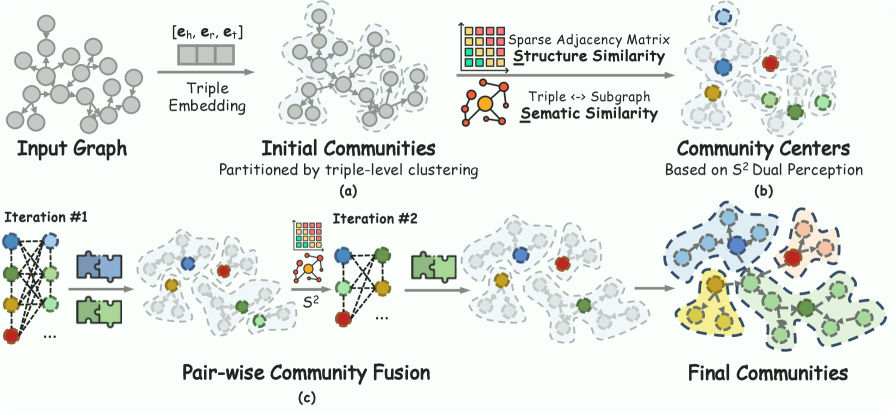

Illustration of the Dual-Perception Community Detection process.

Main Takeaways

Youtu-GraphRAG moves the Pareto frontier, significantly reducing token consumption (up to 90%) while improving accuracy.
The 'Anonymity Reversion' task reveals that many existing methods rely on parametric knowledge (leakage), while Youtu-GraphRAG maintains robustness on anonymized data.
Dual-perception community detection creates more coherent clusters than topology-only methods, aiding high-level summarization.
Schema-bounded extraction reduces noise compared to OpenIE approaches, improving retrieval precision.

📚 Prerequisite Knowledge

Prerequisites

Knowledge Graphs (entities, relations, triples)
Retrieval-Augmented Generation (RAG)
Community Detection (Louvain, Leiden algorithms)
Agentic workflows (planning, reflection)

Key Terms

GraphRAG: Graph Retrieval-Augmented Generation—using knowledge graphs to structure document data for better retrieval and reasoning

OpenIE: Open Information Extraction—extracting entities and relations from text without a predefined schema, often resulting in noisy or non-canonical outputs

Pareto frontier: The set of optimal solutions where no metric (e.g., accuracy) can be improved without degrading another (e.g., cost)

DFS: Depth-First Search—an algorithm for traversing graph data structures, used here to explore multi-hop relation paths

Schema: A formal definition of allowed entity types, relation types, and attributes in a knowledge graph

Knowledge Tree: A hierarchical organization of the graph, ranging from fine-grained triples (leaves) to coarse community summaries (roots)

Dual-Perception: Combining both topological (structural connections) and semantic (embedding similarity) signals for clustering
