GNN-RAG: Graph Neural Retrieval for Efficient Large Language Model Reasoning on Knowledge Graphs

📝 Paper Summary

Graph-based RAG pipeline Knowledge Graph Question Answering (KGQA)

GNN-RAG improves KGQA by using a Graph Neural Network to retrieve reasoning paths from dense subgraphs, which are then verbalized for an LLM to generate the final answer.

Core Problem

Existing KGQA methods relying on LLMs for graph traversal or semantic parsing are inefficient for complex questions involving multi-hop or multi-entity reasoning due to exponential context expansion and high cost.

Why it matters:

LLMs struggle to process exponentially expanding graph context at deeper hops, leading to 'lost in the middle' issues
Retrieval methods based on off-the-shelf NLP retrievers or simple graph algorithms often fail to capture complex graph structures required for multi-hop QA
Current LLM-based traversal methods require many costly API calls to navigate the graph hop-by-hop

Concrete Example: For the question 'In which state did fictional character Gilfoyle live?', a standard KG-RAG baseline retrieves only the immediate fact about 'Gilfoyle' living in 'Toronto'. It fails to retrieve the second necessary hop ('Toronto' is in 'Ontario'), which GNN-RAG successfully finds by reasoning over the graph structure.

Key Novelty

GNN-RAG: Graph Neural Retrieval for Efficient Large Language Model Reasoning

Use a Graph Neural Network (GNN) as a dense subgraph processor to identify relevant answer nodes by propagating question-specific importance weights
Retrieve the shortest paths connecting question entities to GNN-identified answer candidates as 'reasoning paths'
Verbalize these reasoning paths into natural language context for a standard LLM to generate the final answer

Architecture

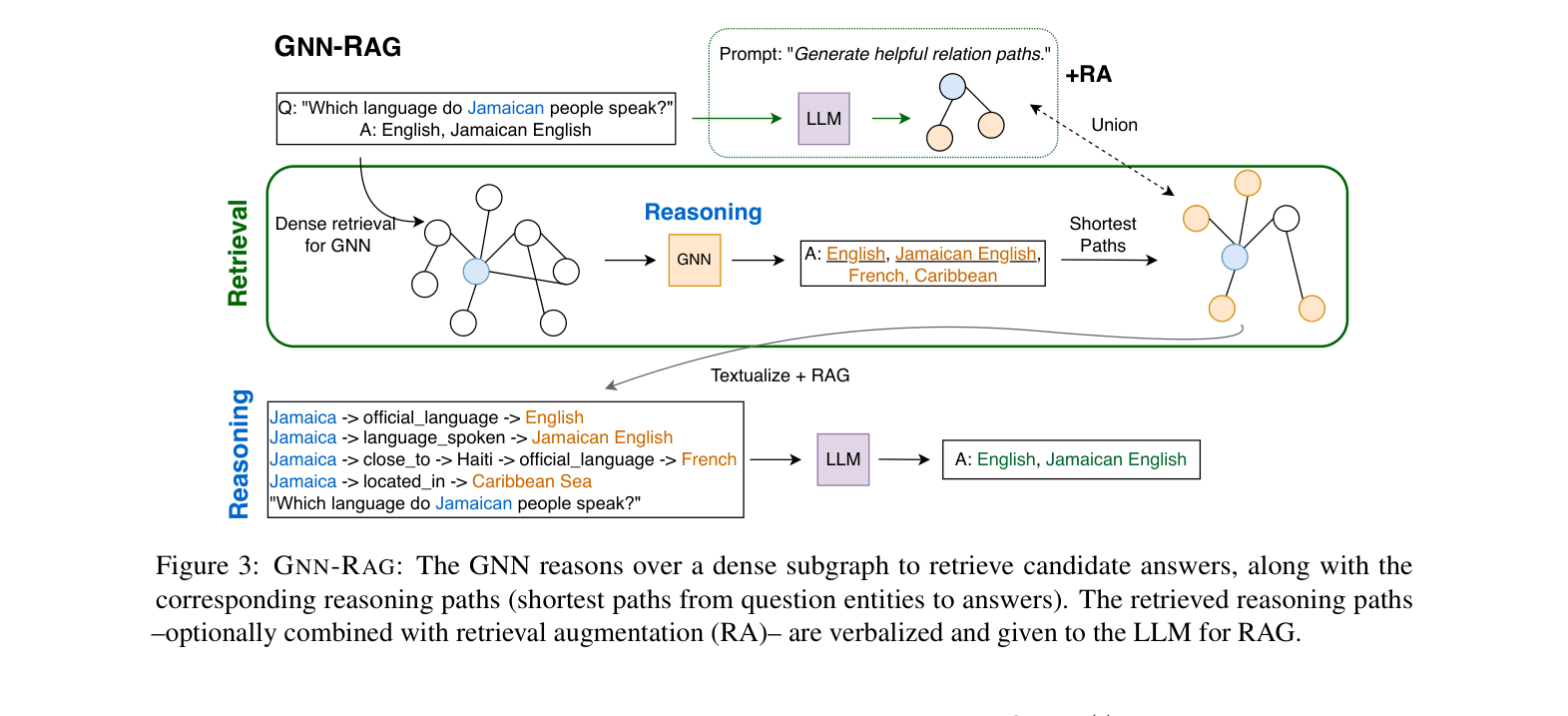

The GNN-RAG inference framework: Dense retrieval, GNN scoring, Path extraction, and RAG.

Evaluation Highlights

+8.9 to +15.5 percentage points improvement in F1 score on complex multi-hop/multi-entity questions compared to LLM-based retrieval methods (RoG)
Outperforms or matches GPT-4 based methods (ToG) using only a 7B parameter model, while requiring significantly fewer KG tokens
GNN-RAG+Route improves efficiency by using 9x fewer KG tokens than long-context retrieval baselines while achieving higher accuracy

Breakthrough Assessment

8/10

Significantly improves efficiency and performance for complex KGQA without relying on massive LLMs for retrieval. Effectively bridges dense graph reasoning with LLM generation.

⚙️ Technical Details

Problem Definition

Setting: Knowledge Graph Question Answering (KGQA) where a question q and KG G are given to extract answer entities {a_q}

Inputs: Natural language question q, Knowledge Graph G

Outputs: Set of answer entities {a_q}

Pipeline Flow

Group 1: Graph Retrieval: Entity Linking → Dense Subgraph Extraction → GNN Scoring → Path Extraction
Group 2: Answer Generation: Path Verbalization → LLM Reasoning

System Modules

Dense Subgraph Extractor (Graph Retrieval)

Extract a relevant subgraph around linked entities to limit search space

Model or implementation: PageRank Nibble algorithm

GNN Retriever (Graph Retrieval)

Score nodes in the subgraph based on relevance to the question to identify candidate answers

Model or implementation: Multi-layer GNN with attention-based pooling (L=6 layers)

Augmentation & Routing (Optional) (Graph Retrieval)

Combine GNN paths with other retrieval methods or route based on difficulty

Model or implementation: Heuristic union or routing logic

LLM Generator

Generate the final answer using verbalized reasoning paths as context

Model or implementation: Llama-2-Chat-7B (fine-tuned)

Novel Architectural Elements

Decoupled GNN-LLM pipeline: GNN performs dense retrieval and reasoning path extraction, while LLM performs final answer generation (as opposed to LLM doing the traversal)
Iterative GNN Reasoning: Resetting the probability vector halfway through GNN layers to re-evaluate node importance using deeper context

Modeling

Base Model: Llama-2-Chat-7B (for generation)

Training Method: Supervised Fine-Tuning (SFT) for LLM; Node Classification training for GNN

Objective Functions:

Purpose: Train GNN to identify answer nodes.

Formally: KL-divergence loss between predicted node probability p(L)_v and ground truth labels y_v
Purpose: Train LLM to generate answers from paths.

Formally: Standard language modeling loss on answer generation given reasoning paths

Adaptation: Fine-tuning (LLM)

Training Data:

WebQSP (2,848 train)
CWQ (27,639 train)
MetaQA-3 (1,000 train)

Key Hyperparameters:

gnn_layers_L: 6
question_embeddings_K: 3
subgraph_size_m: 2000
+ 1 more
embedding_dimension_d: Not explicitly reported in the paper (standard hidden dim implied)

Compute: Single 24GB GPU for GNN-RAG inference. LLM training/inference done on A10G GPU.

Comparison to Prior Work

vs. RoG: GNN-RAG uses a GNN for retrieval instead of LLM generation, handling complex multi-hop structures better without hallucinating paths
vs. ToG: GNN-RAG retrieves paths in a single GNN pass rather than multiple iterative LLM calls, improving efficiency
vs. SubgraphRAG: GNN-RAG filters context via graph topology rather than just text similarity, using 9x fewer tokens
+ 1 more
vs. Graph-Toolformer [not cited in paper]: GNN-RAG uses GNNs for internal reasoning state rather than LLM tool use calls to SPARQL endpoints

Limitations

Relies on the assumption that the answer exists within the extracted dense subgraph (requires accurate entity linking and subgraph extraction)
Simple verbalization template for paths might not fully exploit LLM's understanding compared to more complex prompting
GNN and LLM are trained separately; no end-to-end gradient flow between retrieval and generation

Reproducibility

Code: https://github.com/cmavro/GNN-RAG

Code is publicly available at https://github.com/cmavro/GNN-RAG. KG data (Freebase subset) and linked entities from previous works (WebQSP, CWQ) are standard benchmarks. SBERT used for initial embeddings. Llama-2-Chat-7B used as base LLM.

📊 Experiments & Results

Evaluation Setup

KGQA on standard benchmarks (WebQSP, CWQ, MetaQA-3) using Freebase and WikiMovies KGs.

Benchmarks:

WebQuestionsSP (WebQSP) (Up to 2-hop KGQA)
Complex WebQuestions (CWQ) (Multi-hop (up to 4 hops) complex KGQA)
MetaQA-3 (3-hop KGQA (Movies domain))

Metrics:

Hit (Exact Match)
F1
Hit@k (Retrieval metric)
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
Main comparison on standard KGQA benchmarks shows GNN-RAG variants outperforming or matching state-of-the-art LLM-based methods.
WebQSP	Hit	85.7	85.7	0.0
CWQ	Hit	62.6	66.8	+4.2
CWQ	Hit	69.5	66.8	-2.7
Analysis on complex question subsets (multi-hop and multi-entity) demonstrates GNN-RAG's superiority in handling complex graph structures.
WebQSP (Multi-entity)	F1	65.1	82.3	+17.2
CWQ (Multi-hop)	F1	59.3	68.2	+8.9
CWQ	#KG Tokens	1442	153	-1289

Experiment Figures

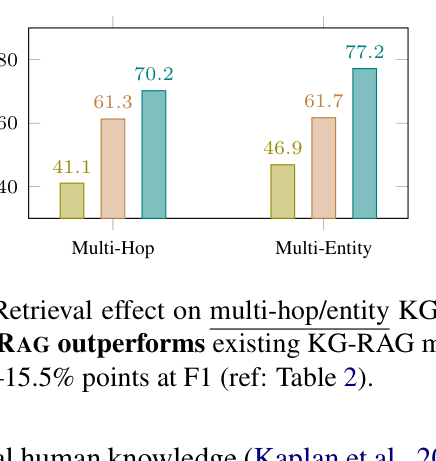

Bar chart comparing F1 scores of No RAG, KG-RAG (RoG), and GNN-RAG on multi-hop and multi-entity questions.

Main Takeaways

GNN-RAG significantly outperforms LLM-based retrieval (RoG) and long-context retrieval (SubgraphRAG) on complex, multi-hop questions, validating the effectiveness of dense graph reasoning.
Combining GNN-RAG with Retrieval Augmentation (+RA) and Routing (+Route) further boosts performance, surpassing even GPT-4 based baselines (ToG+GPT-4) on complex benchmarks.
The method is highly efficient, requiring 9x fewer KG tokens than long-context approaches and reducing latency by avoiding multiple LLM calls during retrieval.

📚 Prerequisite Knowledge

Prerequisites

Knowledge Graphs (KG) structure (entities, relations, triplets)
Graph Neural Networks (GNNs) and message passing
Retrieval-Augmented Generation (RAG)
Shortest path algorithms

Key Terms

KGQA: Knowledge Graph Question Answering—answering natural language questions using structured data in a knowledge graph

GNN: Graph Neural Network—a neural network designed to process graph-structured data by aggregating information from neighboring nodes

RoG: Reasoning on Graphs—a baseline method where an LLM generates relational paths as plans for retrieval

ToG: Think-on-Graph—a baseline method using an LLM to iteratively traverse the knowledge graph hop-by-hop

Reasoning Path: The sequence of triplets connecting a question entity to an answer entity (e.g., Entity A -> relation 1 -> Entity B -> relation 2 -> Answer)

Dense Subgraph: A subset of the knowledge graph extracted around the question entities, retaining all local connections rather than a single path

H@1: Hits at 1—Accuracy metric measuring if the top-1 predicted answer is correct

SBERT: Sentence-BERT—a modification of the BERT network to derive semantically meaningful sentence embeddings

PageRank Nibble: A local clustering algorithm used to approximate PageRank vectors for extracting relevant subgraphs around seed nodes
