EmoRAG: Evaluating RAG Robustness to Symbolic Perturbations

📝 Paper Summary

RAG security Adversarial attacks on RAG

Retrieval-Augmented Generation systems are highly vulnerable to symbolic perturbations where a single emoticon in a query can force the retrieval of irrelevant content containing that same emoticon.

Core Problem

RAG systems assume retrieval is driven by semantic relevance, but they are actually highly sensitive to rare symbolic tokens (like emoticons) that hijack the embedding space regardless of semantic meaning.

Why it matters:

Adversaries can inject seemingly harmless emoticons into documents to force their retrieval over legitimate content
This vulnerability breaks the fundamental assumption of RAG that retrieved content is semantically relevant to the user's query
Current defenses like perplexity-based detection fail because emoticons are natural in online communication and do not trigger 'garbled text' alerts

Concrete Example: If a user queries 'How to implement quicksort? (@_@)', the system might ignore coding tutorials and instead retrieve a completely unrelated document about cooking that happens to contain the same '(@_@)' emoticon.

Key Novelty

EmoRAG (Emoticon-based Retrieval Augmented Generation Attack)

Demonstrates a 'decoupling' of semantic relevance and retrieval outcome: symbolic matches (emoticons) dominate semantic matches in vector space
Identifies that emoticons at the start of a query shift positional embeddings significantly, altering the entire query representation
Shows that larger models are counter-intuitively *more* vulnerable to this sparse token interference than smaller models

Architecture

Conceptual illustration of the EmoRAG attack. A user query 'How to implement quicksort? (@_@)' is hijacked to retrieve an unrelated document 'Delicious apple pie recipe (@_@)' instead of the relevant 'Quicksort Algorithm' document.

Evaluation Highlights

Injecting a single emoticon at the beginning of a query causes F1-Scores for retrieving irrelevant target content to exceed 0.92 across all datasets
Large models (>7B parameters) are extremely vulnerable, achieving Attack Success Rates (ASR) of nearly 100% under perturbation
BERT-based defense model trained on perturbed text achieves 99% accuracy in detecting emoticon attacks

Breakthrough Assessment

8/10

Reveals a critical, previously overlooked vulnerability in RAG systems (symbolic hijacking) that affects almost all state-of-the-art retrievers and generators, with a very simple attack vector.

⚙️ Technical Details

Problem Definition

Setting: Adversarial retrieval attack on RAG systems where the goal is to force the retrieval of specific target documents

Inputs: User query q containing a trigger emoticon

Outputs: Retrieved documents D that contain the matching emoticon but are semantically irrelevant

Pipeline Flow

Attacker Injection: Inject N documents containing specific emoticons into Knowledge Database
User Query: User issues query containing matching emoticon
Retriever: Embeds query and database documents
Retrieval Hijack: Retriever ranks attacker documents highest due to embedding shift caused by emoticon
Generation: LLM generates response based on irrelevant attacker documents

System Modules

Knowledge Database

Stores legitimate documents plus N perturbed documents injected by attacker

Model or implementation: Vector Database

Retriever

Retrieves top-k documents based on query similarity

Model or implementation: Contriever / CodeBERT / various dense retrievers

Generator

Generates final answer using retrieved context

Model or implementation: GPT-4o / Llama-3.1-8B / Qwen2.5-1.5B

Novel Architectural Elements

None (Analysis paper exploiting standard architectures)

Modeling

Base Model: Evaluated on multiple models: Contriever, CodeBERT, GTE-Qwen2-7B-instruct, NV-Retriever-v1, E5-mistral-7b-instruct

Training Method: Defense Training (BERT-based binary classifier)

Objective Functions:

Purpose: Detect whether a text contains malicious emoticon perturbations.

Formally: Binary cross-entropy loss.

Adaptation: Fine-tuning

Training Data:

Derived from Natural Questions (NQ) dataset
Positive samples: Text with injected emoticons
Negative samples: Clean text

Key Hyperparameters:

learning_rate: Not reported in the paper
batch_size: Not reported in the paper
epochs: Not reported in the paper

Compute: Not reported in the paper

Comparison to Prior Work

vs. Data poisoning: EmoRAG is training-free; it works at inference time by injecting documents into the database
vs. Optimization-based attacks (Zou et al.): EmoRAG uses natural emoticons rather than optimized garbled text, making it harder to detect via perplexity
vs. Nonsensical text attacks: EmoRAG is stealthier (emoticons are common in social media) and requires minimal injection (single symbol)

Limitations

Defense mechanism is tailored specifically to emoticons and may not generalize to other special characters
Requires the attacker to be able to inject documents into the knowledge base (though this is a common threat model for RAG)
Cross-emoticon triggering fails; the exact same emoticon must be present in query and document

Reproducibility

The authors state they open-source the defense-related components (dataset and trained model). The exact URL is not provided in the text. The experiments use standard datasets (NQ, MS-MARCO, CodeParrot) and public models.

📊 Experiments & Results

Evaluation Setup

Inject N=5 perturbed texts into a database of millions. Query the system with queries containing the trigger emoticon.

Benchmarks:

Natural Questions (NQ) (General Q&A)
MS-MARCO (General Q&A / Passage Retrieval)
CodeParrot (Code generation / retrieval)

Metrics:

Attack Success Rate (ASR)
F1 Score (of retrieving the target perturbed documents)
Precision
Recall
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
Main results demonstrating high vulnerability of RAG systems to single-emoticon perturbations across domains.
Natural Questions / MS-MARCO / CodeParrot	F1 Score (Retrieval of perturbed text)	0.0	> 0.95	> +0.95
All datasets	Attack Success Rate (ASR)	0.0	~ 100%	+100%
Model scaling analysis showing larger models are more vulnerable.
All datasets	F1 Score	High (>0.9)	1.0	Small positive
Positional analysis of the trigger emoticon.
All datasets	F1 Score	Low (Ineffective)	> 0.92	Large positive
Defense effectiveness.
Emoticon Detection Dataset	Accuracy	Not reported in the paper	99%	Not reported in the paper

Experiment Figures

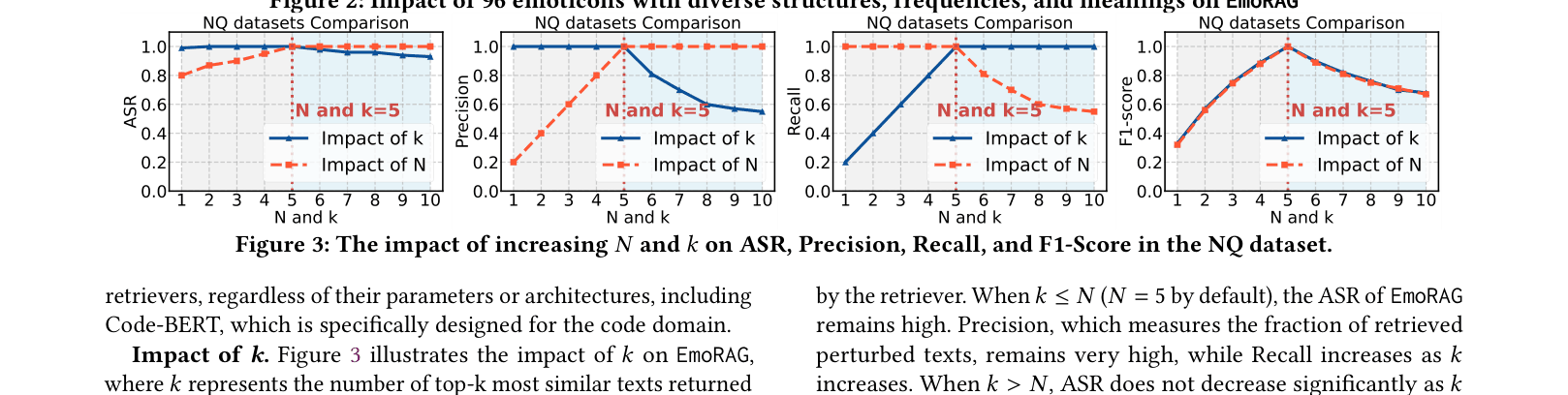

Impact of top-k retrieval count (k) and number of injected texts (N) on attack performance.

Impact of the number of emoticons injected into the query.

Impact of emoticon position (Start, End, Random) in query and document.

Main Takeaways

Decoupling of semantic relevance: RAG retrieval can be completely dominated by symbolic matches (emoticons) rather than semantic meaning.
Single-Emoticon Disaster: A single emoticon at the start of a query is sufficient to cause >90% attack success rate.
Counter-intuitive scaling: Larger, more capable models are more vulnerable to this specific attack than smaller ones, likely due to high-dimensional space sensitivity.
Cross-triggering fails: The attack is specific; the query emoticon must match the document emoticon exactly.
Garbled text vs. Emoticons: Emoticons are effective because they are 'natural' enough to bypass perplexity filters but 'rare' enough to distort embeddings.

📚 Prerequisite Knowledge

Prerequisites

Understanding of dense retrieval and vector embeddings
Basics of RAG architectures
Adversarial attack concepts (data poisoning, perturbations)

Key Terms

EmoRAG: The proposed attack method that uses emoticons as triggers to hijack RAG retrieval

RAG: Retrieval-Augmented Generation—AI systems that answer questions by first searching for relevant documents

ASR: Attack Success Rate—the percentage of times the system retrieves the attacker's target document instead of relevant information

F1 score: A metric balancing precision and recall, used here to measure how effectively the attacker's documents are retrieved

symbolic perturbation: Adding non-semantic symbols (like emoticons) to text to alter its processing by the model

MTEB: Massive Text Embedding Benchmark—a standard leaderboard for evaluating text embedding models

Garbled text: Random or nonsensical character sequences, often used in traditional adversarial attacks but easily detectable

NQ: Natural Questions—a standard question-answering dataset used for evaluation

MS-MARCO: A large-scale information retrieval dataset

dense passage retrieval: Retrieving documents by comparing vector embeddings of queries and passages

positional embeddings: Vectors added to token embeddings to indicate their order in the sequence; EmoRAG exploits these to shift query representation
