Benchmarking Multimodal CoT Reward Model Stepwise by Visual Program

📝 Paper Summary

Multimodal Reward Models Chain-of-Thought (CoT) Reasoning

SVIP automatically creates step-by-step multimodal reward models by generating Python code to solve visual tasks, executing the code to verify logic and facts, and translating valid execution traces into training data.

Core Problem

Training reward models for multimodal LLMs is difficult because manual step-by-step annotation is expensive, and existing methods rely on coarse, one-dimensional 'final answer' outcomes that ignore intermediate reasoning errors.

Why it matters:

Outcome-based supervision (only checking if the final answer is right) fails to correct flawed reasoning steps that accidentally lead to the right answer
Current reward models are one-dimensional (score 0-1) and cannot distinguish between different error types like logic failures vs. visual misperception
Scalable inference-time scaling (like OpenAI o1) requires high-quality, fine-grained verifiers, which are currently lacking for multimodal tasks

Concrete Example: A model might correctly count '5 dogs' but identify them as 'Labradors' when they are 'Poodles'. A standard outcome reward model might accept '5' as correct, reinforcing the hallucinated breed. SVIP detects the attribute error by checking the visual module's output against a verifier.

Key Novelty

Stepwise Visual Program (SVIP)

Uses visual programming (generating Python code) as a proxy for Chain-of-Thought, allowing rigorous automated verification of intermediate steps via code execution
Translates code execution traces (logic checks, compilation status, function returns) into natural language CoT steps with 3D labels: Relevance, Logic, and Attribute
Introduces TriAtt-CoT, a multi-head attention mechanism for reward models that specifically attends to these three distinct dimensions of reasoning quality

Architecture

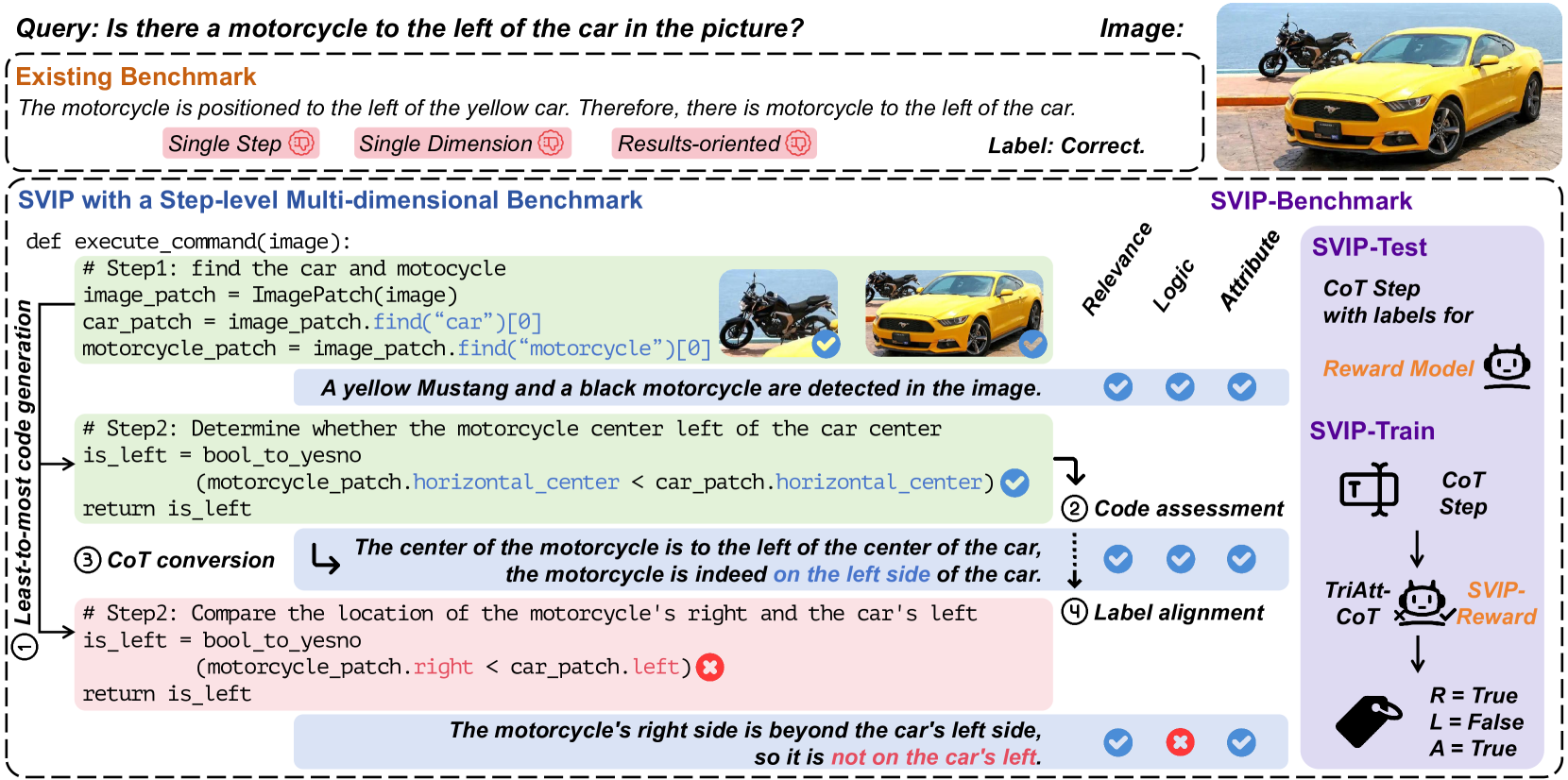

The SVIP framework pipeline: Code Generation -> Code Assessment -> CoT Conversion -> Alignment.

Evaluation Highlights

+6.3% improvement on the SVIP-Test benchmark for Qwen2-VL-7B when tuned with SVIP-generated data compared to the baseline
SVIP-Reward models achieve a +5.95% average improvement on SVIP-Test compared to standard fine-tuning, demonstrating the value of the specialized reward architecture
Reduces hallucinations and improves reasoning on general benchmarks like MME and MMMU by providing fine-grained, step-level supervision

Breakthrough Assessment

8/10

Cleverly bypasses the manual annotation bottleneck for CoT by leveraging code execution. The mapping of code errors to specific CoT error types (logic vs. attribute) is a significant methodological advance for reward modeling.

⚙️ Technical Details

Problem Definition

Setting: Training a Step-level Multi-dimensional Reward Model for Multimodal Large Language Models (MLLMs)

Inputs: Visual input v, Query q, and a candidate Chain-of-Thought step s

Outputs: Reward scores for three dimensions: Relevance, Logic, and Attribute

Pipeline Flow

Input Processing: Multimodal Input (Image + Text) -> Feature Extraction
Feature Attention: TriAtt-CoT Multi-Head Attention
Scoring: Multi-dimensional Scoring Head

System Modules

Input Encoder

Encode visual and textual inputs into embeddings

Model or implementation: Based on Qwen2-VL or InternVL2.5 (as per experiments)

TriAtt-CoT

Extract distinct features for three evaluation dimensions: Relevance, Logic, and Attribute

Model or implementation: Custom Tri-head Attention Layer

Scoring Head

Predict reward scores for each dimension based on extracted features

Model or implementation: Linear Projection / Classifier

Novel Architectural Elements

TriAtt-CoT: A tri-head attention layer inserted before the scoring head to explicitly separate features for Relevance (compilability), Logic (reasoning correctness), and Attribute (visual factuality)

Modeling

Base Model: Qwen2-VL-7B and InternVL2.5-2B

Training Method: Supervised Fine-Tuning (for SVIP-Train generation) and Contrastive Learning (for SVIP-Reward)

Objective Functions:

Purpose: Optimize the reward model to distinguish correct steps from incorrect ones across three dimensions.

Formally: Contrastive loss between positive and negative samples derived from code execution labels.

Training Data:

SVIP-Train: 7,948 program-derived CoT samples with 20,000 steps
Generated via Least-to-Most prompting of a code generator
Labels derived from code execution: Compilation status (Relevance), PropTest (Logic), Cross-validation (Attribute)

Compute: Not reported in the paper

Comparison to Prior Work

vs. Deepseek-R1: SVIP targets multimodal tasks rather than pure text/math, and provides step-level intermediate supervision rather than just final outcome
vs. VPD: SVIP focuses on training a Reward Model for verification rather than just distilling the policy [not cited in paper as direct baseline, but conceptual ancestor]
vs. Traditional CoT Reward Models (e.g., Lightman et al.): SVIP introduces multi-dimensional labels (Relevance/Logic/Attribute) instead of a single scalar score

Limitations

Relies on the quality of the underlying code generator; if the generator cannot solve the task, no training data is created
Attribute verification depends on external models (e.g., De-fine), inheriting their potential biases or errors
Evaluation is heavily focused on the constructed SVIP-Test benchmark, though general benchmarks (MME, MMMU) are also tested

Reproducibility

Code: https://github.com/minghehe-nobug/SVIP

publicly available (https://github.com/minghehe-nobug/SVIP). The repository contains code and the SVIP-Train/Test datasets.

📊 Experiments & Results

Evaluation Setup

Reward Model accuracy testing and MLLM performance evaluation via Rejection Sampling/Best-of-N

Benchmarks:

SVIP-Test (Multimodal Chain-of-Thought Reasoning) [New]
MME (Multimodal Evaluation (Perception/Cognition))
MMMU (Multimodal Multi-discipline Understanding)

Metrics:

Accuracy (on SVIP-Test)
Hallucination Rate
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
Performance gains on the newly constructed SVIP-Test benchmark using the proposed data tuning.
SVIP-Test	Accuracy Improvement	0.0	6.3	+6.3
SVIP-Test	Accuracy Improvement	0.0	2.3	+2.3
Impact of the specialized TriAtt-CoT reward architecture compared to standard tuning.
SVIP-Test	Accuracy Improvement	0.0	5.95	+5.95

Experiment Figures

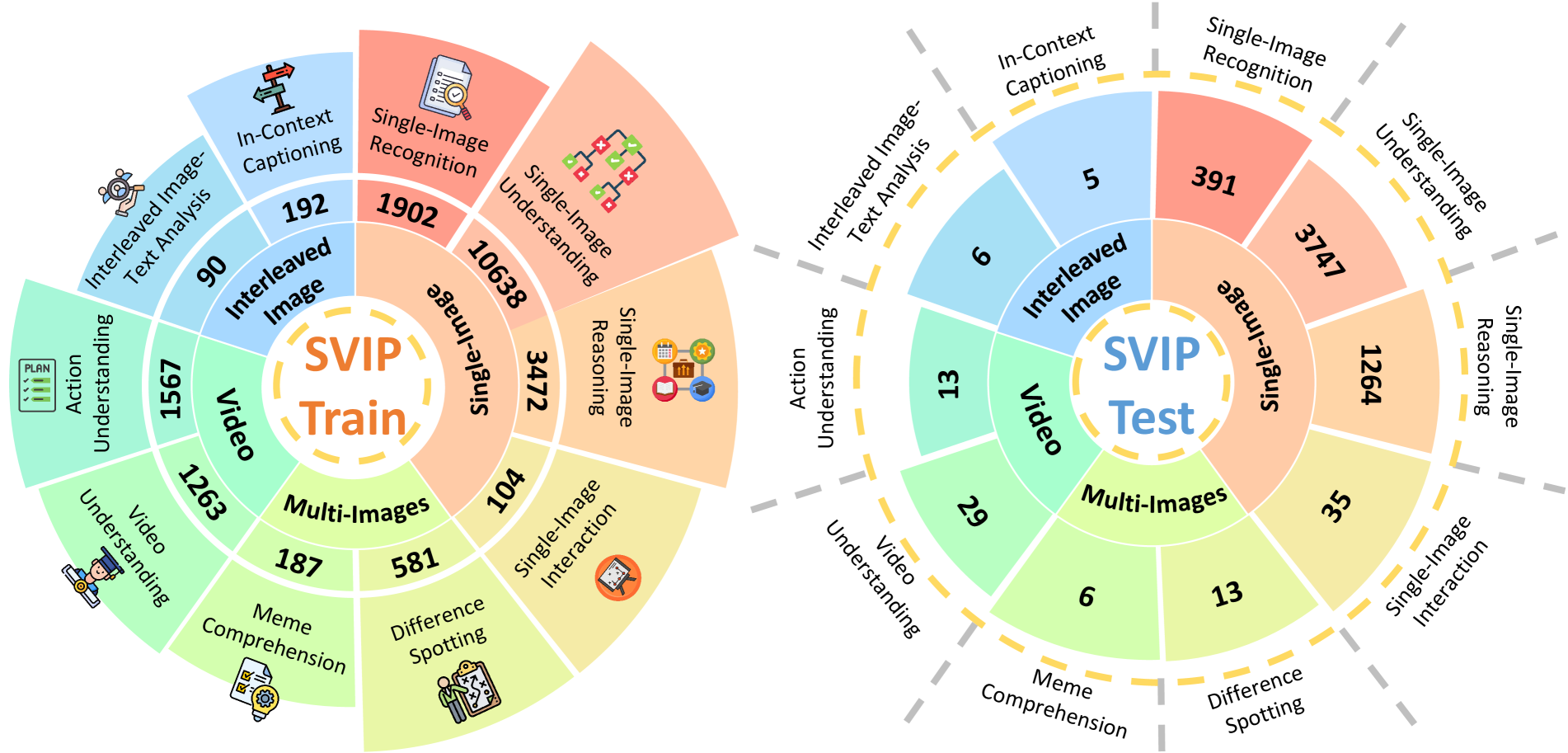

Overview of the SVIP-Train and SVIP-Test benchmarks, showing task diversity and sample counts.

Main Takeaways

SVIP-Reward effectively distinguishes between different types of reasoning errors (Logic vs Attribute), which standard single-scalar reward models fail to do.
The generated SVIP-Train data provides valuable supervision for reasoning-heavy benchmarks like MME and MMMU.
Inference-time scaling using SVIP-Reward signals significantly improves performance, confirming the model's utility as a verifier.

📚 Prerequisite Knowledge

Prerequisites

Chain-of-Thought (CoT) Prompting
Visual Programming (generating code to solve visual tasks)
Reward Modeling / Reinforcement Learning from Human Feedback (RLHF)

Key Terms

Visual Programming: A method where an LLM generates executable code (e.g., Python) to solve a task, often calling external tools or modules for visual processing

TriAtt-CoT: A multi-head attention mechanism proposed in this paper that extracts features specifically for Relevance, Logic, and Attribute dimensions

Least-to-Most Prompting: A prompting strategy where a complex problem is decomposed into sub-problems, solved sequentially

Inference-time scaling: Improving model performance by spending more compute during generation (e.g., generating multiple candidates and selecting the best one with a reward model)

PropTest: A technique to verify code logic by generating test cases or checking variable formats
