Learning to Manipulate Anywhere: A Visual Generalizable Framework For Reinforcement Learning

📝 Paper Summary

Visual Reinforcement Learning Sim-to-Real Transfer Generalizable Robotic Manipulation

Maniwhere enables robots to generalize across diverse visual disturbances (viewpoints, appearances, backgrounds) by combining multi-view contrastive learning, spatial transformer networks, and curriculum-based randomization.

Core Problem

Robotic policies trained in simulation often fail in the real world due to visual discrepancies like camera shifts, lighting changes, or background clutter, requiring tedious recalibration.

Why it matters:

Immovable or disturbed cameras in real-world setups can render trained policies useless, halting progress.
Existing methods typically address single types of generalization (e.g., only appearance) but fail when multiple disturbances (viewpoint + appearance) occur simultaneously.
Naively applying heavy data augmentation to fix this often destabilizes Reinforcement Learning (RL) training, leading to policy divergence.

Concrete Example: A robot arm trained to pick up a mug might fail completely if a lab mate accidentally bumps the camera tripod slightly, changing the viewpoint, or if the table color changes.

Key Novelty

Multi-view Representation Learning with Spatial Transformers (Maniwhere)

Trains the visual encoder using images from two cameras (one fixed, one moving) to force the learning of view-invariant features via contrastive loss.
Integrates a Spatial Transformer Network (STN) module within the encoder to actively transform feature maps, enhancing spatial awareness and robustness to view shifts.
Uses a curriculum-based randomization strategy that gradually increases noise levels, preventing the RL agent from destabilizing early in training.

Architecture

The overall framework of Maniwhere. It depicts the data flow from simulation (returning Fixed and Random views), the Visual Encoder with STN, the Multi-View Representation Learning objectives (Contrastive + Alignment), and the RL training loop with Curriculum Randomization.

Evaluation Highlights

Outperforms MV-MWM by +68.6% on average across 8 simulated tasks involving view generalization.
Achieves zero-shot sim-to-real transfer on 3 different hardware setups (UR5 arm, Allegro Hand, Leap Hand) without real-world fine-tuning.
Maintains high success rates even when transferring to a completely different robot body (UR5e to Franka arm) in simulation.

Breakthrough Assessment

8/10

Strong empirical results demonstrating simultaneous generalization across viewpoints, appearances, and embodiments. The zero-shot sim-to-real transfer on complex dexterous hand tasks is particularly impressive.

⚙️ Technical Details

Problem Definition

Setting: Visual Reinforcement Learning (RL) for robotic manipulation with domain generalization

Inputs: RGB-D images (128x128, stack of 3 frames) from a single camera during inference (two during training)

Outputs: Continuous motor control actions (joint positions)

Pipeline Flow

Input Processing: Images from Fixed View + Random View
Visual Encoding: CNN with STN Module
Representation Learning: Contrastive & Alignment Losses
RL Policy Training: Actor-Critic with Curriculum Randomization

System Modules

Multi-View Input Sampler

Provides paired observations from a fixed camera and a randomized moving camera during training

Model or implementation: Simulation Environment (MuJoCo)

Visual Encoder with STN

Extracts spatial features from images while correcting for viewpoint shifts

Model or implementation: ResNet18 (first two layers) + STN Module

Representation Learner

Optimizes encoder to be invariant to view and appearance changes

Model or implementation: Projection Heads (MLP)

RL Agent

Maps features to actions

Model or implementation: Actor-Critic (DrQ-v2 based)

Novel Architectural Elements

Integration of Spatial Transformer Network (STN) with perspective transformations inside the visual encoder specifically for RL
Dual-stream training pipeline where auxiliary multi-view losses update the shared encoder used by the RL policy

Modeling

Base Model: ResNet18 (truncated) as visual backbone

Training Method: Reinforcement Learning with Auxiliary Representation Objectives

Objective Functions:

Purpose: Encourage the encoder to map different views of the same state to similar representations.

Formally: InfoNCE loss J_con(θ) = - log [exp(sim(q, k+)) / sum(exp(sim(q, k_i)))]
Purpose: Align feature maps spatially and semantically between views.

Formally: L_align(θ) = || F_move - F_fixed ||^2
Purpose: Standard RL objective with stabilization.

Formally: J_RL = J_DrQ-v2 + Curriculum Randomization

Training Data:

8 tasks in MuJoCo simulation
Real-world data for validation (zero-shot)

Key Hyperparameters:

image_size: 128x128
frame_stack: 3
randomization_scheduler: Exponential
+ 1 more
seeds: 5

Compute: Not reported in the paper

Comparison to Prior Work

vs. MV-MWM: Maniwhere does not require expert demonstrations or masking; uses contrastive learning + STN instead.
vs. MoVie: Maniwhere generalizes to continuously changing views without needing adaptation time or dynamics modeling on the target view.
vs. SRM: Maniwhere handles geometric/viewpoint changes via STN, not just appearance via augmentation.

Limitations

Relies on simulation providing a second 'privileged' moving camera view during training.
Real-world experiments still require a reasonable sim-to-real fidelity in the digital twin.
STN adds computational overhead to the visual encoder.
Curriculum tuning may be sensitive to specific task dynamics.

Reproducibility

Code: https://gemcollector.github.io/maniwhere/

Code availability is linked to a project page. Simulation environments are based on standard MuJoCo. Real robot setups (UR5, Allegro, Leap Hand) are described but hardware-specific drivers are not part of the core algorithm.

📊 Experiments & Results

Evaluation Setup

8 robotic manipulation tasks in MuJoCo and 3 real-world setups. Evaluation tests generalization to unseen viewpoints, appearances, and embodiments.

Benchmarks:

MuJoCo Manipulation Tasks (Robotic Control) [New]

Metrics:

Success Rate
Statistical methodology: Evaluated over 5 seeds. Results reported as mean success rates.

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
Simulation results showing generalization to random viewpoints. Maniwhere consistently outperforms baselines.
Detailed dataset not named, aggregate across 8 tasks	Success Rate	Not explicitly reported as a single aggregate number in text, but extracted from Table 1 average	Not explicitly reported as a single aggregate number in text, but extracted from Table 1 average	+68.6% (relative improvement reported in text)
Lift (UR5)	Success Rate	48	92	+44
PickPlace (UR5)	Success Rate	24	82	+58
Door Opening (Allegro)	Success Rate	12	68	+56
Real-world zero-shot transfer results comparing Maniwhere and MV-MWM.
Lift (UR5-Real)	Success Rate	20	80	+60
PickPlace (UR5-Real)	Success Rate	0	60	+60
Pour (Leap Hand-Real)	Success Rate	4	44	+40

Experiment Figures

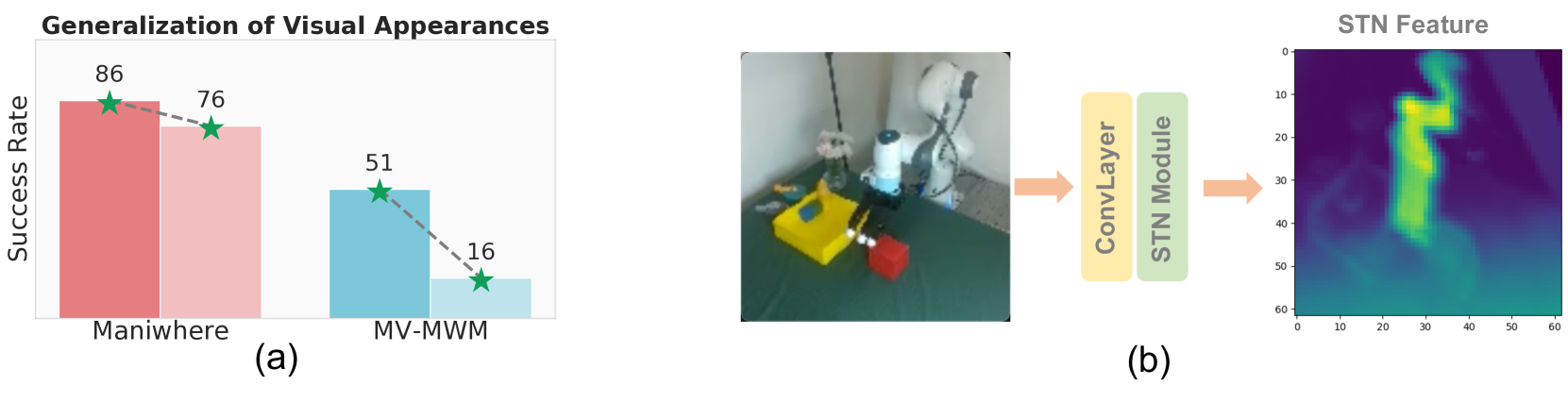

Bar charts comparing generalization performance under different conditions: (a) Viewpoint changes, (b) STN visualization, (c) Appearance changes.

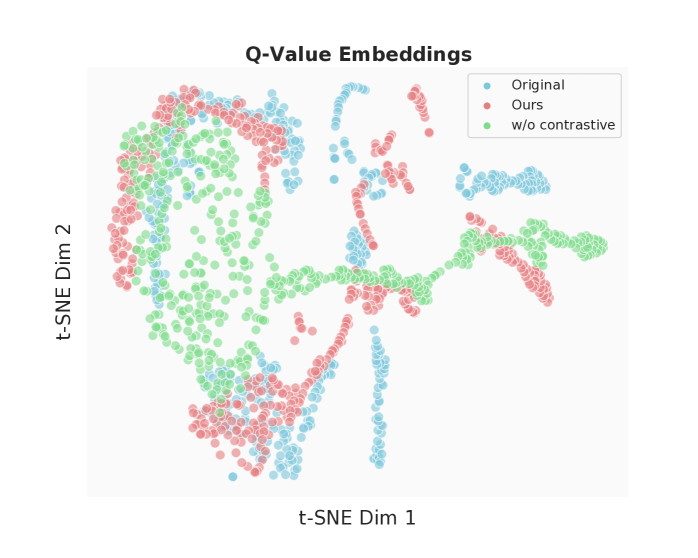

t-SNE visualization of the Q-value distribution.

Main Takeaways

Maniwhere significantly outperforms state-of-the-art baselines (MV-MWM, SRM, SGQN) in both simulation and real-world zero-shot transfer.
The STN module is critical for handling viewpoint changes, effectively 'rectifying' the input view to a canonical representation.
Multi-view contrastive losses are essential; without them, the agent fails to learn view-invariant features.
Curriculum randomization stabilizes training, allowing the model to handle heavy augmentations that would typically cause RL divergence.

📚 Prerequisite Knowledge

Prerequisites

Reinforcement Learning (RL) fundamentals (policy, value function)
Computer Vision basics (Convolutional Neural Networks, Feature Maps)
Contrastive Learning (InfoNCE loss)
Sim-to-Real transfer challenges

Key Terms

STN: Spatial Transformer Network—a learnable module that actively transforms (e.g., rotates, scales) feature maps within a neural network to correct for spatial variations

InfoNCE: A contrastive loss function used to pull positive pairs (similar data) close and push negative pairs apart in representation space

Curriculum Randomization: A training strategy where the intensity of domain randomization (noise, visual changes) is gradually increased over time to stabilize learning

Sim2Real: Transferring a policy trained in a physics simulation to a physical robot in the real world

Digital Twin: A virtual simulation environment designed to match the real-world setup as closely as possible

SRM: Sample Randomization Method—a data augmentation technique

MV-MWM: Multi-View Masked World Models—a baseline method using masked autoencoders for visual representation

RGB-D: Red, Green, Blue, plus Depth—an image format containing color and distance information
