Execution-Grounded Credit Assignment for GRPO in Code Generation

📝 Paper Summary

Code Generation Reinforcement Learning with Verifiable Rewards (RLVR) Credit Assignment

EGCA improves code generation by identifying the first executed token where a near-correct candidate diverges from a reference solution, assigning precise credit instead of uniform rewards.

Core Problem

Standard unit-test rewards are temporally coarse, applying a single pass/fail signal to an entire program rather than the specific decision causing failure.

Why it matters:

Modern models often produce syntactically valid and structurally plausible code that fails due to subtle localized semantic errors.
Group-based policy gradients (like GRPO) distribute outcome signals uniformly, providing gradients too diffuse to correct these localized reasoning errors.
Existing dense feedback methods (like step-level masking) do not distinguish causal errors in fully executed programs.

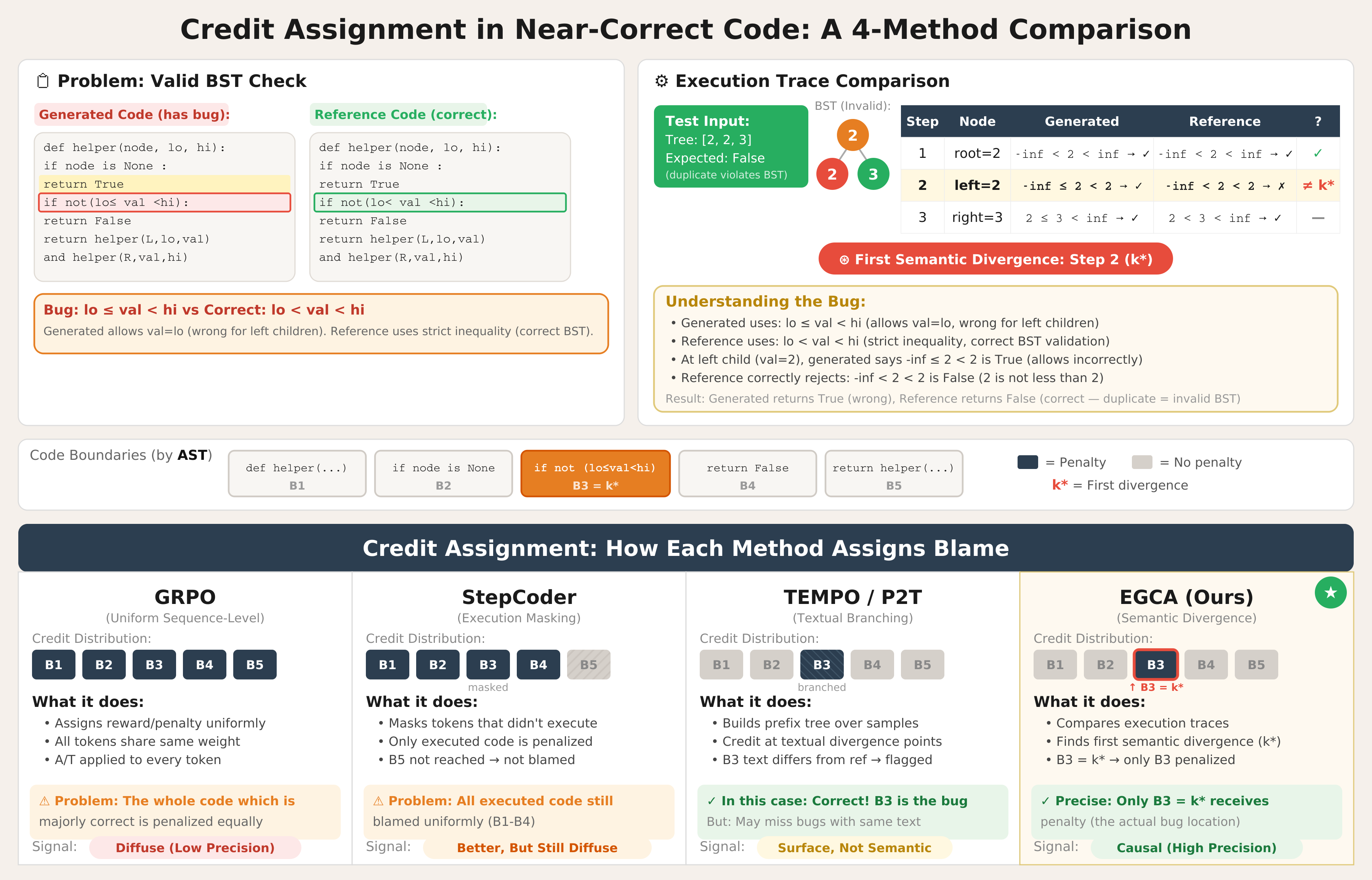

Concrete Example: A generated program might be structurally correct and execute fully but fail a test because of a single incorrect condition or off-by-one error. Standard GRPO penalizes the entire program sequence equally, failing to pinpoint the specific token responsible for the logic error.

Key Novelty

Execution-Grounded Credit Assignment (EGCA)

Routes samples through deterministic gates (syntax/constraint/logic); for logic errors, it compares execution traces against a canonical reference to find the first divergence.
Assigns advantage only to the causal token span identified by the divergence and masks all downstream tokens, concentrating the gradient signal where it matters.
Operates entirely without a learned critic or auxiliary value function, modifying only the token-level weighting within the standard GRPO objective.

Evaluation Highlights

+3.1% pass@1 improvement on HumanEval (82.1%) over vanilla GRPO (79.0%) using DeepSeek-Coder-Instruct-6.7B.
+1.5% pass@1 improvement on MBPP (68.9%) over vanilla GRPO (67.4%).
Outperforms the stronger 1.5B-parameter debugger model itself by +8.2 points, proving the method extracts localization signals rather than just distilling teacher competence.

Breakthrough Assessment

8/10

Elegantly solves the credit assignment problem in RLVR without training expensive critics. The consistent gains over strong baselines and the demonstration that it surpasses its own debugger make it a significant practical advance.

⚙️ Technical Details

Problem Definition

Setting: Code generation from natural language specifications validated by unit tests.

Inputs: Programming problem x (natural language spec + unit tests)

Outputs: Generated program y

Pipeline Flow

Policy Sampling (Generate G programs)
Constraint & Syntax Gating
Execution & Trace Comparison (Logic Mode)
Advantage Computation (Masking downstream tokens)

System Modules

Policy

Generates candidate programs given a problem description

Model or implementation: DeepSeek-Coder-Instruct-6.7B

Failure Mode Classifier (Analysis)

Routes candidates to 'syntax', 'constraint', or 'logic' handling based on execution result and structural checks

Model or implementation: Deterministic rules + AST/CFG parser

Debugger / Localizer (Analysis)

For logic errors, compares candidate trace with reference trace to find first semantic divergence

Model or implementation: Qwen2.5-Coder-7B-Instruct (used as analysis tool, not generator)

Novel Architectural Elements

Integration of execution trace comparison directly into the credit assignment operator of GRPO.
Dual-trace localization: executing both candidate and reference on the failing input to pinpoint semantic divergence.

Modeling

Base Model: DeepSeek-Coder-Instruct-6.7B

Training Method: Group Relative Policy Optimization (GRPO) with modified advantage estimation

Objective Functions:

Purpose: Optimize policy to maximize expected reward while staying close to reference policy.

Formally: Standard GRPO objective but with localized advantage terms a_{i,t} that are zeroed out for tokens downstream of the identified failure.

Training Data:

APPS+ dataset (curated version of APPS for RL)
Canonical reference solutions used for trace comparison (not training targets)

Key Hyperparameters:

group_size_G: 16
learning_rate: 5e-7
beta: 0.05
+ 2 more
epsilon: 0.2
optimizer: AdamW

Compute: 8x NVIDIA A100 80GB GPUs; 18% wall-clock overhead compared to standard GRPO

Comparison to Prior Work

vs. StepCoder: StepCoder masks unexecuted code; EGCA masks executed but non-causal code downstream of the first error.
vs. RLTF: RLTF improves the reward signal scalar; EGCA improves the temporal assignment of that signal to specific tokens.
vs. CodeRL+: EGCA remains critic-free and does not require training auxiliary value estimators.

Limitations

Requires a canonical reference solution for every training problem to enable trace comparison.
Relies on a capable debugger model to parse traces; if the debugger fails, localization degrades.
Most effective in the 'near-correct' regime; offers less benefit for models that produce syntax errors or structurally invalid code.
Constraint extraction might exclude correct but structurally novel solutions that differ significantly from the reference.

Reproducibility

Method relies on an external 'debugger' LLM (Qwen2.5-Coder-7B) for trace analysis. Uses APPS+ dataset. Reference solutions are required for the training set (offline curation). Hyperparameters provided in Appendix H.

📊 Experiments & Results

Evaluation Setup

Code generation evaluated on functional correctness (pass@1).

Benchmarks:

HumanEval (Function synthesis)
MBPP (Function synthesis)

Metrics:

pass@1
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
Main results showing EGCA outperforms baselines on standard benchmarks.
HumanEval	pass@1	79.0	82.1	+3.1
MBPP	pass@1	67.4	68.9	+1.5
HumanEval	pass@1	78.7	82.1	+3.4
HumanEval	pass@1	81.6	82.1	+0.5
Control experiments ruling out teacher distillation as the source of gains.
HumanEval	pass@1	70.7	78.9	+8.2

Main Takeaways

Precise credit assignment is the bottleneck in post-training, not just reward sparsity.
Localizing the *first* semantic divergence is more effective than masking unexecuted code (StepCoder) or using uniform updates.
The method is robust to the quality of the debugger model; even a weaker debugger (1.5B) provides sufficient signal for a stronger student (6.7B) to improve significantly.
Gains saturate as debugger size increases, suggesting that once localization is reliable, further debugger capability yields diminishing returns.

📚 Prerequisite Knowledge

Prerequisites

Reinforcement Learning (Policy Gradients)
Code Generation / Program Synthesis
Abstract Syntax Trees (AST) and Control Flow Graphs (CFG)

Key Terms

RLVR: Reinforcement Learning with Verifiable Rewards—using binary success signals (like passing unit tests) to optimize generative models.

GRPO: Group Relative Policy Optimization—an RL algorithm that estimates baselines from the mean reward of a group of sampled outputs rather than a learned value function.

Credit Assignment: The problem of determining which specific action (token) in a sequence is responsible for the final outcome (reward).

AST: Abstract Syntax Tree—a tree representation of the syntactic structure of source code.

CFG: Control Flow Graph—a representation of all paths that might be traversed through a program during execution.

Canonical Reference Solution: A correct solution to a coding problem used as a pivot for extracting constraints and comparing execution traces, not for direct imitation.

Execution Trace: The sequence of program states (variable values, line numbers) produced when running a piece of code.
