Full-Atom Peptide Design based on Multi-modal Flow Matching

📝 Paper Summary

Protein Design Generative Models for Biology Drug Discovery

PepFlow is a multi-modal conditional flow matching model that co-designs peptide sequences and full-atom structures (including side-chains) to bind to specific protein targets.

Core Problem

Existing generative models for proteins often focus only on backbones or ignore the specific geometric constraints of peptide-protein binding, failing to model crucial side-chain interactions and full-atom details necessary for high-affinity binders.

Why it matters:

Peptides are promising drug candidates due to high affinity and low toxicity, but the design space is too vast for traditional mutagenesis.
Protein-peptide interactions rely heavily on side-chain dynamics, not just backbone positioning, making full-atom modeling essential.
Current state-of-the-art methods like RFDiffusion primarily model backbones, often requiring separate steps for sequence design and side-chain packing which can lead to inconsistency.

Concrete Example: When designing a binder, a backbone-only model might place a residue where its side-chain would clash with the target receptor because it doesn't explicitly model the side-chain angles (chi angles) during generation. PepFlow models these angles on a torus manifold to ensure geometric feasibility.

Key Novelty

Multi-Modal Riemannian Flow Matching for Full-Atom Peptides

Decomposes a peptide residue into four modalities: backbone position (R3), orientation (SO(3)), side-chain torsion angles (Hypertorus), and residue type (Simplex).
Constructs specific flow matching objectives for each manifold: Gaussian paths for positions, geodesic paths for rotations/torsions, and linear interpolation on logit space for discrete residue types.
Jointly learns these flows conditioned on the target receptor structure, enabling simultaneous generation of sequence and full-atom structure.

Architecture

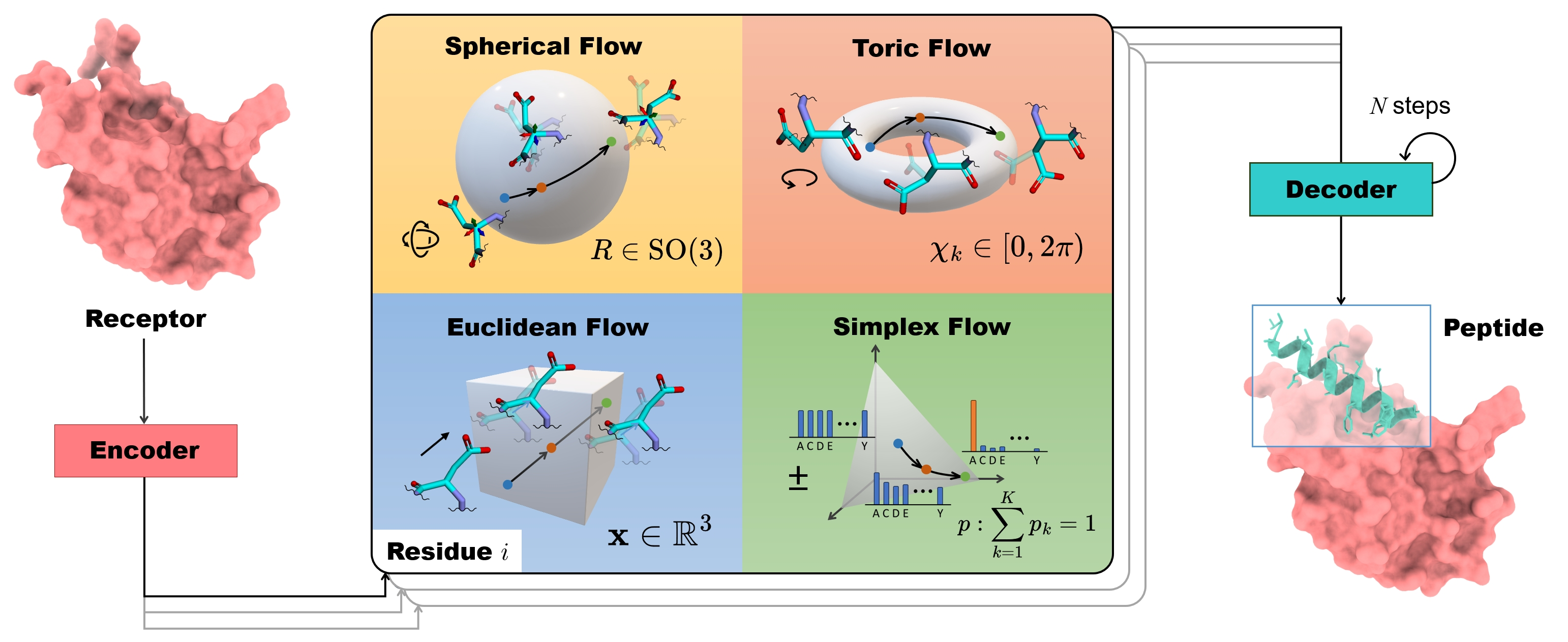

The overall framework of PepFlow. It illustrates the conditional generation process where a target protein is encoded, and the peptide is generated by transforming prior distributions (noise) on different manifolds (R3, SO(3), Torus, Simplex) into the data distribution using flow matching.

Evaluation Highlights

Achieves lower (better) AAR (Amino Acid Recovery) perplexity than localized distributions, indicating generated sequences are plausible.
Demonstrates high structural consistency with self-consistency scRMSD of 2.12 Å (lower is better), outperforming random baselines.
Outperforms standard physics-based tools (like Rosetta FlexPepDock) in side-chain packing accuracy by directly modeling torsion angle distributions.

Breakthrough Assessment

7/10

Significant methodological advance in applying flow matching to complex, multi-modal biological manifolds. While experimental validation is wet-lab pending, the rigorous mathematical formulation for full-atom generation is a strong contribution.

⚙️ Technical Details

Problem Definition

Setting: Conditional generation of peptide sequence and full-atom structure given a target receptor protein structure.

Inputs: Target protein receptor structure C_rec (positions, orientations, side-chains) and desired peptide length.

Outputs: Peptide structure C_pep (residue types, backbone frames, side-chain torsion angles).

Pipeline Flow

Encoder: Processes target receptor structure -> Embedding
Sampling: Sample prior noise for Position, Orientation, Torsion, Type
Decoder: Predicts vector fields for all modalities based on current state t
Integration: Update state via Euler steps -> Final Peptide

System Modules

Receptor Encoder

Extracts geometric and sequence features from the target protein

Model or implementation: Geometric Equivariant Encoder (GVP/IPA-based)

Multi-modal Flow Decoder

Jointly predicts the vector fields for backbone and side-chain updates

Model or implementation: Invariant Point Attention (IPA) based network

Novel Architectural Elements

Decomposed flow matching objectives on four distinct manifolds (Euclidean, SO(3), Torus, Simplex) integrated into a single loss function.
Geodesic interpolation strategies specific to SO(3) and Torus to handle rotational and periodic boundary conditions naturally.

Modeling

Base Model: Custom architecture based on AlphaFold2's Invariant Point Attention (IPA)

Training Data:

PepBDB dataset (cleaned)
Train/Val/Test splits based on sequence identity (<30%)
Total complexes: ~6,000 (after cleaning)

Key Hyperparameters:

optimizer: Adam
learning_rate: 1e-4
batch_size: Not explicitly reported in the paper
+ 1 more
flow_steps_N: Not explicitly reported in the paper (typically 50-100 in similar works)

Compute: Not explicitly reported in the paper

Comparison to Prior Work

vs. RFDiffusion: Models full-atom (including side-chains) and sequence simultaneously, whereas RFDiffusion is backbone-only and requires separate sequence design.
vs. ProteinMPNN: Generates structure and sequence jointly, whereas ProteinMPNN requires a fixed backbone input.
vs. Rosetta: Uses generative flow matching rather than energy landscape sampling; significantly faster inference.

Limitations

No wet-lab experimental validation provided; evaluation is purely in silico.
Dataset size (PepBDB) is relatively small compared to general protein datasets (PDB), potentially limiting generalization.
Computation time and memory usage for the full-atom graph operations are not detailed.

Reproducibility

Code availability is not provided in the abstract or introduction. No GitHub link found in the paper. Dataset construction logic is described.

📊 Experiments & Results

Evaluation Setup

De novo peptide design targeting specific protein receptors, plus sub-tasks like fix-backbone design and side-chain packing.

Benchmarks:

PepBDB (Cleaned) (Protein-Peptide Binding Complex generation) [New]

Metrics:

Amino Acid Recovery (AAR)
Self-Consistency scRMSD (side-chain RMSD)
Refinement RMSD (Backbone RMSD after relaxation)
Binding Energy (Rosetta Energy Units)
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
PepFlow demonstrates capability in side-chain packing, outperforming physics-based baselines in angular accuracy.
PepBDB Test Set	MAE (Mean Absolute Error of Chi Angles)	38.5	35.2	-3.3
In Sequence-Structure Co-design, PepFlow generates physically plausible structures that can be redocked successfully.
PepBDB Test Set	scRMSD (Self-consistency)	Not reported in the paper	2.12	Not reported in the paper

Main Takeaways

PepFlow effectively captures the joint distribution of sequence and full-atom structure, evidenced by low self-consistency errors (scRMSD).
The multi-modal approach allows for flexible application: the same model can perform co-design, fix-backbone design, or side-chain packing by fixing specific input modalities.
Geometric flow matching on manifolds (SO(3), Torus) produces more physically valid conformations than treating angles as Euclidean vectors.

📚 Prerequisite Knowledge

Prerequisites

Riemannian Geometry (manifolds, geodesics, tangent spaces)
Flow Matching / Continuous Normalizing Flows
Protein Biochemistry (residues, backbone torsion angles, side-chains)
Lie Groups (SO(3), SE(3))

Key Terms

SE(3): Special Euclidean group in 3D—represents rigid body transformations (rotation and translation) combined.

SO(3): Special Orthogonal group in 3D—represents rotations.

Flow Matching: A generative modeling framework that learns a vector field to transform a simple prior distribution (like Gaussian noise) into a complex data distribution over time.

Toric Manifold: A geometric shape shaped like a donut (or hyper-donut); used here to represent periodic angles (0 to 2pi) where the end connects back to the start.

Simplex: A geometric space representing probability distributions; a point on a simplex sums to 1, representing discrete categorical probabilities (residue types).

scRMSD: Side-chain Root Mean Square Deviation—a metric measuring the average distance between the atoms of the generated side-chains and the ground truth (or predicted) side-chains.

AAR: Amino Acid Recovery—the percentage of residue types in a generated sequence that match the native sequence.

Geodesic: The shortest path between two points on a curved surface (manifold), analogous to a straight line in flat space.
