PlanAgent: A Multi-modal Large Language Agent for Closed-loop Vehicle Motion Planning

📝 Paper Summary

Autonomous driving motion planning Multi-modal Large Language Models (MLLMs)

PlanAgent is a multi-modal agent that utilizes an MLLM with hierarchical reasoning and simulation-based reflection to generate robust vehicle motion planners for closed-loop autonomous driving.

Core Problem

Existing rule-based planners struggle with long-tailed scenarios, while learning-based methods often overfit and perform poorly in large-scale closed-loop settings due to lack of interpretability and common sense.

Why it matters:

Rule-based methods (like PDM) handle common driving well but fail in complex, rare situations (long-tail) requiring nuanced maneuvering
Current learning-based planners frequently fail in closed-loop evaluation despite open-loop success, suffering from cumulative errors
Previous LLM-based attempts rely on open-loop metrics or inefficient text representations of maps, limiting real-world applicability

Concrete Example: In a long-tailed scenario requiring complex maneuvers, rule-based methods may be too conservative or rigid, while PlanAgent can reason about the 'precautions in this type of scene' (e.g., merging at roundabouts) to adjust planner parameters dynamically.

Key Novelty

Closed-Loop Mid-to-Mid MLLM Planning Agent

Transforms environmental data into a hybrid prompt: a visual BEV map for global context and a lane-graph-based textual description for precise local topology, efficient for MLLMs
Uses a Reasoning Engine with a hierarchical chain-of-thought (CoT) to bridge high-level scene understanding with low-level Python code generation for an IDM planner
Integrates a Reflection module that validates generated planners via short-term simulation, filtering out unsafe proposals before execution

Architecture

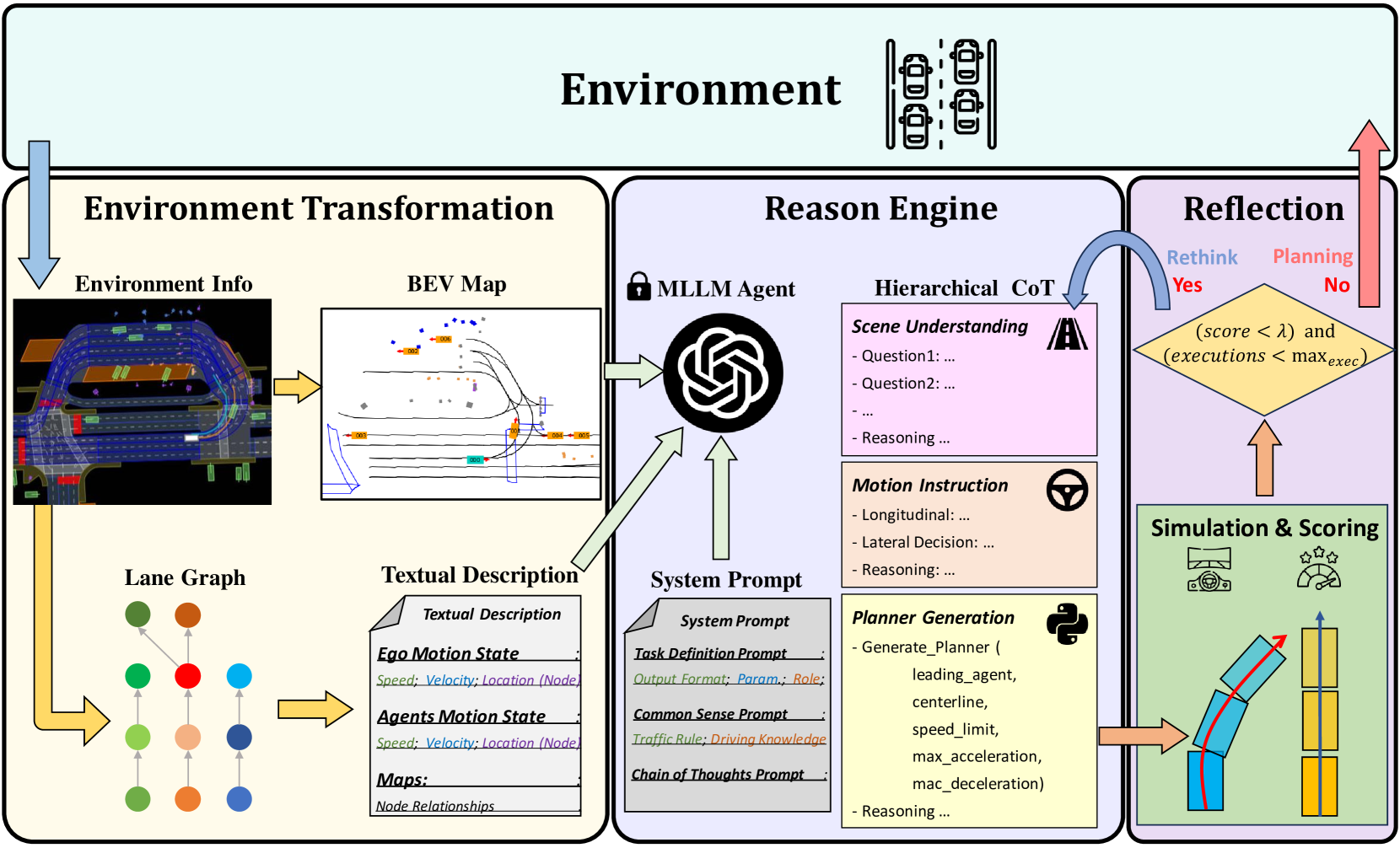

The overall pipeline of PlanAgent, illustrating the flow from Environment Transformation to Reasoning Engine and Reflection.

Evaluation Highlights

Outperforms state-of-the-art methods (PDM-Closed, PlanTF) on the nuPlan Val14 and Test14-hard benchmarks in closed-loop settings
Achieves superior scores in reactive and non-reactive tests compared to both rule-based and learning-based baselines
Requires only one-third of the token count for textual description compared to existing LLM-based SOTA methods due to efficient lane-graph representation

Breakthrough Assessment

8/10

Significantly advances LLM applications in autonomous driving by moving from open-loop trajectory prediction to closed-loop planner code generation with verification, addressing the critical safety/stability gap.

⚙️ Technical Details

Problem Definition

Setting: Mid-to-mid closed-loop vehicle motion planning using perception outputs and HD maps

Inputs: Recorded real-world perception results (agents, obstacles) and HD Map data

Outputs: Python code instantiated with specific parameters (speed limit, acceleration, etc.) to control an IDM planner

Pipeline Flow

Environment Transformation (Perception -> Prompts)
Reasoning Engine (Prompts -> Planner Code)
Reflection (Code -> Simulation -> Verification)

System Modules

Environment Transformation

Extracts multi-modal info and converts to efficient prompts

Model or implementation: Deterministic algorithm (not a neural network)

Reasoning Engine

Performs hierarchical reasoning to generate planner code

Model or implementation: GPT-4 (implied MLLM, specific version not explicitly named in text but standard for such agents)

Reflection

Verifies generated planner via simulation to filter unsafe actions

Model or implementation: Simulation Engine + Scoring Function

Novel Architectural Elements

Hybrid multi-modal prompt construction (Visual BEV + Lane-Graph Text) specifically designed to align with MLLM semantic space while minimizing tokens
Reflection-based feedback loop that integrates short-term simulation scores directly into the agent's iterative reasoning process

Modeling

Base Model: Multi-modal Large Language Model (specifically GPT-4V or similar class, though exact model string not explicitly detailed in text text, typically GPT-4V is the standard for MLLM agents)

Training Method: In-context learning (no fine-tuning)

Compute: Not reported in the paper

Comparison to Prior Work

vs. PDM-Closed: PlanAgent uses MLLM reasoning to adapt parameters for long-tail cases rather than relying on fixed rules/grid search
vs. PlanTF: PlanAgent adds interpretability and common-sense reasoning via language, whereas PlanTF is a black-box neural network
vs. GPT-Driver: PlanAgent uses a hybrid BEV/Lane-Graph input which is more token-efficient than raw coordinate lists used by GPT-Driver
+ 1 more
vs. LMDrive: PlanAgent operates in a mid-to-mid fashion on nuPlan (real data), whereas LMDrive is closed-loop end-to-end in CARLA (simulator) [not cited in paper as direct baseline comparison, but conceptually related]

Limitations

Reliance on the inference speed and availability of the underlying MLLM (latency concerns for real-time driving)
Reflection module adds computational overhead due to iterative simulation
Performance depends heavily on the quality of the upstream perception and map data

Reproducibility

Code is stated to be 'soon released'. No specific URL provided in the text. Prompts and specific hyperparameters for the Reflection module (lambda, max_exec) are described conceptually but exact values are not listed in the main text.

📊 Experiments & Results

Evaluation Setup

Closed-loop simulation on the nuPlan benchmark

Benchmarks:

nuPlan Val14 (Common scenario planning)
nuPlan Test14-hard (Long-tailed/Hard scenario planning)

Metrics:

OLA (Open Loop Score)
NR-CLS (Non-Reactive Closed Loop Score)
R-CLS (Reactive Closed Loop Score)
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
PlanAgent demonstrates superior performance in closed-loop settings compared to baselines, particularly highlighting its ability to generalize.
nuPlan Val14	NR-CLS (Non-Reactive Closed Loop Score)	92.0	94.2	+2.2
nuPlan Test14-hard	R-CLS (Reactive Closed Loop Score)	86.3	89.1	+2.8
Token Usage Analysis	Token Count	Not explicitly quantified but described as 'excessive'	1/3 of baseline	-66%

Main Takeaways

PlanAgent achieves state-of-the-art performance on both Val14 and Test14-hard nuPlan benchmarks, proving effectiveness in common and long-tail scenarios.
The lane-graph-based textual description significantly reduces token usage (by ~66%) compared to raw coordinate approaches, enabling more efficient MLLM context usage.
The Reflection module is critical for safety; filtering out unreasonable planners via simulation reduces the uncertainty inherent in LLM generation.

📚 Prerequisite Knowledge

Prerequisites

Autonomous driving motion planning basics
Large Language Models (in-context learning, CoT)
Intelligent Driver Model (IDM)

Key Terms

mid-to-mid: A planning approach that takes processed perception data (bounding boxes, maps) as input rather than raw sensor data (end-to-end) or just abstract goals

closed-loop: Evaluation where the ego-vehicle's actions influence future states of the environment and itself, accumulating errors over time

BEV map: Bird's Eye View map—a top-down visual representation of the driving scene including lanes, agents, and obstacles

IDM: Intelligent Driver Model—a mathematical model for simulating traffic flow and driver behavior, used here as the underlying controller

CoT: Chain-of-Thought—a prompting technique encouraging LLMs to break down reasoning into intermediate steps

lane-graph: A graph representation of road networks where lane segments are nodes and connections are edges, used to compactly represent topology

nuPlan: A large-scale dataset and benchmark for autonomous driving planning focusing on closed-loop evaluation

long-tailed scenarios: Rare, complex, or edge-case driving situations (e.g., dense construction zones, erratic pedestrians) not covered by standard rules

SDE: State Dropout Encoder—a technique used in baselines like PlanTF to improve robustness

MLLM: Multi-modal Large Language Model—an AI model capable of processing and reasoning across multiple modalities, such as text and images
