ETPNav: Evolving Topological Planning for Vision-Language Navigation in Continuous Environments

📝 Paper Summary

Vision-Language Navigation (VLN) Continuous Control Topological Mapping

ETPNav enables robust continuous navigation by building an online topological map from depth-predicted waypoints for global planning, paired with a trial-and-error controller to escape obstacles.

Core Problem

Continuous navigation lacks the pre-defined graphs of discrete VLN, making long-range planning difficult, while standard controllers frequently get stuck in obstacles when sliding is forbidden.

Why it matters:

Directly predicting low-level actions is brittle for long-horizon tasks, leading to poor success rates compared to discrete navigation
Local waypoint approaches lack global context for backtracking or correcting errors
Real-world robots and challenging simulators (RxR-CE) forbid 'sliding' along walls, causing navigation failures if the controller cannot handle collisions

Concrete Example: In a 'sliding-forbidden' environment, if an agent grazes a table while moving forward, a standard controller halts and fails. ETPNav's controller detects the deadlock, rotates to find a clear path, and resumes, preventing episode failure.

Key Novelty

Online Evolving Topological Planning with Obstacle Recovery

Constructs a topological graph on-the-fly by predicting 'ghost nodes' (reachable but unvisited waypoints) from depth images, organizing them into a map without prior environment knowledge
Decouples navigation into high-level graph planning (selecting a remote ghost node) and low-level control (robustly reaching it)
Introduces a 'Tryout' heuristic controller that actively detects collision deadlocks and rotates to escape them

Architecture

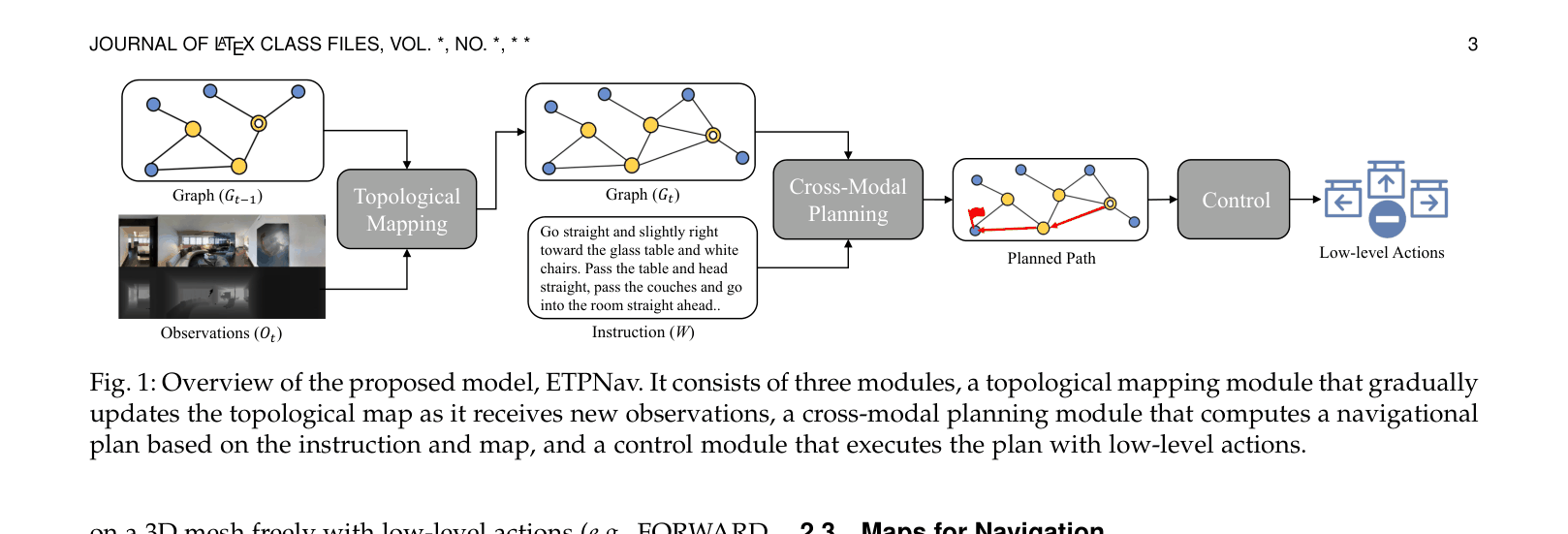

The hierarchical framework of ETPNav, showing the interaction between Mapping, Planning, and Control modules during an episode.

Evaluation Highlights

+13% Success Rate (SR) improvement over RecBERT on R2R-CE Val-Unseen split
+25.99% SR improvement over RecBERT on the challenging RxR-CE Val-Unseen split (where sliding is forbidden)
System based on this algorithm won the CVPR 2022 RxR-Habitat Challenge, doubling the SDTW score of the second-best model

Breakthrough Assessment

8/10

Significant performance jump on the harder RxR-CE benchmark. Effectively bridges the gap between discrete graph-based planning and continuous control via online mapping.

⚙️ Technical Details

Problem Definition

Setting: Vision-Language Navigation in Continuous Environments (VLN-CE). Agent navigates 3D mesh using low-level actions (FORWARD, ROTATE) to reach a target.

Inputs: Natural language instruction W, Panoramic RGB-D observations O_t

Outputs: Sequence of low-level actions (e.g., FORWARD 0.25m, ROTATE 15 deg)

Pipeline Flow

Observation Processing (RGB + Depth encoding)
Topological Mapping (Waypoint Prediction -> Graph Update)
Cross-Modal Planning (Instruction + Graph -> Goal Node)
Control (Path Execution -> Obstacle Avoidance)

System Modules

Waypoint Predictor (Topological Mapping)

Predict navigable candidates in local space from depth images

Model or implementation: Transformer (2-layer) + MLP

Graph Updater (Topological Mapping)

Integrate new waypoints into the global topological graph

Model or implementation: Heuristic (Threshold-based localization)

Cross-Modal Planner

Select a long-term goal node from the graph based on instruction

Model or implementation: LXMERT-style Transformer (4 layers)

Controller (RF + Tryout)

Execute low-level actions to reach the next subgoal

Model or implementation: Heuristic State Machine

Novel Architectural Elements

Online self-organizing topological map constructed from depth-predicted waypoints (no pre-exploration)
Integration of a 'Tryout' heuristic within the modular control loop to handle sliding-forbidden constraints

Modeling

Base Model: Visual: CLIP-ViT-B/32 (RGB) + ResNet-50 (Depth). Text: RoBERTa / LXMERT.

Training Method: Imitation Learning (Student-Forcing) with DAgger-like sampling

Objective Functions:

Purpose: Maximize likelihood of selecting the correct teacher node.

Formally: L = Sum(-log p(a*_t | W, G_t)) where a*_t is the teacher's target node.

Adaptation: Fine-tuning on VLN-CE tasks after pre-training on offline maps

Training Data:

Pre-training: Offline maps derived from Matterport3D discrete graphs
Fine-tuning: Online interaction in Habitat Simulator (R2R-CE / RxR-CE)

Key Hyperparameters:

learning_rate: 1e-5
batch_size: 16
fine_tuning_iterations: 15000
+ 2 more
pre_training_iterations: 100000
max_goal_predictions: 15 (R2R-CE) / 25 (RxR-CE)

Compute: Two NVIDIA RTX 3090 GPUs, ~20 hours pre-training, ~30 hours fine-tuning

Comparison to Prior Work

vs. CWP-RecBERT: ETPNav uses a global topological map for long-range planning vs local waypoint selection
vs. CM2: ETPNav uses a sparse topological graph vs dense metric map [not cited in paper as direct architecture comparison but performance is compared]
vs. Reborn (their prior work): ETPNav uses global planning space vs local memory-based planning

Limitations

Global planning can reduce path fidelity (lower NDTW) compared to local methods because it favors shortest paths over instruction adherence when backtracking
Relies on ground-truth pose access (common in VLN-CE but a limitation for real-world deployment without robust odometry)
Map construction depends on the quality of the depth-based waypoint predictor

Reproducibility

Code: https://github.com/MarSaKi/ETPNav

Code is publicly available. Model leverages pre-trained CLIP and ResNet-50 weights. Uses Habitat Simulator and Matterport3D dataset (standard in field).

📊 Experiments & Results

Evaluation Setup

Navigate to target location in 3D indoor scenes (Habitat Simulator)

Benchmarks:

R2R-CE (Continuous Vision-Language Navigation)
RxR-CE (Multilingual Continuous VLN (Sliding Forbidden))

Metrics:

Success Rate (SR)
Success weighted by Path Length (SPL)
NDTW (Normalized Dynamic Time Warping)
SDTW (Success weighted by DTW)
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
ETPNav outperforms baselines significantly on R2R-CE, especially in Unseen environments, validating the global planning approach.
R2R-CE Val-Unseen	SR	44	57	+13
R2R-CE Val-Unseen	SPL	39	49	+10
On RxR-CE, where obstacle avoidance is critical (sliding forbidden), ETPNav achieves massive gains.
RxR-CE Val-Unseen	SR	27.08	53.07	+25.99
RxR-CE Test-Unseen	SDTW	19.05	41.30	+22.25
Ablation studies confirm the design choices for waypoint prediction inputs.
R2R-CE Val-Unseen	SR	51.66	57.21	+5.55

Main Takeaways

Depth-only waypoint prediction generalizes better than RGB or RGBD for determining navigability, likely because RGB introduces semantic noise irrelevant to physical traversal.
The 'Tryout' controller is crucial for the RxR-CE dataset; without it, performance drops significantly due to agents getting stuck on obstacles (sliding forbidden).
Global topological planning allows the agent to backtrack and make long-range corrections, yielding higher success rates (SR) but sometimes lower path fidelity (NDTW) compared to local methods.
ETPNav provides a robust baseline for continuous navigation, demonstrating that structured map abstraction is viable and beneficial even without pre-exploration.

📚 Prerequisite Knowledge

Prerequisites

Vision-Language Navigation (VLN) basics
Topological Mapping / Graph Search (Dijkstra)
Transformer architectures (Cross-modal attention)

Key Terms

VLN-CE: Vision-Language Navigation in Continuous Environments—navigating free space rather than jumping between pre-defined graph nodes

Ghost Node: A node in the topological map representing a location that has been observed (via waypoint prediction) but not yet visited

SPL: Success weighted by Path Length—a metric balancing success rate and trajectory efficiency

SDTW: Success weighted by Dynamic Time Warping—measures how closely the agent's path follows the reference path, considering spatial overlap

Sliding-Forbidden: A simulation constraint where the agent stops completely upon collision, rather than sliding along the obstacle (harder control setting)

Tryout: A heuristic controller strategy that attempts different headings to untrap the agent after a collision

Waypoint: A candidate location in local space that the agent identifies as navigable
