VisualPRM: An Effective Process Reward Model for Multimodal Reasoning

📝 Paper Summary

Multimodal Reasoning Reward Modeling Test-Time Scaling

VisualPRM enhances multimodal reasoning by using an 8B-parameter critic model trained on 400K automatically annotated reasoning steps to select the best solution paths during inference.

Core Problem

Multimodal Large Language Models (MLLMs) struggle with complex reasoning, and Test-Time Scaling (TTS) is ineffective because existing open-source models make poor critics due to a lack of process supervision data.

Why it matters:

Current open-source MLLMs show only marginal improvements with Best-of-N strategies because they cannot accurately estimate solution quality
There is a lack of benchmarks for evaluating multimodal critic models, making it hard to assess progress in error detection
Proprietary models outperform open-source models significantly in reasoning, creating a capability gap

Concrete Example: When an MLLM generates a multi-step math solution based on an image, it may make a subtle error in step 3. Without a specialized Process Reward Model, standard scoring methods (like self-consistency) might fail to catch this intermediate error, accepting a wrong final answer.

Key Novelty

VisualPRM (Multimodal Process Reward Model)

Constructs a massive dataset (VisualPRM400K) by using Monte Carlo sampling to estimate the 'expected accuracy' of 2 million reasoning steps
Trains a critic model to predict the correctness of each step in a multi-turn chat format, enabling fine-grained quality estimation
Uses this critic to guide Best-of-N inference, selecting solutions with the most valid reasoning steps rather than just checking the final answer

Architecture

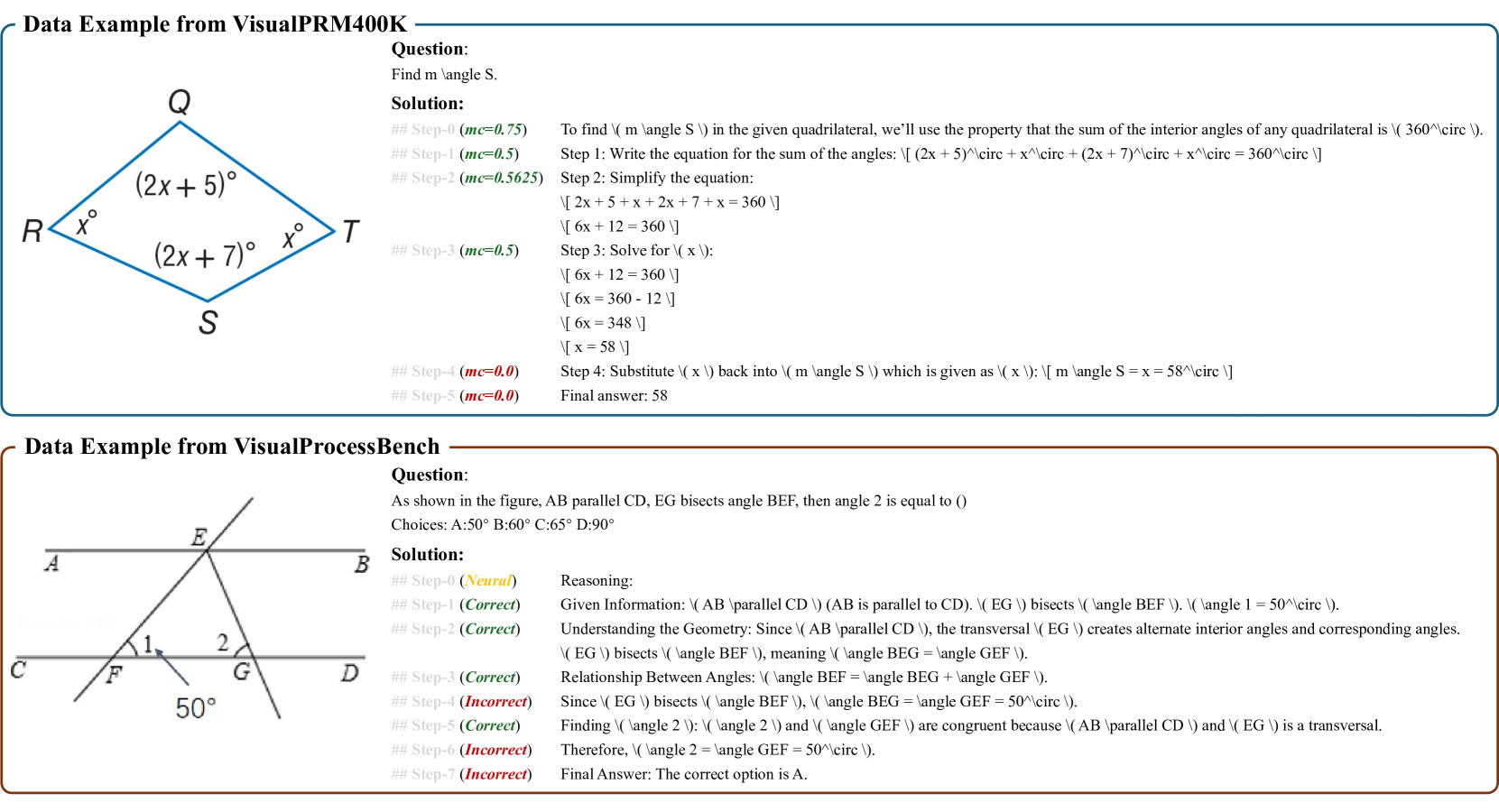

Conceptual illustration of the VisualPRM400K data sample structure and the VisualProcessBench annotation format.

Evaluation Highlights

+5.9 points improvement on InternVL2.5-78B average accuracy across seven multimodal reasoning benchmarks (e.g., MMMU, MathVista) using VisualPRM
+8.4 points improvement on InternVL2.5-8B average accuracy across the same seven benchmarks
+8.0 points improvement on MiniCPM-V2.6 average accuracy, outperforming Outcome Reward Models and Self-Consistency methods

Breakthrough Assessment

8/10

Addresses a critical gap in multimodal reasoning (lack of effective process reward models) with a large-scale dataset, a new benchmark, and significant quantitative gains across multiple model scales.

⚙️ Technical Details

Problem Definition

Setting: Multimodal reasoning tasks where a model generates a step-by-step solution s given an image I and question q.

Inputs: Image I, Question q, Candidate Solutions S = {s^1, ..., s^N}

Outputs: The single best solution s* selected from S based on process scores

Pipeline Flow

Policy Model (Generates N solutions)
VisualPRM (Scores each step of each solution)
Aggregator (Combines step scores into solution scores)
Selector (Outputs solution with highest score)

System Modules

Policy Model

Generate N candidate reasoning paths for a given image and question

Model or implementation: Various MLLMs (e.g., InternVL2.5, MiniCPM-V2.6)

VisualPRM (Critic)

Estimate the correctness probability of each step in the generated solutions

Model or implementation: 8B parameter MLLM (VisualPRM)

Novel Architectural Elements

Application of Process Reward Models to the multimodal domain for Test-Time Scaling

Modeling

Base Model: 8B parameter MLLM (likely InternVL2.5-8B based on context)

Training Method: Supervised Fine-Tuning on Process Data

Objective Functions:

Purpose: Predict the correctness of the current reasoning step.

Formally: Modeled as a multi-turn chat where the model predicts a correctness token (e.g., +, -) for the given step.

Training Data:

VisualPRM400K: 400K samples, 2M steps
Questions from MMPR v1.1
Solutions sampled from InternVL2.5 series
Labels generated via Monte Carlo sampling (16 continuations per step)

Key Hyperparameters:

max_steps: 12 (for data construction)
continuations_per_step: 16 (for MC estimation)

Compute: Not reported in the paper

Comparison to Prior Work

vs. MathShepherd: VisualPRM extends the automatic process supervision pipeline to the multimodal domain (images + text)
vs. PRM800K: VisualPRM relies on automatic MC-based annotations rather than fully human-annotated training data (though benchmark is human-annotated)
vs. Self-Consistency: VisualPRM evaluates the reasoning process quality rather than just outcome consensus, leading to higher performance [not cited in paper as direct architecture comparison, but as baseline]

Limitations

Evaluation cost of Best-of-N is expensive as the policy model must generate N reasoning processes
Correctness annotation relies on Monte Carlo sampling from a model, which may propagate model biases or errors
Evaluation is currently limited to reasoning benchmarks; applicability to general vision-language tasks is less explored

Reproducibility

The paper states model, data, and benchmark are released 'in this page' but the provided text does not contain the URL. Code availability is therefore marked as 'not provided' in metadata. VisualProcessBench data is human-annotated.

📊 Experiments & Results

Evaluation Setup

Best-of-N (BoN) scaling where the policy generates solutions and the critic selects the best one.

Benchmarks:

MMMU (Multidisciplinary Multimodal Understanding)
MathVista (Mathematical Reasoning)
VisualProcessBench (Step-wise Error Detection) [New]
MathVision (Mathematical Reasoning)
DynaMath (Mathematical Reasoning)

Metrics:

Accuracy (Overall or Worst-case depending on benchmark)
Macro F1 (for VisualProcessBench)
Statistical methodology: Not explicitly reported in the paper

Main Takeaways

VisualPRM consistently improves reasoning performance across various model scales (from 2.6B to 78B) and families (Qwen, InternVL, MiniCPM), showing robustness as a general critic.
Process Reward Models (PRMs) outperform both Outcome Reward Models (ORMs) and Self-Consistency (SC) in Best-of-N evaluation settings.
Existing open-source MLLMs struggle significantly with step-wise error detection on VisualProcessBench, highlighting the necessity for specialized critics like VisualPRM.
The automatic data pipeline (VisualPRM400K) effectively supervises the training of strong critic models without requiring expensive human annotation for training data.

📚 Prerequisite Knowledge

Prerequisites

Multimodal Large Language Models (MLLMs)
Reinforcement Learning from Human Feedback (RLHF) concepts
Test-Time Scaling (TTS)

Key Terms

PRM: Process Reward Model—a critic model that scores each individual step of a reasoning chain rather than just the final outcome

MLLM: Multimodal Large Language Model—AI models capable of processing and reasoning with both text and images

BoN: Best-of-N—an evaluation strategy where the model generates N candidate solutions and a critic selects the best one

TTS: Test-Time Scaling—methods to improve model performance during inference (not training) by spending more compute, e.g., generating more candidates

ORM: Outcome Reward Model—a critic model that assigns a single score to the entire completed response

Monte Carlo sampling: A method used here to estimate step correctness by generating multiple future continuations from a step and averaging their final success rates

VisualPRM400K: The dataset constructed in this paper containing ~400K multimodal problems with step-level correctness labels

VisualProcessBench: The benchmark proposed in this paper containing human-annotated step-wise correctness labels for evaluation
