A Knowledge Graph and Deep Learning-Based Semantic Recommendation Database System for Advertisement Retrieval and Personalization

📝 Paper Summary

Recommendation Systems Knowledge Graph Reasoning Vector Database Retrieval

KGSR-ADS integrates a heterogeneous knowledge graph with LLM-based semantic embeddings and vector database indexing to improve the accuracy and speed of personalized advertisement retrieval.

Core Problem

Traditional ad retrieval relies on keyword matching or simple collaborative filtering, failing to capture complex semantic relationships between diverse entities (users, products, ads) and struggling with real-time scalability.

Why it matters:

Explosion of unstructured ad content (text, logs) demands understanding deep semantic relevance beyond simple co-occurrence
Existing systems struggle to balance high-precision semantic reasoning with low-latency retrieval required for real-time bidding and personalization
Heterogeneous data types (user interests, product categories, ad creatives) are often modeled in isolation rather than as a connected semantic graph

Concrete Example: A user interested in 'hiking' might not be matched with a 'waterproof jacket' ad if the system relies only on exact keywords. KGSR-ADS uses the knowledge graph to link 'hiking' -> 'outdoor activity' -> 'waterproof jacket', enabling the recommendation even without direct interaction history.

Key Novelty

Knowledge Graph Semantic Recommendation with Database Optimization (KGSR-ADS)

Combines structured reasoning (Ad-Knowledge Graph) with deep textual understanding (LLM embeddings) to capture both explicit relations and implicit semantic context
Integrates a dedicated vector database layer (e.g., FAISS/Milvus) directly into the recommendation pipeline to accelerate retrieval of these complex fused embeddings

Architecture

The overall framework diagram showing the data flow from the Knowledge Graph Layer through Semantic Embedding and GNN layers to the Database Retrieval Layer.

Evaluation Highlights

Achieves 0.512 Precision@10, outperforming the strongest baseline GraphRec by 5.7%
Reduces Average Response Latency by 23.9% (34.7 ms vs 45.6 ms for GraphRec) via optimized vector database indexing
Improves NDCG@10 to 0.509 (+6.3% over GraphRec), indicating superior ranking of relevant advertisements

Breakthrough Assessment

7/10

Solid engineering integration of KGs, LLMs, and vector databases for ad tech. Performance gains are significant, though the architectural components (TransE, GAT, FAISS) are individually standard.

⚙️ Technical Details

Problem Definition

Setting: Personalized Click-Through Rate (CTR) prediction and ranking

Inputs: User set U, Advertisement set A, Interaction matrix R, and heterogeneous Ad-Knowledge Graph G

Outputs: Predicted personalized click probability r_hat_ij for user u_i and ad a_j

Pipeline Flow

Data Preprocessing & Graph Construction
Group: Representation Learning (Ad-KG Layer + Semantic Embedding Layer)
GNN + Attention Layer (Fusion & Reasoning)
Database Optimization & Retrieval Layer (Indexing & Search)

System Modules

Ad-KG Layer (Representation Learning)

Encode structured relationships (user-click-ad, ad-promotes-product) into vector representations

Model or implementation: TransE

Semantic Embedding Layer (Representation Learning)

Encode unstructured text (ad descriptions, user interests) into contextual embeddings

Model or implementation: Transformer-based Contextual Encoder (e.g., utilizing GPT/LLaMA/BERT concepts)

GNN + Attention Layer

Propagate information across the heterogeneous graph to infer user preferences

Model or implementation: 3-layer Graph Attention Network (GAT)

Database Optimization & Retrieval Layer

Store and retrieve embeddings efficiently for real-time recommendation

Model or implementation: Vector Database (FAISS/Milvus concepts)

Novel Architectural Elements

Unified fusing mechanism connecting symbolic KG embeddings (TransE) with dense semantic embeddings (Transformer) before GNN propagation
Integration of a dedicated Vector Database layer as a core architectural component for retrieval acceleration, rather than just an external tool

Modeling

Base Model: Custom GNN architecture with Transformer-based encoders

Training Method: End-to-end supervised learning with multi-task loss

Objective Functions:

Purpose: Optimize recommendation accuracy.

Formally: Binary cross-entropy loss L_rec for click prediction
Purpose: Preserve knowledge graph structure.

Formally: Margin-based ranking loss L_KG = sum(max(0, gamma + ||h+r-t|| - ||h'+r-t'||))
Purpose: Align semantic and structural spaces.

Formally: Alignment loss L_align

Trainable Parameters: GNN weights, Attention heads, Fusion projection matrices, TransE embeddings

Training Data:

Dataset split: 70% training, 15% validation, 15% testing
Derived from real-world ad platforms + public datasets (Avazu, Criteo)

Key Hyperparameters:

learning_rate: 1e-4
batch_size: 512
epochs: 100
+ 4 more
optimizer: AdamW
GAT_layers: 3
hidden_dimensions: 128
word_embedding_init: BERT-base

Compute: NVIDIA RTX 4090 GPU (24 GB memory)

Comparison to Prior Work

vs. GraphRec: KGSR-ADS incorporates rich semantic text embeddings from LLMs and optimizes retrieval speed via vector databases
vs. BERT4Rec: KGSR-ADS uses a heterogeneous knowledge graph to model structured entity relations beyond just sequence history
vs. DeepFM: KGSR-ADS leverages explicit graph reasoning and attention rather than just feature interaction crossing

Limitations

Lack of multi-modal support (visual/audio data not utilized)
Does not deeply explore specific vector database (Milvus) optimization parameters
Relies partly on proprietary data, limiting direct reproducibility
No detailed ablation study reported for the specific contribution of the vector database layer to accuracy (only latency)

Reproducibility

Code availability is not provided. Dataset is a proprietary mix of real-world platform data and public datasets (Avazu, Criteo), making exact replication difficult without access to the private portion. Hyperparameters are listed.

📊 Experiments & Results

Evaluation Setup

Click-through rate prediction and top-K recommendation on a large-scale ad dataset

Benchmarks:

Constructed Multi-source Ad Dataset (CTR Prediction / Top-K Recommendation) [New]

Metrics:

Precision@10
Recall@10
NDCG@10
MRR
Average Response Latency (ms)
Statistical methodology: Not explicitly reported in the paper

Key Results

Benchmark	Metric	Baseline	This Paper	Δ
KGSR-ADS consistently outperforms all baselines in ranking accuracy metrics.
Ad Dataset	Precision@10	0.493	0.512	+0.019
Ad Dataset	Recall@10	0.438	0.462	+0.024
Ad Dataset	NDCG@10	0.479	0.509	+0.030
Ad Dataset	MRR	0.498	0.523	+0.025
System efficiency results demonstrate significant latency reduction due to the database optimization layer.
Ad Dataset	Average Response Latency (ms)	45.6	34.7	-10.9

Experiment Figures

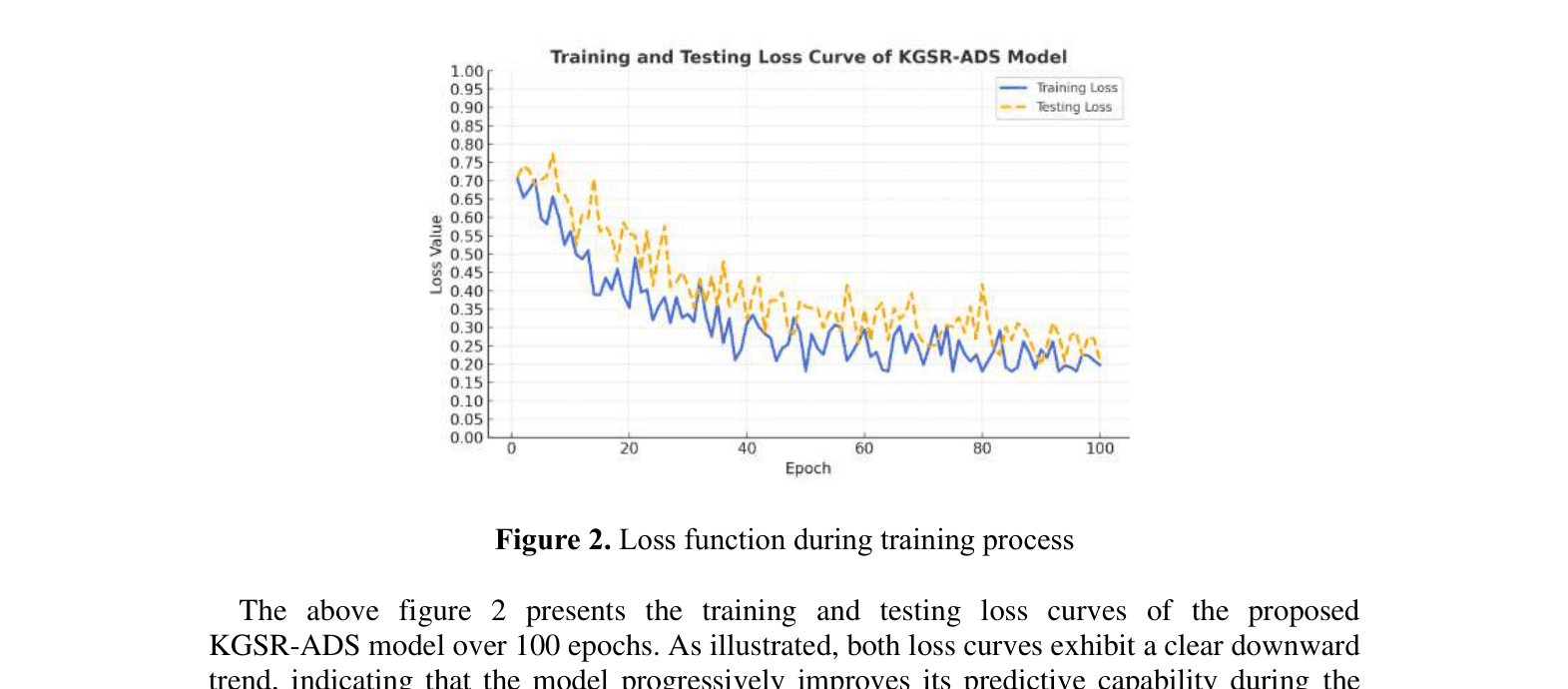

Training and testing loss curves over 100 epochs.

Main Takeaways

Integrating Knowledge Graphs with Deep Learning significantly improves semantic understanding, leading to better ranking metrics (Precision, NDCG)
The use of optimized vector databases (FAISS/Milvus) is critical for deploying complex semantic models in real-time scenarios, drastically cutting latency
The model shows stable convergence without severe overfitting, as evidenced by loss curves
KGSR-ADS effectively handles the heterogeneity of ad data (users, products, text) better than simpler baselines like CF or DeepFM

📚 Prerequisite Knowledge

Prerequisites

Knowledge Graph Embeddings (TransE)
Graph Neural Networks (GAT)
Transformer-based Text Encoders
Vector Similarity Search (ANN)

Key Terms

Ad-KG: Advertisement Knowledge Graph—a structured network linking users, ads, products, and interest tags

TransE: A knowledge graph embedding method that models relationships as translations in vector space (h + r ≈ t)

GNN: Graph Neural Network—a deep learning model that processes data represented as graphs

ANN: Approximate Nearest Neighbor—algorithms used in vector databases to find similar items efficiently without checking every single one

FAISS/Milvus: Libraries/Systems for efficient similarity search and clustering of dense vectors

NDCG: Normalized Discounted Cumulative Gain—a measure of ranking quality that gives more weight to correct items at the top of the list

MRR: Mean Reciprocal Rank—a statistical measure for evaluating any process that produces a list of possible responses to a sample of queries

GAT: Graph Attention Network—a type of GNN that uses attention mechanisms to weigh the importance of different neighbors
